EB30CS2R-MN

EB30CS2R-MN Dual emSFP Coaxial Dual Receiver Specifications:

• Standards Compliance:
  • SMPTE 424M, 292M, and 259M
  • Supports DVB-ASI at 270 Mb/s
• Connectors:
  • DIN 1.0/2.3 (75Ω)
• Receiver Equalizer Performance:
  • Typical equalized length of Belden 1694A cable:
    • 120 meters at 2.97 Gbps
    • 140 meters at 1.485 Gbps
    • 400 meters at 270 Mb/s
• Signal Support:
  • Handles video pathological patterns for SD-SDI, HD-SDI, and 3G-SDI
• Control and Monitoring:
  • Accessible via serial interface, providing:
    • Module information
    • Loss of signal status
• Power and Environmental Specifications:
  • Single supply voltage: +3.3V
  • Operating temperature range: 0°C to +70°C
• Physical Dimensions:
  • 58.5 mm x 13.4 mm x 8.6 mm SFP package
• Additional Features:
  • Hot-pluggable design for easy system upgrades and maintenance
  • Pb-free and RoHS compliant

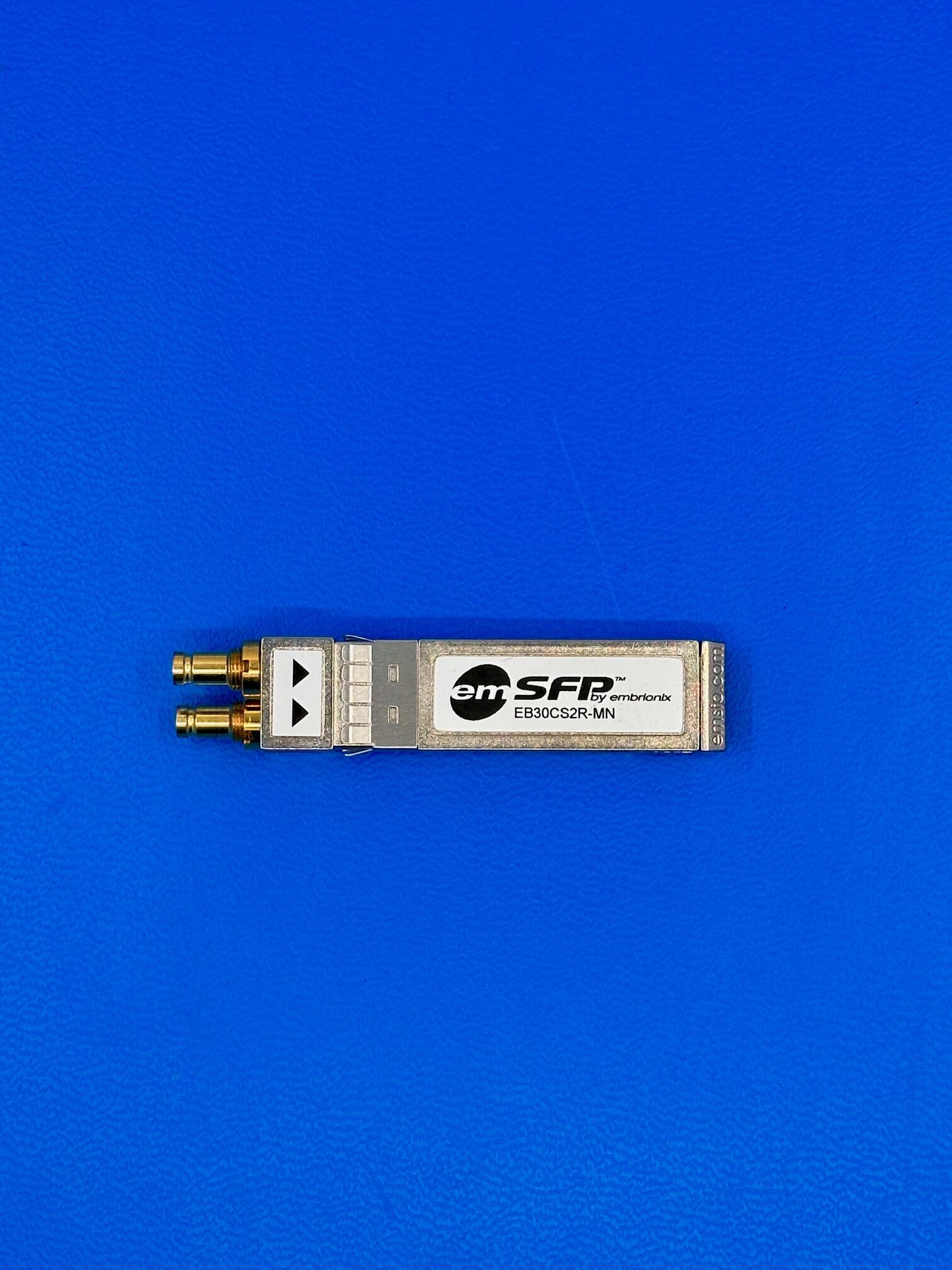

The EB30CS2R-MN from Embrionix is a high-performance electrical emSFP™ dual receiver module designed specifically for professional broadcast and video transport applications. This module is fully compliant with SMPTE standards, including 424M, 292M, 344M, and 259M, ensuring compatibility with a wide range of industry-standard SDI signals. Furthermore, it supports DVB-ASI at 270 Mb/s, making it ideal for handling compressed video streams. Thanks to its advanced equalization capabilities, the module effectively compensates for signal degradation over extended cable runs, allowing for 120 meters of 3G-SDI transmission, 140 meters of HD-SDI, and an impressive 400 meters of SD-SDI over Belden 1694A coaxial cable. Additionally, its dual DIN 1.0/2.3 connectors offer robust and secure connections, further enhancing its reliability in mission-critical environments.

The EB30CS2R-MN is hot-pluggable by design, insuring seamless installation and upgrades without requiring a system reboot, thus minimizing downtime.  Finally, with its Pb-free and RoHS compliance, as well as an extended operating temperature range of 0°C to +70°C, the EB30CS2R-MN is not only environmentally friendly but also exceptionally durable, making it a reliable choice for demanding broadcast and production environments.
