EB30CS2T-LN

EB30CS2T-LN Dual Coaxial transmitter

Standards Compliance:

• • SMPTE 424M, 292M, and 259M
  • Supports DVB-ASI at 270 Mb/s
• Connectors:
  • DIN 1.0/2.3 (75Ω)
• Transmitter Features:
  • Integrated cable drivers with two selectable slew rates to ensure compliance with SMPTE standards
• Signal Support:
  • Handles video pathological patterns for SD-SDI, HD-SDI, and 3G-SDI
• Control and Monitoring:
  • Accessible via serial interface, providing:
    • Output slew rate selection (SD or HD/3G)
    • Module information
• Power and Environmental Specifications:
  • Low power consumption: typical 351 mW
  • Single supply voltage: +3.3V
  • Operating temperature range: 0°C to +70°C
• Physical Dimensions:
  • 58.5 mm x 13.4 mm x 8.6 mm SFP package
• Additional Features:
  • Hot-pluggable design for easy system upgrades and maintenance
  • Pb-free and RoHS compliant

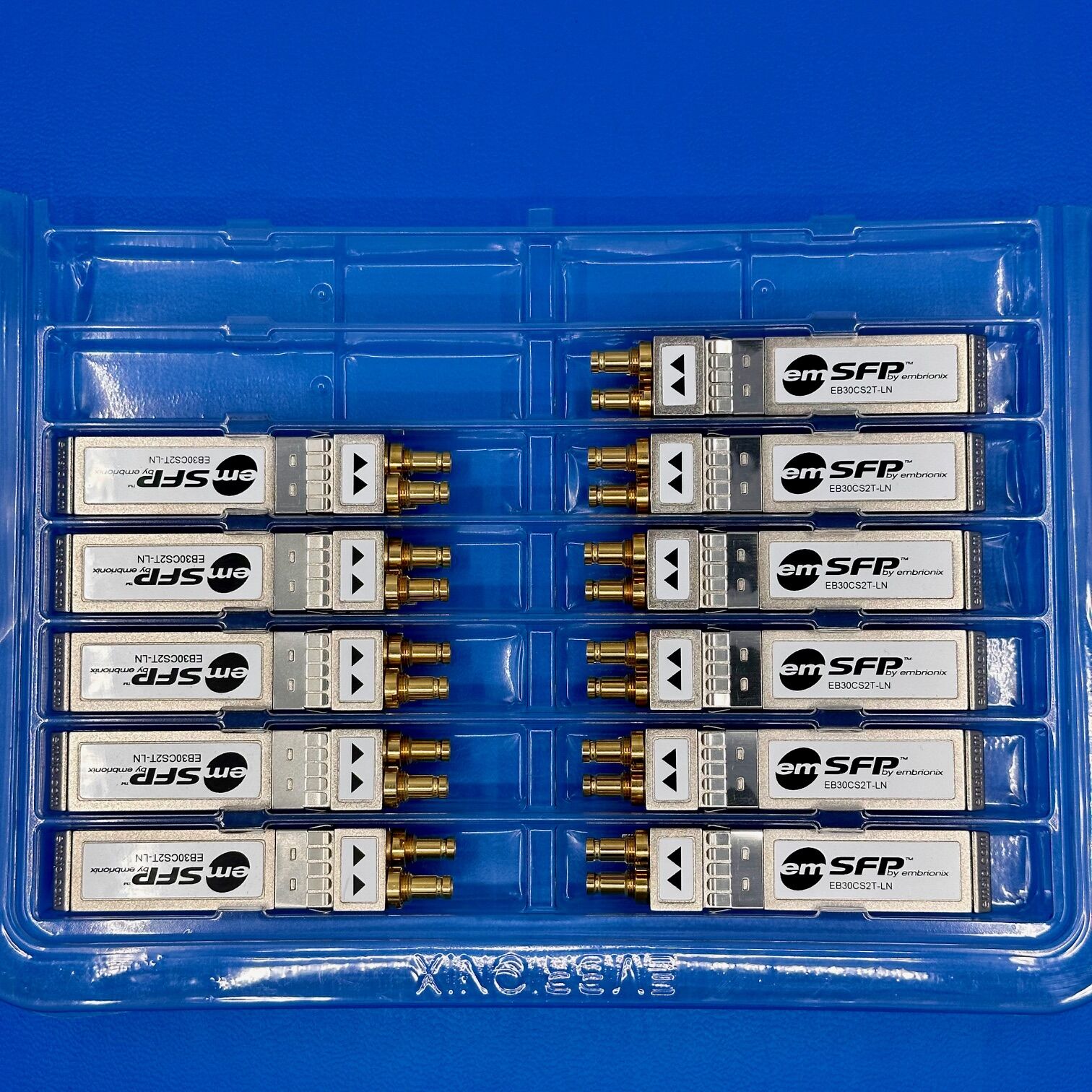

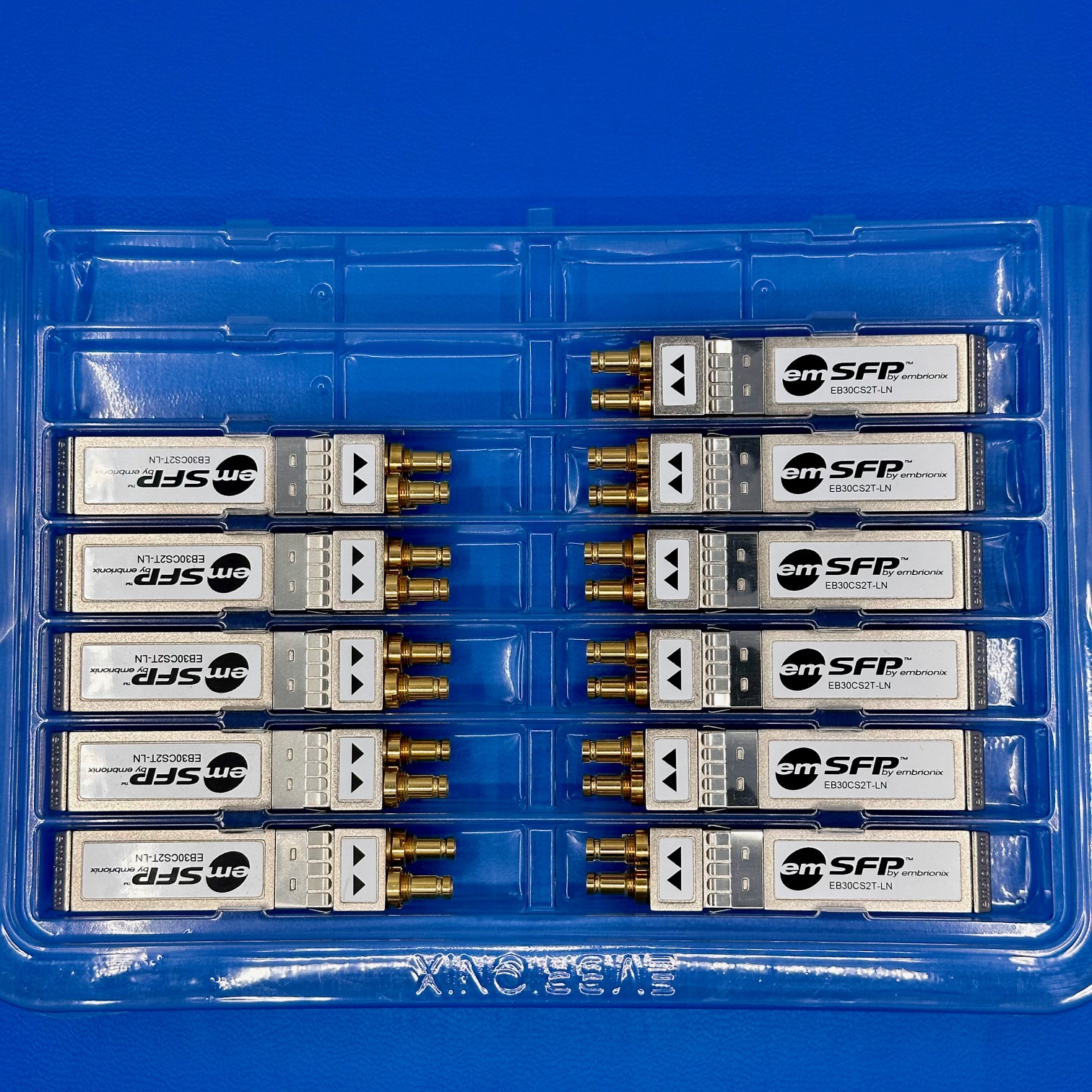

The EB30CS2T-LN from Embrionix is a high-performance dual SDI transmitter emSFP™ module, designed to efficiently transmit 3G/HD/SD-SDI and DVB-ASI signals over 75Ω coaxial cables via DIN 1.0/2.3 connectors. Not only does it comply with SMPTE standards, including 424M, 292M, and 259M, but it also ensures robust signal integrity for professional broadcast applications. Furthermore, the module features integrated cable drivers with selectable slew rates, allowing users to optimize signal performance for different transmission requirements. As a result, it effectively maintains signal quality across varying cable lengths while supporting video pathological patterns for SD-SDI, HD-SDI, and 3G-SDI. Additionally, its hot-pluggable design allows for seamless integration into live systems, eliminating downtime during maintenance or upgrades.

Beyond its exceptional signal transmission capabilities, the EB30CS2T-LN is engineered with energy efficiency in mind, consuming just 351 mW, which significantly reduces power demands and heat generation. Moreover, its serial interface provides access to critical monitoring functions, such as output slew rate selection and real-time module diagnostics, ensuring precise control and operational flexibility. In addition to being Pb-free and RoHS compliant, the module is built to withstand extreme environmental conditions, with an impressive operating temperature range of 0°C to +70°C. Thanks to its compact SFP form factor (58.5 mm x 13.4 mm x 8.6 mm), it seamlessly integrates into a variety of broadcast infrastructures, including video routers, distribution amplifiers, and processing cards. Altogether, these features make the EB30CS2T-LN an ideal solution for demanding broadcast and media applications, ensuring reliability, flexibility, and long-term performance.
