EB30HD2R-MN

EB30HD2R-MN Dual Coaxial Receiver Specifications:

• Standards Compliance:
  • SMPTE 424M, 292M, and 259M
  • Supports DVB-ASI at 270 Mb/s
• Connectors:
  • HD-BNC (75Ω)
• Receiver Equalizer Performance:
  • Typical equalized length of Belden 1694A cable:
    • 120 meters at 2.97 Gbps
    • 140 meters at 1.485 Gbps
    • 400 meters at 270 Mb/s
• Control and Monitoring:
  • Accessible via serial interface, providing:
    • Module information
    • Loss of signal status
• Power and Environmental Specifications:
  • Single supply voltage: +3.3V
  • Operating temperature range: -40°C to 80°C
• Physical Dimensions:
  • 58.5 mm x 13.4 mm x 8.6 mm SFP package
• Additional Features:
  • Hot-pluggable design for easy system upgrades and maintenance
  • Pb-free and RoHS compliant

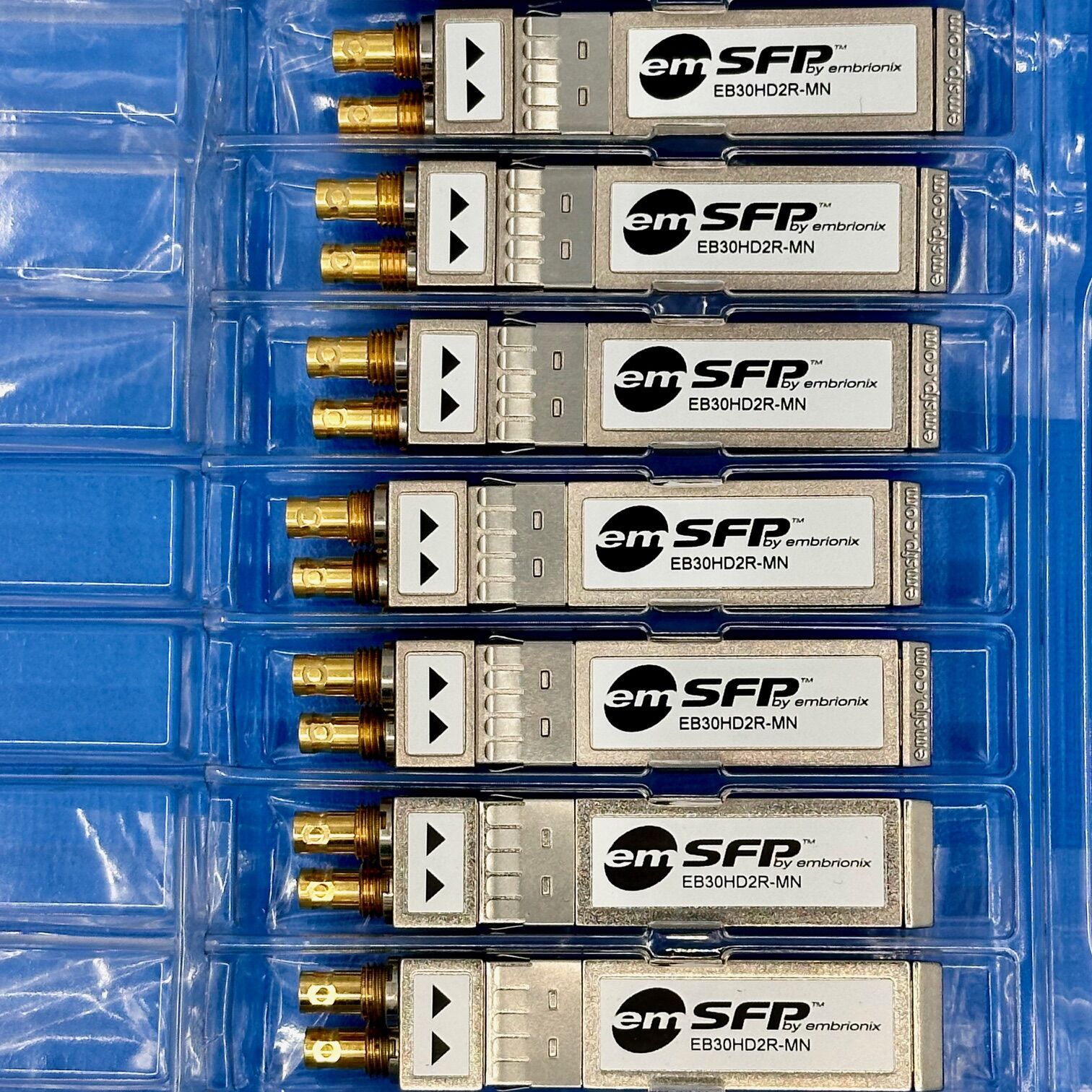

The EB30HD2R-MN from Embrionix is a medium-reach coaxial video SFP (emSFP) module designed to receive two SDI signals, including 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI, over 75-ohm coaxial cables via HD-BNC connectors. Notably, it supports video pathological patterns at all specified rates, ensuring reliable performance even under challenging signal conditions. The integrated equalizer features DC restoration to compensate for the DC content of SMPTE pathological test patterns, thereby maintaining signal integrity. Moreover, the module is SMPTE compliant, adhering to standards such as ST-424, ST-292, and ST-259, which guarantees compatibility with a wide range of broadcast equipment.

In addition to its robust signal reception capabilities, the EB30HD2R-MN offers advanced monitoring and diagnostics through a serial communication interface. This feature allows for real-time access to module information, enhancing system management and troubleshooting efficiency. Furthermore, the emSFP’s hot-pluggable design facilitates easy installation and removal without interrupting system operation, thus providing flexibility in dynamic broadcast environments. Additionally, the module’s low power consumption contributes to energy efficiency, which is a critical consideration in large-scale broadcast installations.
