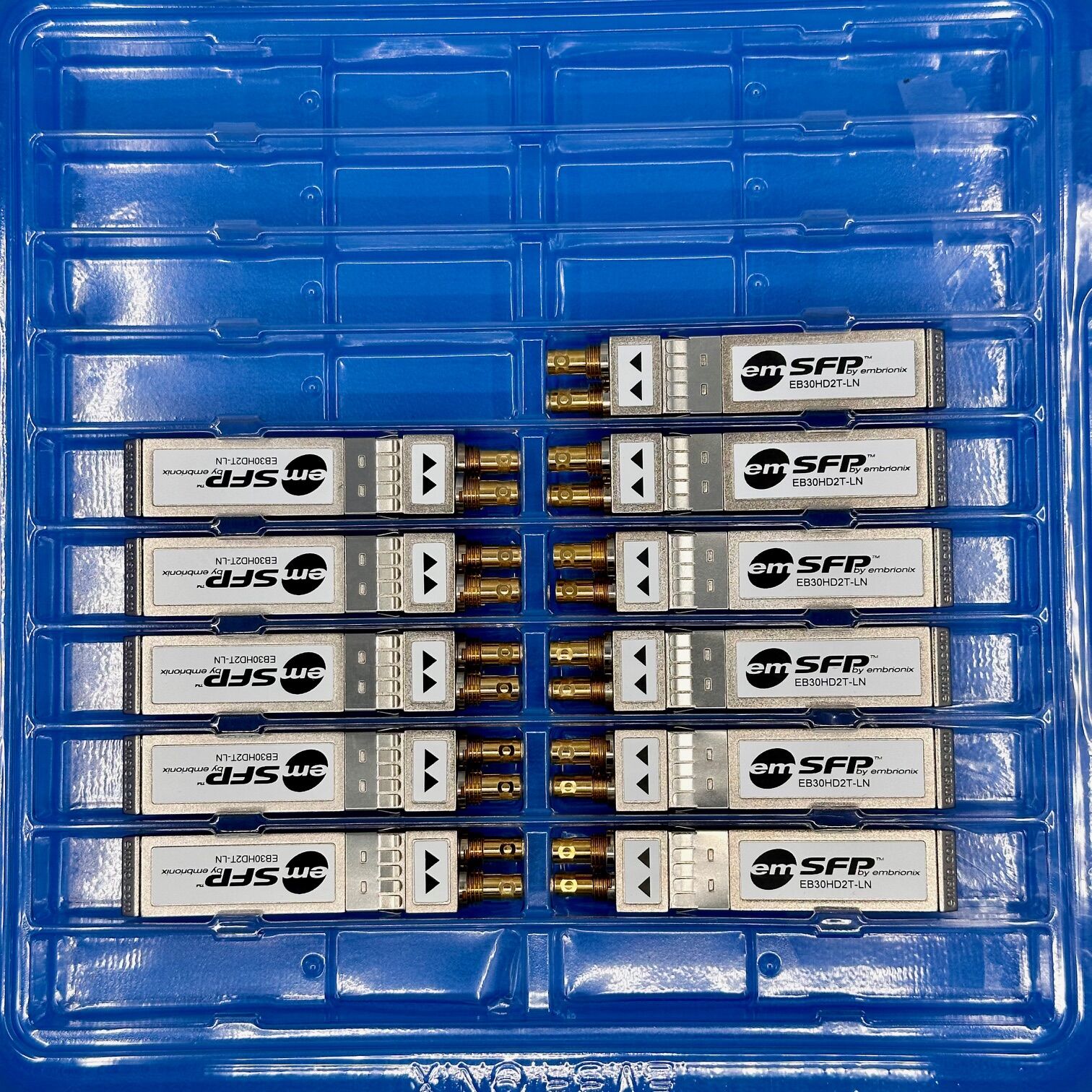

EB30HD2T-LN

EB30HD2T-LN Dual Coax SDI Transmitter Specifications:

Standards Compliance:

• • SMPTE 424M, 292M, and 259M
  • Supports DVB-ASI at 270 Mb/s
• Connectors:
  • HD-BNC (75Ω)
• Transmitter Features:
  • Integrated cable drivers with two selectable slew rates to ensure compliance with SMPTE standards
• Signal Support:
  • Handles video pathological patterns for SD-SDI, HD-SDI, and 3G-SDI
• Control and Monitoring:
  • Accessible via serial interface, providing:
    • Output slew rate selection (SD or HD/3G)
    • Module information
• Power and Environmental Specifications:
  • Single supply voltage: +3.3V
  • Operating temperature range: -40°C to 80°C
• Physical Dimensions:
  • 58.5 mm x 13.4 mm x 8.6 mm SFP package
• Additional Features:
  • Hot-pluggable design for easy system upgrades and maintenance
  • Pb-free and RoHS compliant

The EB30HD2T-LN from Embrionix is a high-performance dual SDI transmitter emSFP™ module designed to deliver 3G/HD/SD-SDI and DVB-ASI signals over 75Ω coaxial cables using HD-BNC connectors. Not only does it comply with SMPTE standards, including 424M, 292M, and 259M, but it also ensures exceptional signal integrity for professional broadcast and media applications. Furthermore, the module incorporates integrated cable drivers with two selectable slew rates, allowing users to fine-tune signal transmission based on their specific requirements. As a result, it effectively maintains signal quality and minimizes degradation over longer cable distances. Additionally, the hot-pluggable design allows for seamless system integration, enabling quick replacements or upgrades without requiring a system reboot, which significantly reduces downtime.

Beyond its robust signal transmission capabilities, the EB30HD2T-LN is engineered for low power consumption, operating at a mere 351 mW, making it an energy-efficient choice for high-density broadcast installations. Moreover, its serial interface offers advanced monitoring and control options, including output slew rate selection and real-time module diagnostics, ensuring operational flexibility and ease of troubleshooting. In addition to its Pb-free and RoHS compliance, the module is built to withstand harsh environmental conditions, with an extended operating temperature range of -40°C to 80°C, ensuring reliability even in extreme scenarios. Thanks to its compact SFP form factor (58.5 mm x 13.4 mm x 8.6 mm), it integrates seamlessly into various broadcast infrastructure systems, such as video routers, distribution amplifiers, and processing cards. Altogether, the EB30HD2T-LN provides a powerful, flexible, and energy-efficient solution for professional broadcast transmission applications.
