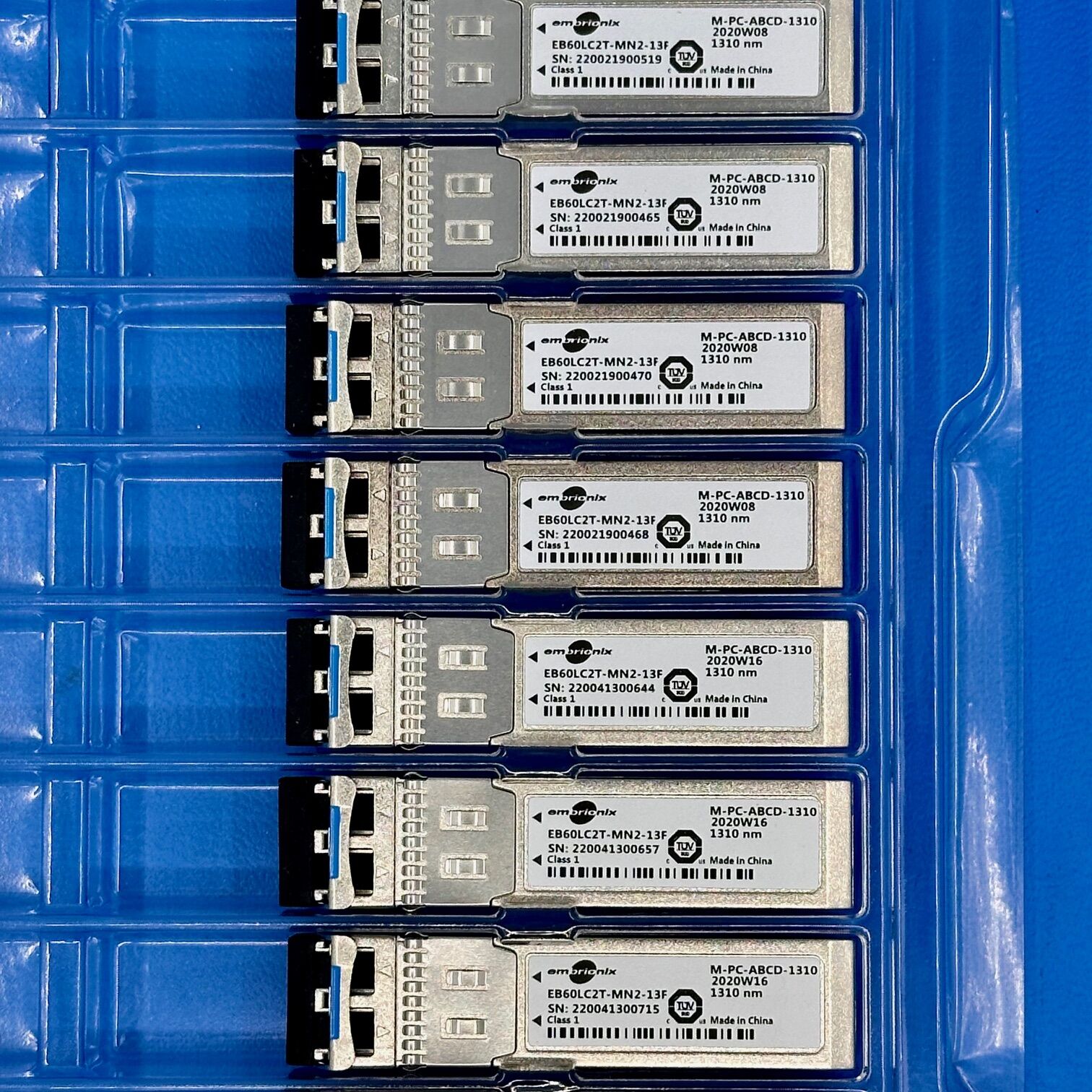

EB60LC2T-MN2-13F

EB60LC2T-MN2-13F Dual SDI to Optical Transmitter Specifications:

Supported Standards:

• • 3G-SDI
  • HD-SDI
  • SD-SDI
• Optical Characteristics:
  • Wavelength: 1310 nm (FP laser)
  • Transmission Medium: Single-mode fiber (9 µm/125 µm)
  • Connector Type: LC
• Performance:
  • Supports video pathological patterns at all specified rates
  • Superior link budget performance compared to ST297 specification
• Control and Monitoring:
  • Accessible via serial communication interface, providing:
    • Optical power monitoring
    • Voltage and temperature monitoring
    • Module information
• Physical and Environmental Specifications:
  • Hot-pluggable and hot-removable with cable/fiber plug-in
  • Operating temperature range: -40°C to 85°C
  • Single supply voltage: +3.3V
  • Dimensions: 58.5 mm x 13.4 mm x 8.6 mm (SFP/SFP+ package)
• Compliance:
  • SMPTE standards: ST-424, ST-292, ST-259, ST-297
  • Pb-free and RoHS compliant

The EB60LC2T-MN2-13F from Embrionix is a high-performance dual-channel optical transmitter emSFP™ module, specifically designed to deliver 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI signals over single-mode fiber. Not only does it adhere to SMPTE standards such as ST-424, ST-292, ST-259, and ST-297, but it also provides exceptional signal integrity and reliability, making it ideal for professional broadcast and video transport applications. Furthermore, its 1310 nm FP laser ensures efficient long-distance transmission, while the LC fiber connectors offer a secure and robust connection. Additionally, the module fully supports video pathological patterns, which guarantees reliable operation even in the most demanding environments. With its superior link budget performance, this transmitter surpasses the standard ST297 specification, ensuring minimal signal loss and optimal performance over extended fiber runs.

Beyond its outstanding transmission capabilities, the EB60LC2T-MN2-13F is engineered for enhanced monitoring and control, featuring a serial communication interface that allows users to track optical power, voltage, and temperature in real time. Moreover, its hot-pluggable and hot-removable design ensures seamless integration and effortless maintenance, reducing downtime during system upgrades or replacements. In addition to its low power consumption and wide operating temperature range (-40°C to 85°C), this module is Pb-free and RoHS compliant, making it both environmentally friendly and highly durable. Thanks to its compact SFP form factor (58.5 mm x 13.4 mm x 8.6 mm), the EB60LC2T-MN2-13F is a perfect fit for high-density broadcast infrastructures, including video routers, distribution amplifiers, and processing cards. Altogether, this module delivers a powerful, flexible, and future-proof solution for professional optical video transmission applications.
