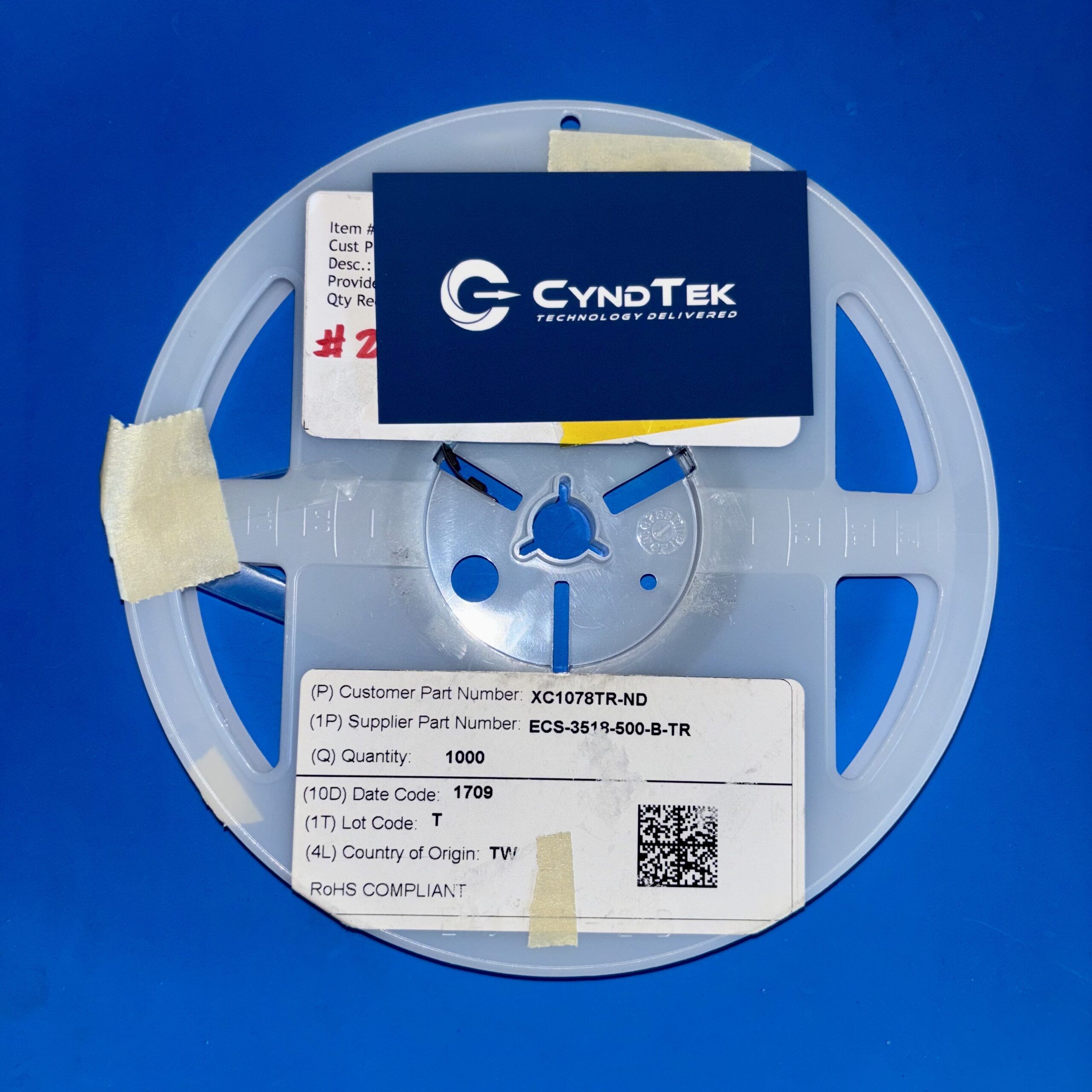

ECS-3518-500-B-TR

ECS-3518-500-B-TR Specifications

Manufacturer: ECS Inc. International
Part Number: ECS-3518-500-B-TR
Product Type: Surface-Mount Crystal Oscillator
Frequency: 50.000 MHz
Output Type: HCMOS
Supply Voltage: 1.8 V
Frequency Stability: ±50 ppm
Operating Temperature Range: 0°C to +70°C
Package Size: 5.00 mm x 3.20 mm x 1.30 mm
Current Consumption: 25 mA (maximum)
Output Load: 15 pF
Rise/Fall Time: 5 ns (maximum)
Start-Up Time: 10 ms (maximum)
Tri-State Function: Yes
RoHS Status: RoHS Compliant

Key Features

The ECS-3518-500-B-TR from ECS Inc. International is a high-frequency, surface-mount crystal oscillator designed to deliver precise timing solutions for various electronic applications. Operating at 50.000 MHz with an HCMOS output, it ensures stable and accurate signal generation. The oscillator operates with a supply voltage of 1.8 V and maintains a frequency stability of ±50 ppm over an operating temperature range of 0°C to +70°C. Encased in a compact 5.00 mm x 3.20 mm x 1.30 mm package, it is suitable for high-density PCB layouts. The device features a low current consumption of up to 25 mA, supporting energy-efficient designs. Its rapid rise and fall times of 5 ns (maximum) facilitate swift signal transitions, enhancing overall performance. Additionally, the oscillator includes a Tri-State function, allowing for output enable or disable, providing flexibility in circuit designs.

Applications

Clock generation in high-speed communication systems requiring precise timing.
Synchronization in data processing equipment to ensure accurate data transfer.
Timing control in industrial automation systems for reliable operation.
Frequency synthesis in test and measurement instruments demanding high accuracy.
Signal processing in consumer electronics such as audio and video devices.

Product Overview

ECS Inc. International’s ECS-3518-500-B-TR crystal oscillator is engineered to provide reliable and precise timing solutions for a wide range of electronic applications. Its high-frequency operation at 50.000 MHz, combined with HCMOS output, ensures accurate signal generation. The compact surface-mount package facilitates integration into space-constrained designs, while the low power consumption supports energy-efficient operation. The inclusion of the Tri-State function offers additional control over the output, enhancing design flexibility. With compliance to RoHS standards, this oscillator aligns with environmental and safety regulations, making it a dependable choice for designers seeking high-performance timing components.
