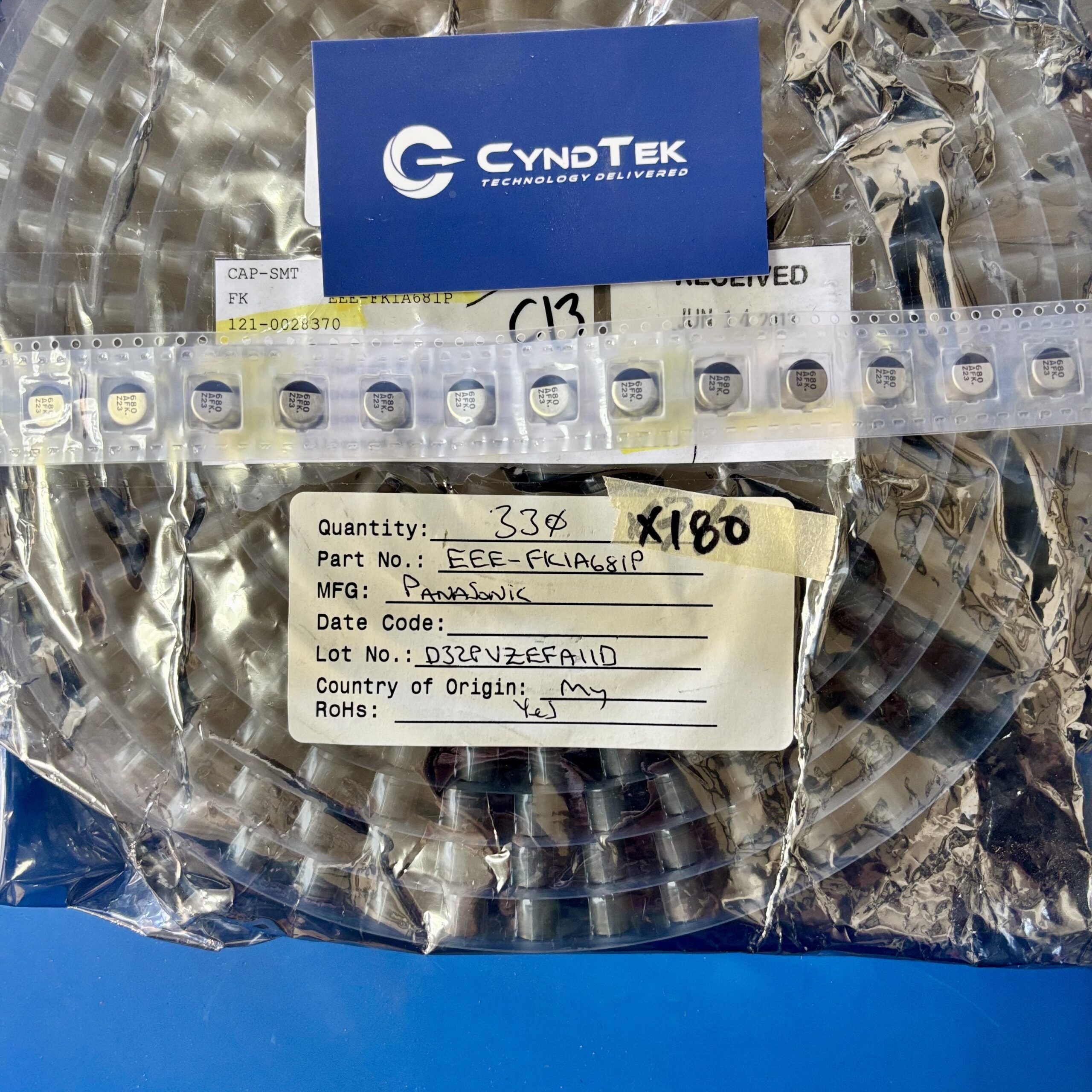

EEE-FK1A681P

EEE-FK1A681P Specifications

Manufacturer: Panasonic Electronic Components
Part Number: EEE-FK1A681P
Product Type: Surface-Mount Aluminum Electrolytic Capacitor
Capacitance: 680 µF ±20%
Voltage Rating: 10 V DC
Equivalent Series Resistance (ESR): 160 mΩ at 100 kHz
Ripple Current: 600 mA RMS at 100 kHz
Leakage Current: ≤ 3 µA after 2 minutes at 20°C
Dissipation Factor (tan δ): 0.14 at 120 Hz, 20°C
Operating Temperature Range: -55°C to +105°C
Endurance: 2000 hours at 105°C
Dimensions: 8.0 mm (D) x 10.2 mm (H)
Mounting Type: Surface Mount (V-Chip)
Polarity: Polar
Impedance: 160 mΩ at 100 kHz
RoHS Status: RoHS Compliant

Key Features

The EEE-FK1A681P from Panasonic Electronic Components is a surface-mount aluminum electrolytic capacitor designed for applications requiring high capacitance and low impedance. With a capacitance of 680 µF and a voltage rating of 10 V DC, it effectively supports power supply stabilization and noise suppression in electronic circuits. The capacitor’s low ESR of 160 mΩ at 100 kHz ensures efficient performance in high-frequency applications. Maximum ripple current rating of 600 mA RMS at 100 kHz enhances its suitability for power-intensive tasks. Measuring 8.0 mm in diameter and 10.2 mm in height, this V-Chip style capacitor is optimized for surface-mount technology. This facilitates compact and efficient PCB layouts. Its endurance rating of 2000 hours at 105°C guarantees long-term reliability across various environmental conditions.

Applications

Power supply stabilization in industrial automation equipment
Noise suppression in telecommunications infrastructure
Energy storage in automotive electronic control units (ECUs)
Voltage regulation in medical diagnostic devices
Filtering applications in renewable energy inverters

Product Overview

Panasonic’s EEE-FK1A681P capacitor offers a robust solution for engineers seeking high capacitance and low impedance in a surface-mount package. Its aluminum electrolytic construction provides stable electrical characteristics and enhanced reliability. Thus making it ideal for demanding applications such as power supply stabilization and noise suppression. The capacitor’s compact dimensions facilitate integration into space-constrained designs. Its compliance with RoHS standards underscores Panasonic’s commitment to environmental responsibility. With a ripple current rating of 600 mA RMS and a dissipation factor of 0.14, the EEE-FK1A681P ensures efficient performance in high-frequency circuits. This contributing to the overall stability and longevity of electronic systems.
