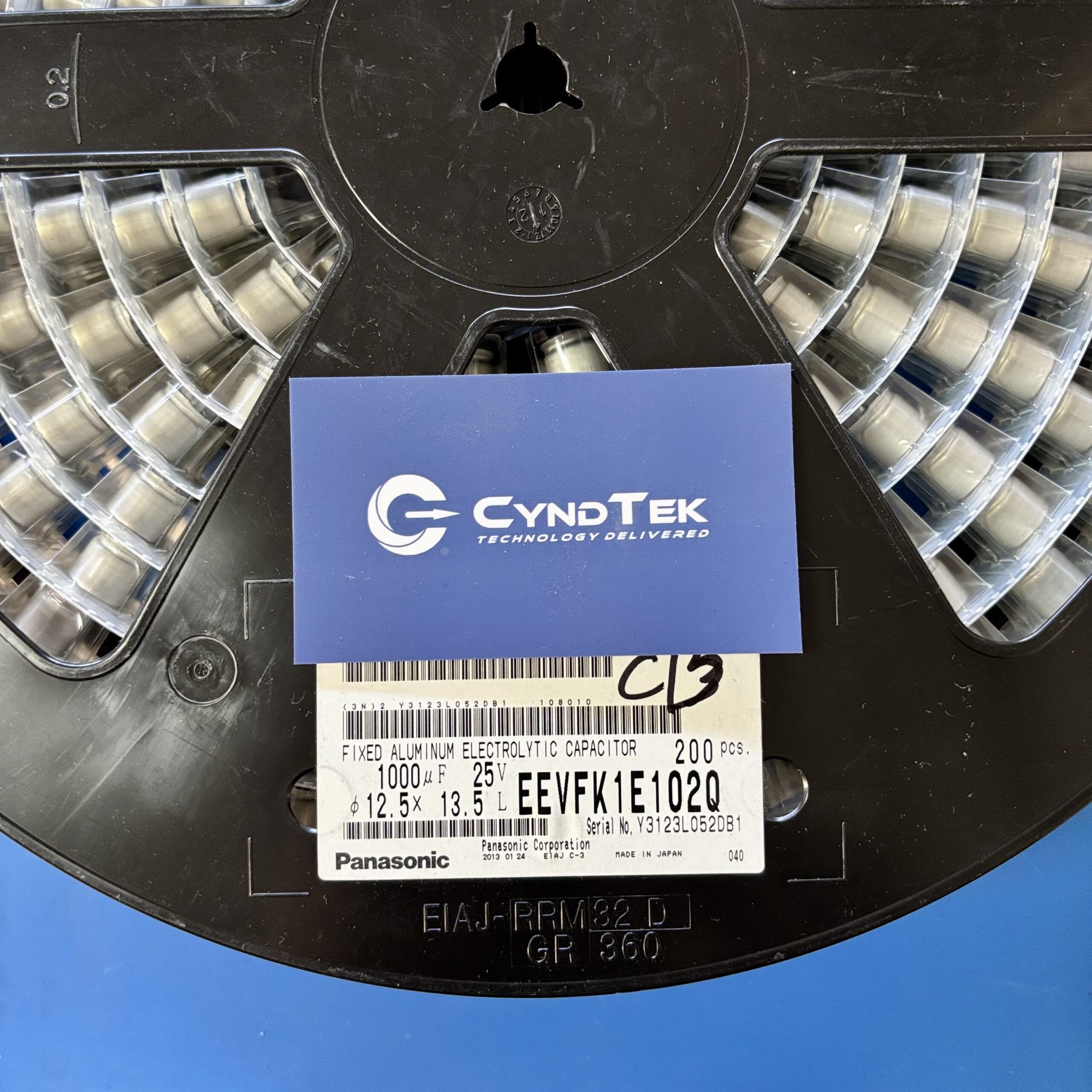

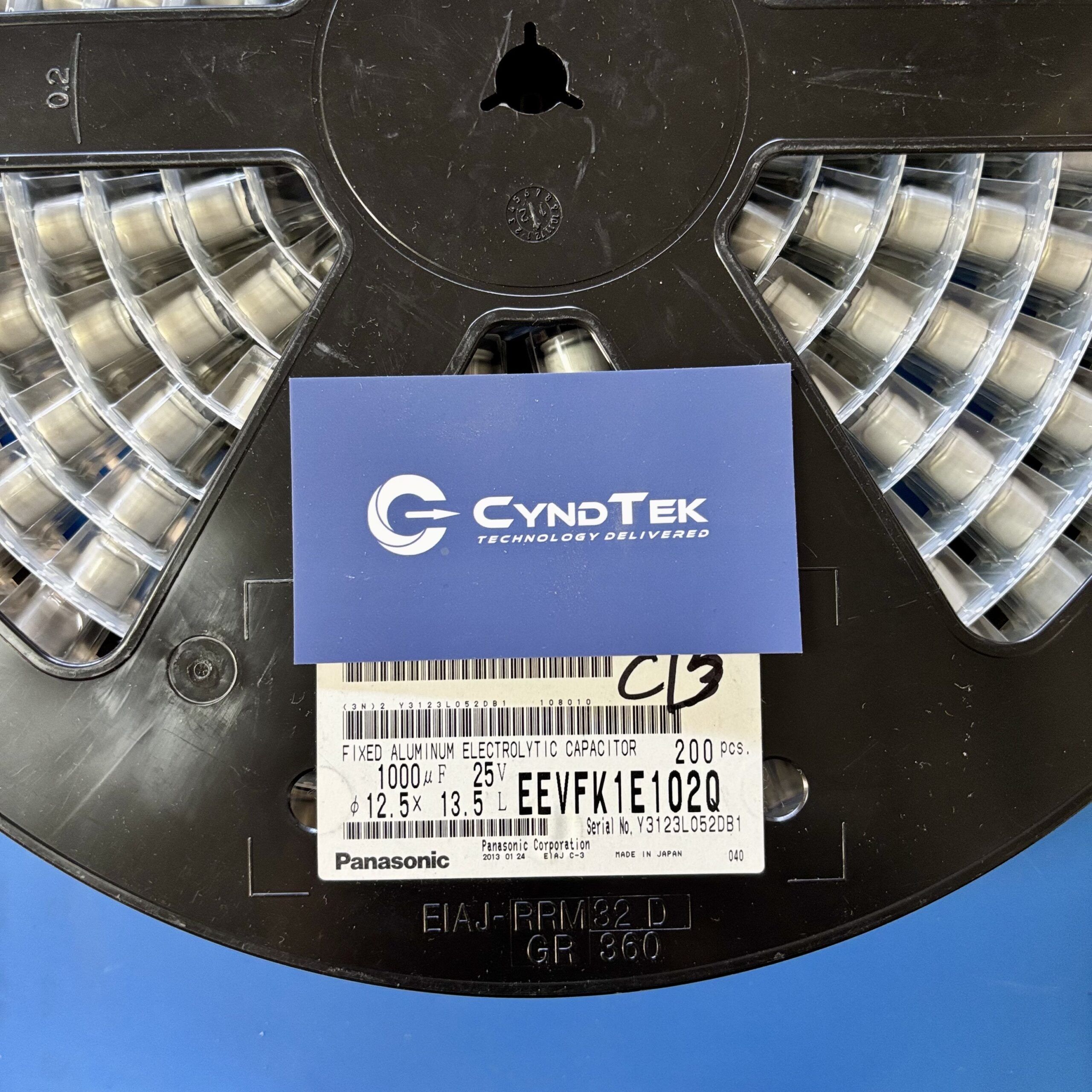

EEV-FK1E102Q

EEV-FK1E102Q Specifications

Manufacturer: Panasonic Electronic Components
Part Number: EEV-FK1E102Q
Product Type: Surface-Mount Aluminum Electrolytic Capacitor
Capacitance: 1000 µF ±20%
Voltage Rating: 25 V DC
ESR: 60 mΩ at 100 kHz
Ripple Current: 1100 mA RMS at 100 kHz
Leakage Current: ≤ 250 µA after 2 minutes
Dissipation Factor: 0.14 at 120 Hz
Operating Temperature Range: -55°C to +105°C
Endurance: 5000 hours at 105°C
Dimensions: 12.5 mm diameter x 13.5 mm height
Mounting Type: Surface Mount (V-Chip)
Polarity: Polar
Impedance: 60 mΩ
Compliance: RoHS Compliant

Key Features

The EEV-FK1E102Q from Panasonic is a compact aluminum electrolytic capacitor. It offers high capacitance and low impedance in a surface-mount package. With 1000 µF of capacitance and a 25 V rating, it is well-suited for power stabilization. Its low ESR of 60 mΩ at 100 kHz helps reduce power loss. Additionally, it supports up to 1100 mA ripple current, enabling reliable performance in high-frequency circuits. Its V-Chip package makes it easy to install on densely populated boards. The capacitor is designed for long life with a 5000-hour endurance rating at 105°C.

Applications

Power supply filtering in programmable logic controllers
Ripple suppression in telecom power distribution
Energy support in automotive control modules
Voltage smoothing in MRI equipment and monitors
DC input filtering in solar inverters

Product Overview

Panasonic’s EEV-FK1E102Q is built for stability and reliability in demanding environments. Its high capacitance allows for consistent voltage regulation across various power conditions. With low ESR and strong ripple current capability, it helps maintain system efficiency. Its surface-mount format supports automated assembly and compact layouts. This capacitor is ideal for industrial, medical, and automotive sectors that demand long-term performance. Furthermore, its RoHS compliance aligns with global environmental standards.
