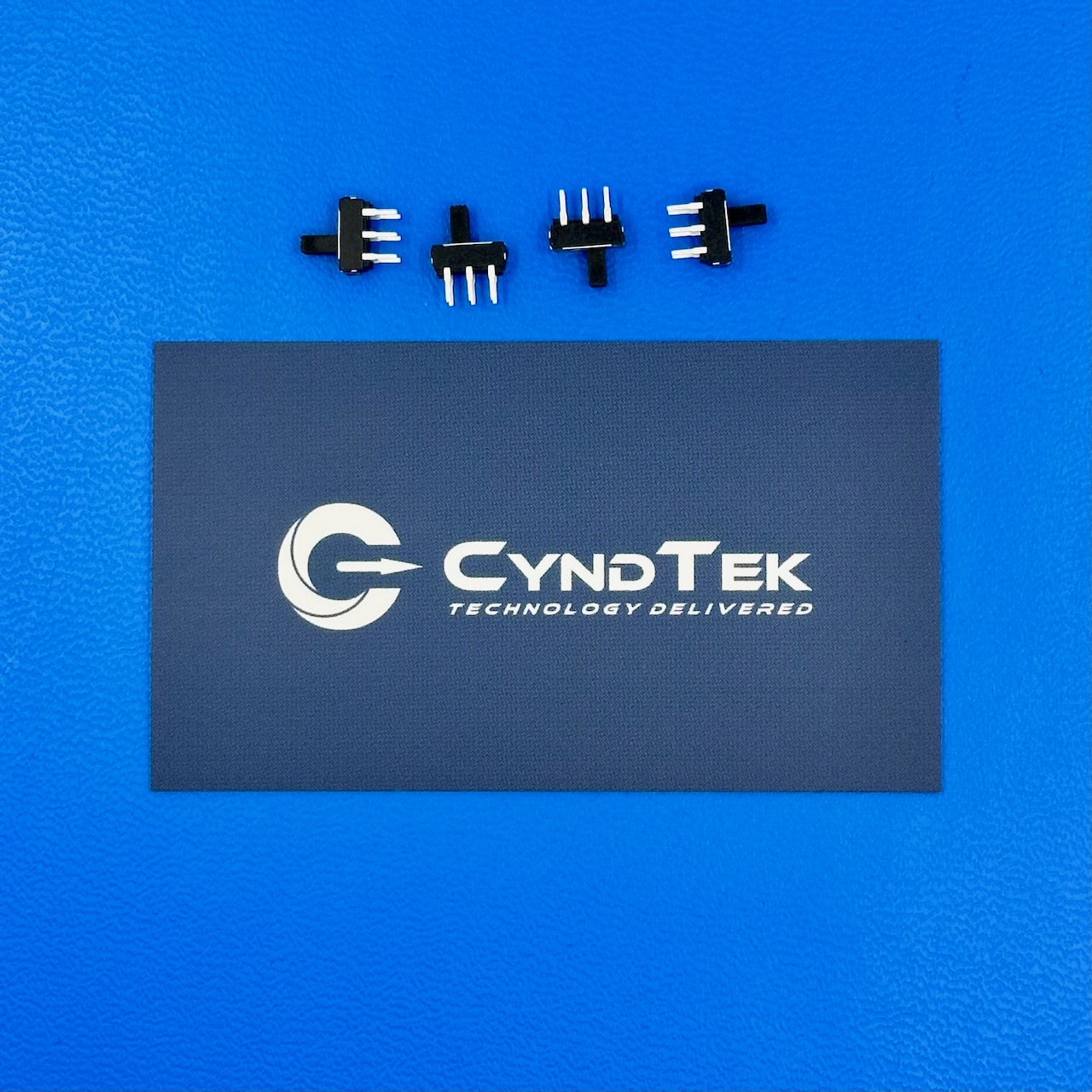

EG1271A

EG1271A Specifications

Manufacturer: E-Switch
Part Number: EG1271A
Product Type: Slide Switch
Circuit Configuration: SPDT (Single Pole Double Throw)
Switch Function: On-On
Contact Rating: 300 mA at 30 VDC
Contact Resistance: 20 mΩ maximum
Insulation Resistance: 100 MΩ minimum at 500 VDC
Dielectric Strength: 500 VAC for 1 minute
Actuator Type: Standard
Actuator Length: 4.4 mm
Mounting Type: Through Hole
Termination Style: PC Pin
Operating Force: 200 gf
Switch Travel: 2.0 mm
Operating Temperature Range: -20°C to +70°C
Mechanical Life: 10,000 cycles
RoHS Status: RoHS Compliant

Key Features

The EG1271A is a compact SPDT slide switch from E-Switch, designed for reliable performance in various electronic applications. It offers an On-On switch function, allowing seamless transition between two circuits. With a contact rating of 300 mA at 30 VDC, it is suitable for low-power signal switching. The switch features a standard actuator measuring 4.4 mm in length, providing tactile feedback with an operating force of 200 gf and a switch travel of 2.0 mm. Its low contact resistance of 20 mΩ ensures minimal signal loss, while the insulation resistance of at least 100 MΩ at 500 VDC enhances safety and performance.

The EG1271A is built to withstand dielectric strengths up to 500 VAC for 1 minute, ensuring durability. Designed for through-hole mounting with PC pin terminations, it facilitates secure and stable integration into printed circuit boards. The switch operates effectively within a temperature range of -20°C to +70°C and boasts a mechanical life of 10,000 cycles, underscoring its reliability in repeated use.

Applications

• Selection switches in consumer electronics

• Mode switching in communication devices

• Function controls in instrumentation equipment

• Circuit selection in industrial control panels

• Configuration settings in computer peripherals

Product Overview

E-Switch’s EG1271A slide switch combines compact design with reliable switching capabilities, making it an ideal choice for applications requiring SPDT functionality. Its standard actuator and tactile feedback provide user-friendly operation, while the low contact resistance ensures efficient signal transmission. The switch’s robust construction, including high insulation resistance and dielectric strength, guarantees safe and durable performance. Designed for through-hole mounting, the EG1271A integrates seamlessly into various PCB layouts. Its RoHS compliance reflects E-Switch’s commitment to environmental standards. Overall, the EG1271A offers a balance of performance, durability, and ease of integration, catering to a wide range of electronic applications.
