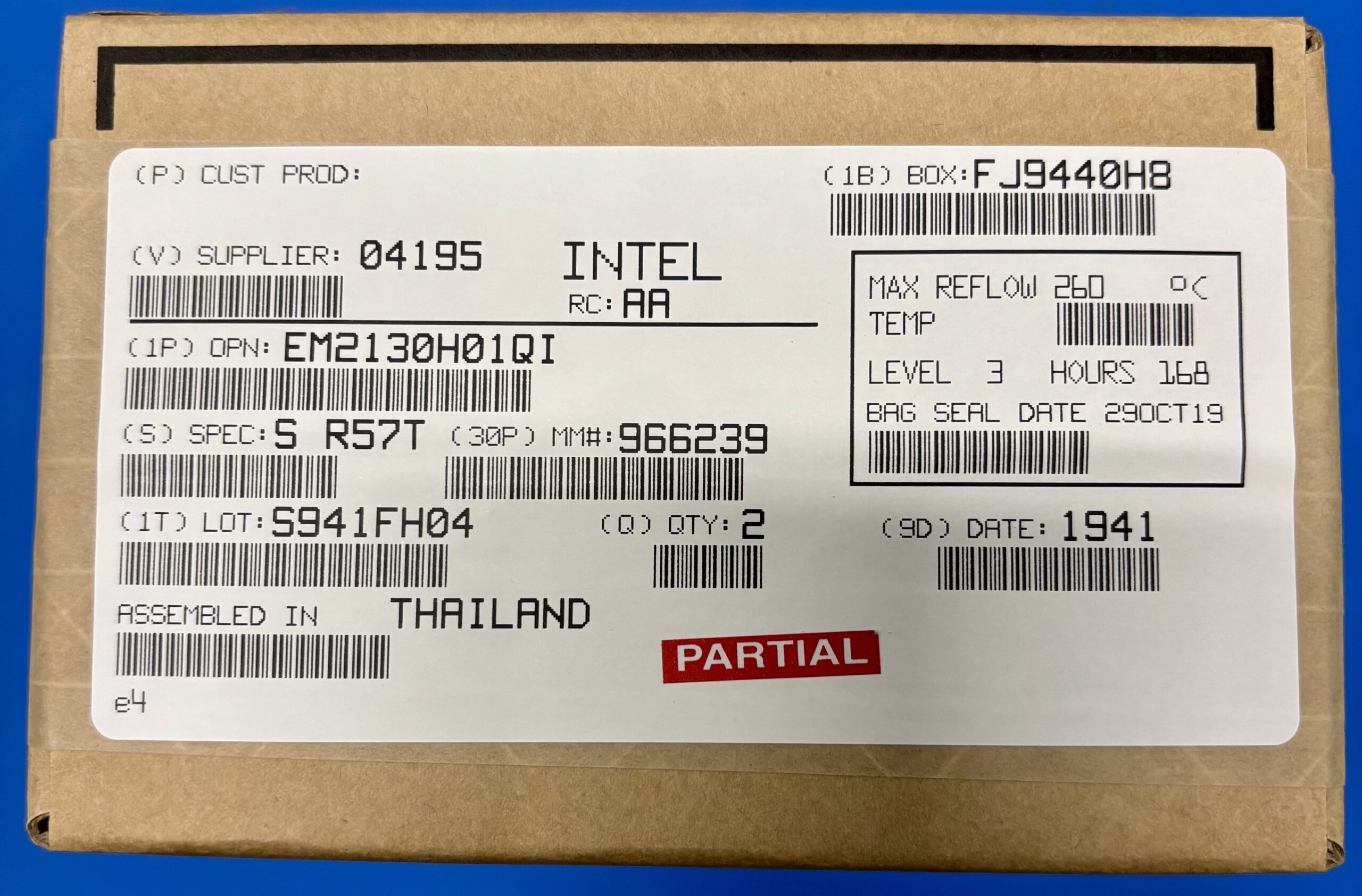

EM2130H01QI

EM2130H01QI Specifications:

• Manufacturer: Altera (Intel)
• Series: Enpirion®
• Type: Non-Isolated Point-of-Load (PoL) Module, Digital DC-DC Converter
• Number of Outputs: 1
• Input Voltage Range: 4.5V to 16V
• Output Voltage Range: 1.35V to 3.6V
• Maximum Output Current: 30A
• Efficiency: Up to 95%
• Switching Frequency: 1.333 MHz
• Features: PMBus v1.2 compliant interface, advanced digital control, remote sensing, ±0.5% set-point accuracy
• Operating Temperature Range: -40°C to 85°C
• Mounting Type: Surface Mount
• Package / Case: 100-PowerBQFN Module
• Dimensions: 19 mm x 15 mm x 5.2 mm
• Applications: Information Technology Equipment (ITE), high-performance FPGAs, ASICs, processors, DDR memory devices
• Status: Obsolete
• Compliance: RoHS Compliant
• Packaging: Tray

Additional information:

The EM2130H01QI is a high-efficiency, fully integrated 30A PowerSoC synchronous buck converter from Altera’s Enpirion® series, designed to meet the demanding power requirements of modern digital systems. This non-isolated Point-of-Load (PoL) module features an advanced digital controller, gate drivers, synchronous MOSFET switches, and a high-performance inductor, all within a compact 100-PowerBQFN package measuring 19 mm x 15 mm x 5.2 mm. With an input voltage range of 4.5V to 16V, it delivers an adjustable output voltage between 1.35V and 3.6V, supporting a maximum output current of 30A. The EM2130H01QI achieves up to 95% efficiency, ensuring optimal power utilization and minimal heat dissipation. Its high switching frequency of 1.333 MHz allows for fast transient response and reduced output ripple, enhancing overall system performance.

One of the standout features of the EM2130H01QI is its compliance with the PMBus v1.2 interface, providing users with flexible setup, control, and telemetry capabilities. This digital interface enables precise monitoring and adjustment of the converter’s performance parameters, facilitating intelligent power management in complex applications. The module also supports differential remote sensing and boasts a ±0.5% set-point accuracy, ensuring precise regulation over line, load, and temperature variations. These attributes make it particularly suitable for powering high-performance FPGAs, ASICs, processors, and DDR memory devices, where stringent voltage regulation is critical.

Designed for reliability, the EM2130H01QI operates efficiently across a wide temperature range of -40°C to 85°C, making it suitable for various environmental conditions encountered in Information Technology Equipment (ITE) applications. Its surface-mount design simplifies integration into existing PCB layouts, and its compact form factor saves valuable board space. However, it’s important to note that this product is listed as obsolete, indicating that it may no longer be in production or readily available. Designers should verify availability and consider potential alternatives for new projects.
