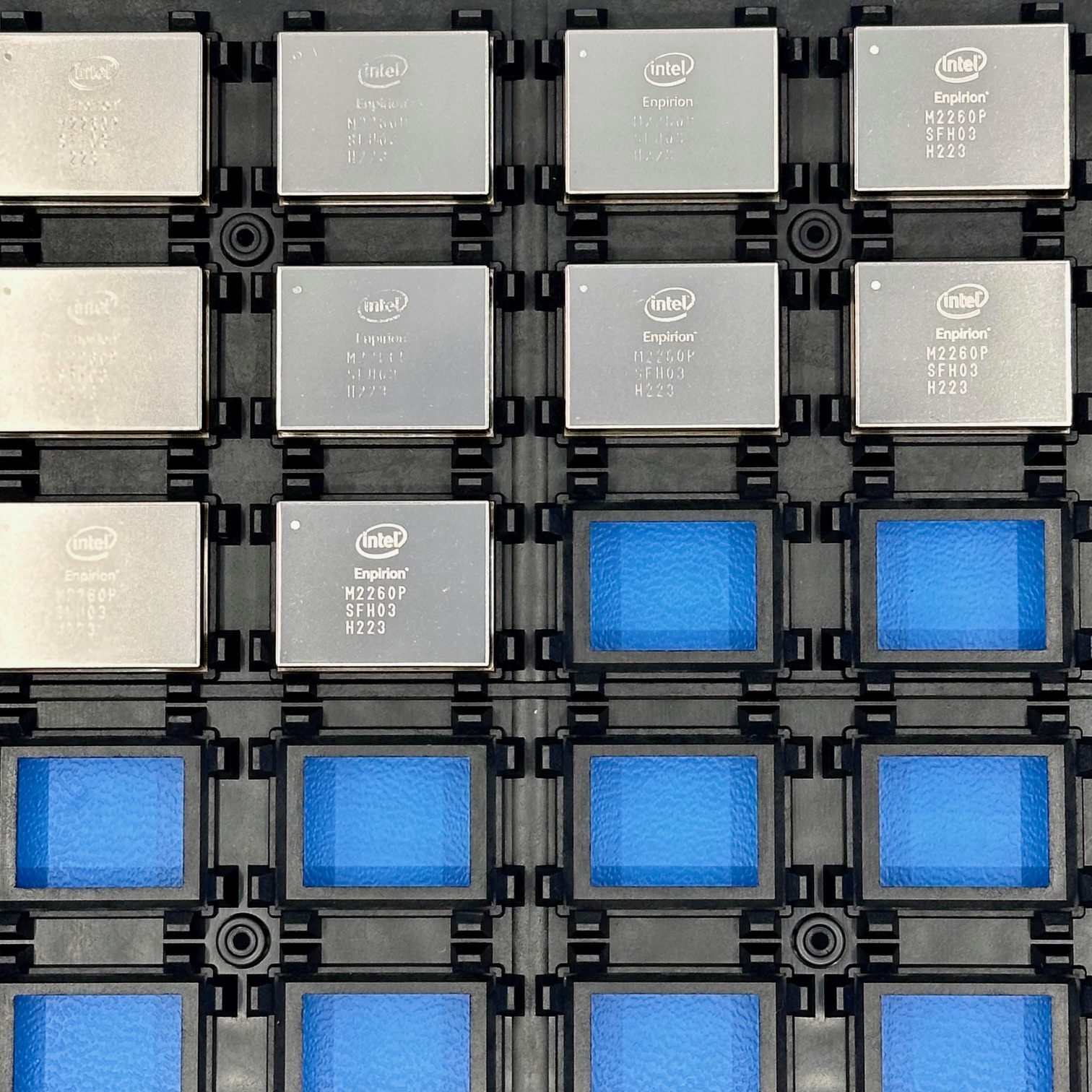

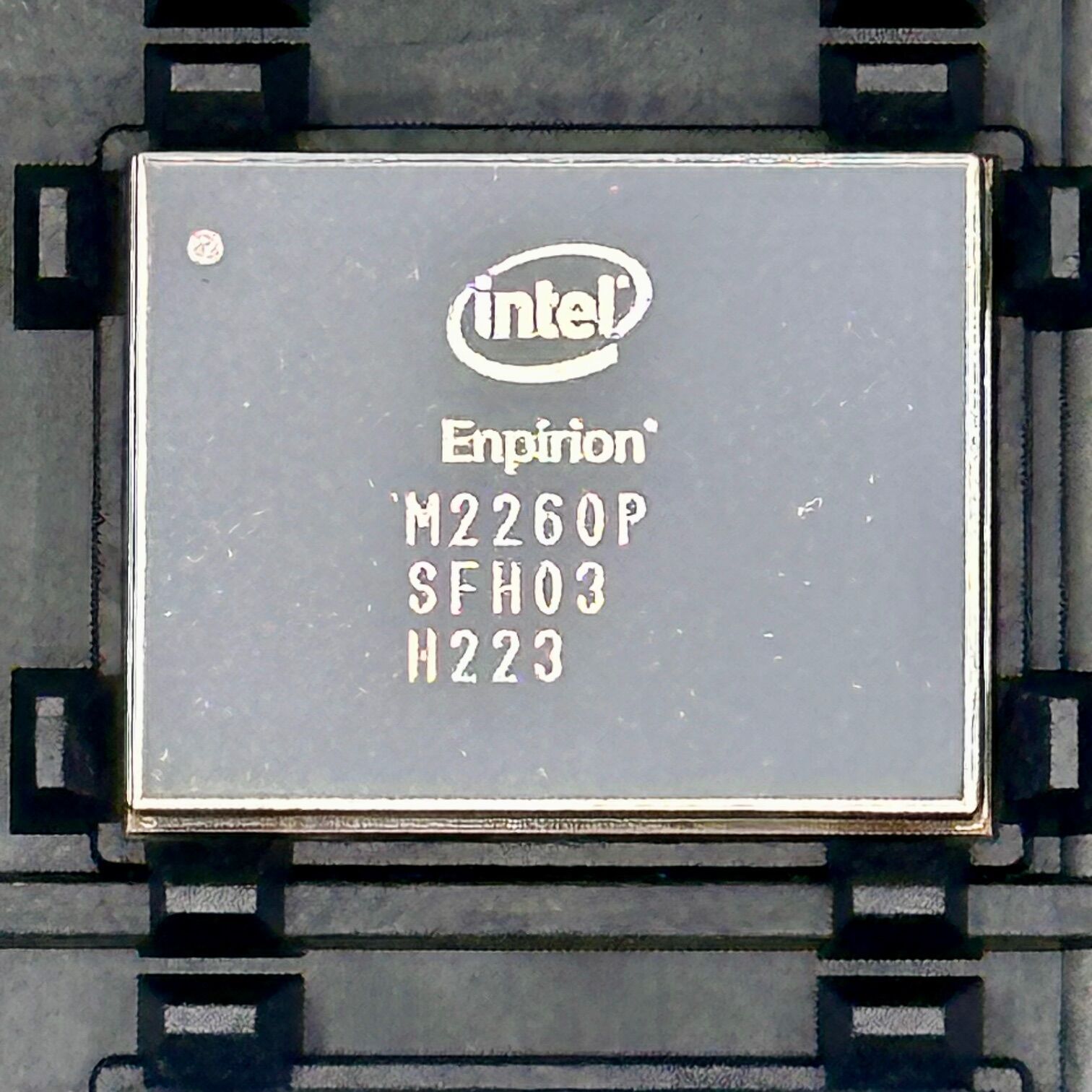

EM2260P01QI Specifications
Manufacturer: Intel (formerly Altera)
Part Number: EM2260P01QI
Product Type: PowerSoC DC-DC Converter
Input Voltage Range: 4.5V to 16V
Output Voltage Range: 0.5V to 1.3V
Maximum Output Current: 60A
Control Interface: PMBus™ 1.2 compliant
Efficiency: Up to 88% at 12V input, 1.2V output
Package / Case: 23mm x 18mm x 5mm QFN152
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant
End-of-Life Status: Scheduled for obsolescence and will be discontinued by the manufacturer.
Key Features
The EM2260P01QI is a fully integrated 60A PowerSoC synchronous dual-phase buck converter from Intel’s Enpirion series. It combines an advanced digital controller, gate drivers, synchronous MOSFETs, and high-performance inductors into a single package. Operating over a wide input voltage range of 4.5V to 16V, it delivers an adjustable output voltage between 0.5V and 1.3V. The device supports PMBus™ 1.2 for configuration, control, and telemetry, facilitating easy integration into complex power management systems. With up to 88% efficiency at a 12V input and 1.2V output, it ensures effective power conversion. Its compact QFN152 package simplifies PCB layout and saves board space.
Applications
High-performance FPGA core supplies
ASIC and processor power rails
Data centers and server farms
Networking and telecommunications equipment
Industrial automation systems
High-current, low-voltage digital systems
Product Overview
The EM2260P01QI is designed to meet the demanding power requirements of modern digital systems. Its dual-phase architecture and integrated components provide a compact and efficient solution for delivering up to 60A of continuous current. The device’s digital control loop ensures precise voltage regulation and fast transient response, essential for high-performance processors and FPGAs. The PMBus™ interface offers extensive configurability and real-time monitoring, enhancing system reliability and flexibility. Despite its high power density, the EM2260P01QI maintains excellent thermal performance, operating reliably across a wide temperature range. However, designers should note its end-of-life status and plan accordingly for future designs.
