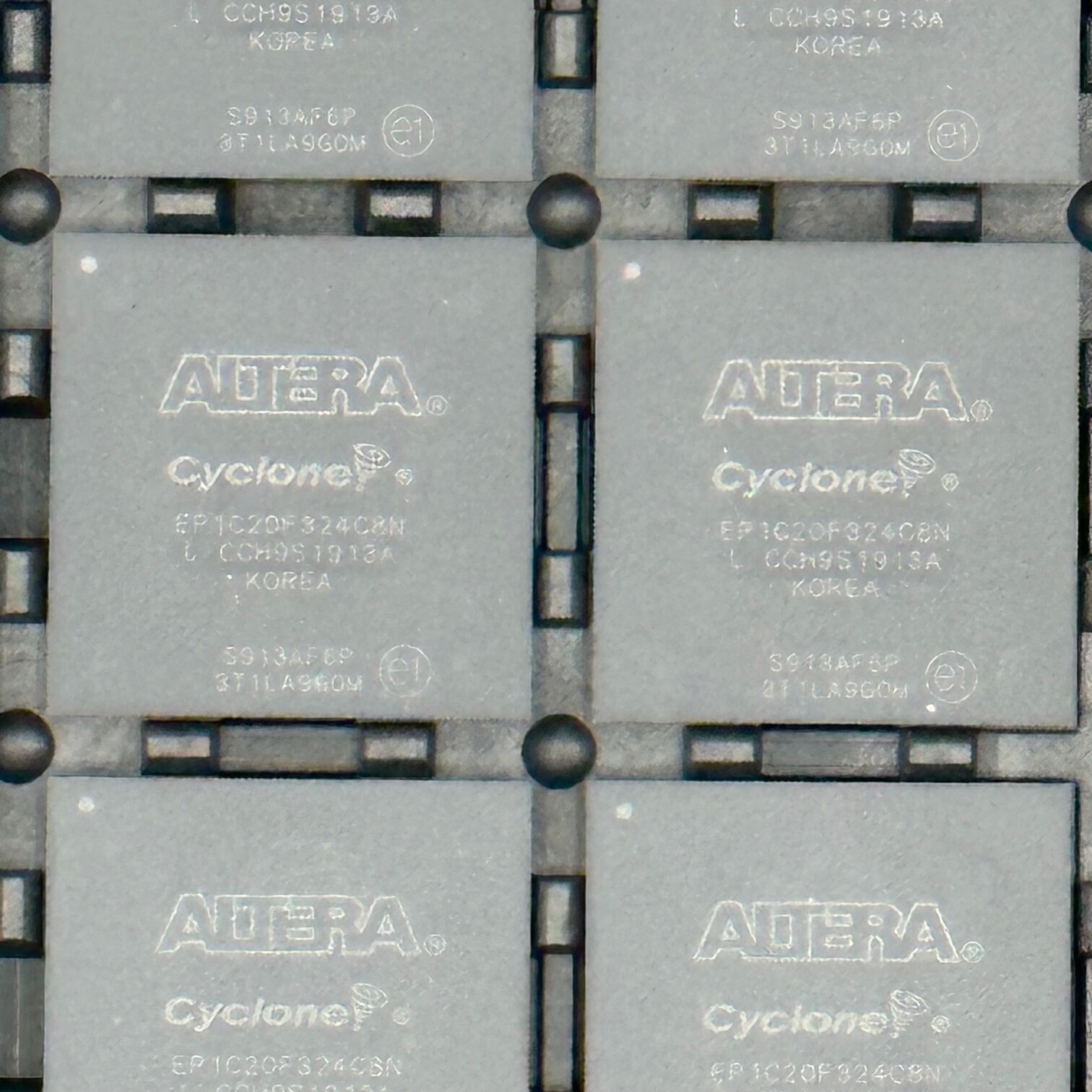

EP1C20F324C8N

EP1C20F324C8N, a member of the Cyclone® FPGA family, equipped with impressive technical specifications for high-performance applications. Here’s a detailed overview:

• Logic Elements: 20,060
• Operating Frequency: 275.03MHz
• Process Technology: 130nm
• Operating Supply Voltage: 1.5V
• User I/Os: 233
• Number of I/O Banks: 4
• Shift Registers: Yes
• Utilize Memory: Yes
• Program Memory Type: SRAM
• Embedded Memory: 288 Kbit
• Total Number of Block RAM: 64
• IP Core: Video LVDS SerDes Transmitter / Receiver, RLDRAM II Controller Core, IFI Advanced CAN IP
• Provider Name: Cyndtek LLC
• Device Logic Units: 20,060
• Number of Global Clocks: 8
• Device Number of DLLs/PLLs: 2
• Programmability: No
• Reprogrammability Support: No
• Copy Protection: Yes
• In-System Programmability: Yes
• Speed Grade: 8

I/O Standards:

• Differential I/O Standards: LVDS, PCI
• Single-Ended I/O Standards: LVTTL, LVCMOS, SSTL-2, SSTL-3
• Maximum I/O Performance: 640Mbps

External Memory Interface:

• Supports DDR SDRAM, FCRAM

Voltage Levels:

• I/O Voltage: 1.5V, 1.8V, 2.5V, 3.3V
• Operating Voltage Range: 1.425V to 1.575V

Temperature and Mounting:

• Minimum Operating Temperature: 0°C
• Maximum Operating Temperature: 85°C
• Supplier Temperature Grade: Commercial
• Tradename: Cyclone
• Mounting: Surface Mount

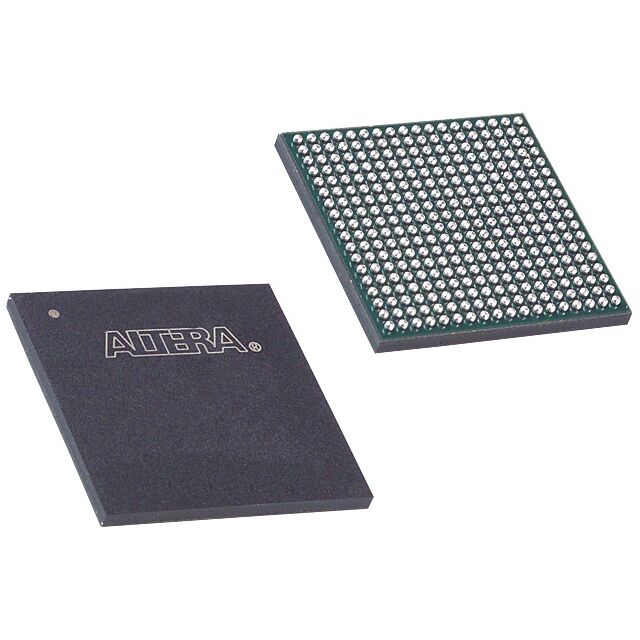

• Package Details: BGA (Ball Grid Array)
  • Package Height: 1.8mm (Max)
  • Package Width: 19mm
  • Package Length: 19mm
  • Pin Count: 324

Additional information:

The EP1C20F324C8N version, part of the Cyclone® field programmable gate array family, leverages a cutting-edge 1.5-V, 0.13-μm, all-layer copper SRAM process. Boasting impressive specifications, this version offers up to 20,060 logic elements (LEs) and a substantial 288 Kbits of RAM, making it a powerhouse for demanding applications.

Designed with advanced features such as phase-locked loops (PLLs) for precise clocking and a dedicated double data rate (DDR) interface catering to DDR SDRAM and fast cycle RAM (FCRAM) memory requirements, the EP1C20F324C8N stands as a cost-effective solution for data-path applications.

Its versatility shines through in supporting various I/O standards, including LVDS at remarkable data rates of up to 640 megabits per second (Mbps). Additionally, it offers support for 66- and 33-MHz, 64- and 32-bit peripheral component interconnect (PCI), enabling seamless interfacing with and support for ASSP and ASIC devices.
