EP1S10F672C7N

EP1S10F672C7N

$12.00

High-performance 8-channel Delta-Sigma DAC, 24-bit resolution, 192 ksps conversion rate, ideal for audio applications.

  • Manufacturer: Altera
  • Description: IC FPGA 345 I/O 672FBGA
  • Packaging: Tray/ESD Mini Box
  • Quantity: 1 per order
  • Volume Discount Available:  Yes
  • Datecode:  18+

Availability: 428 in stock

SKU TSX012 Category Brand:

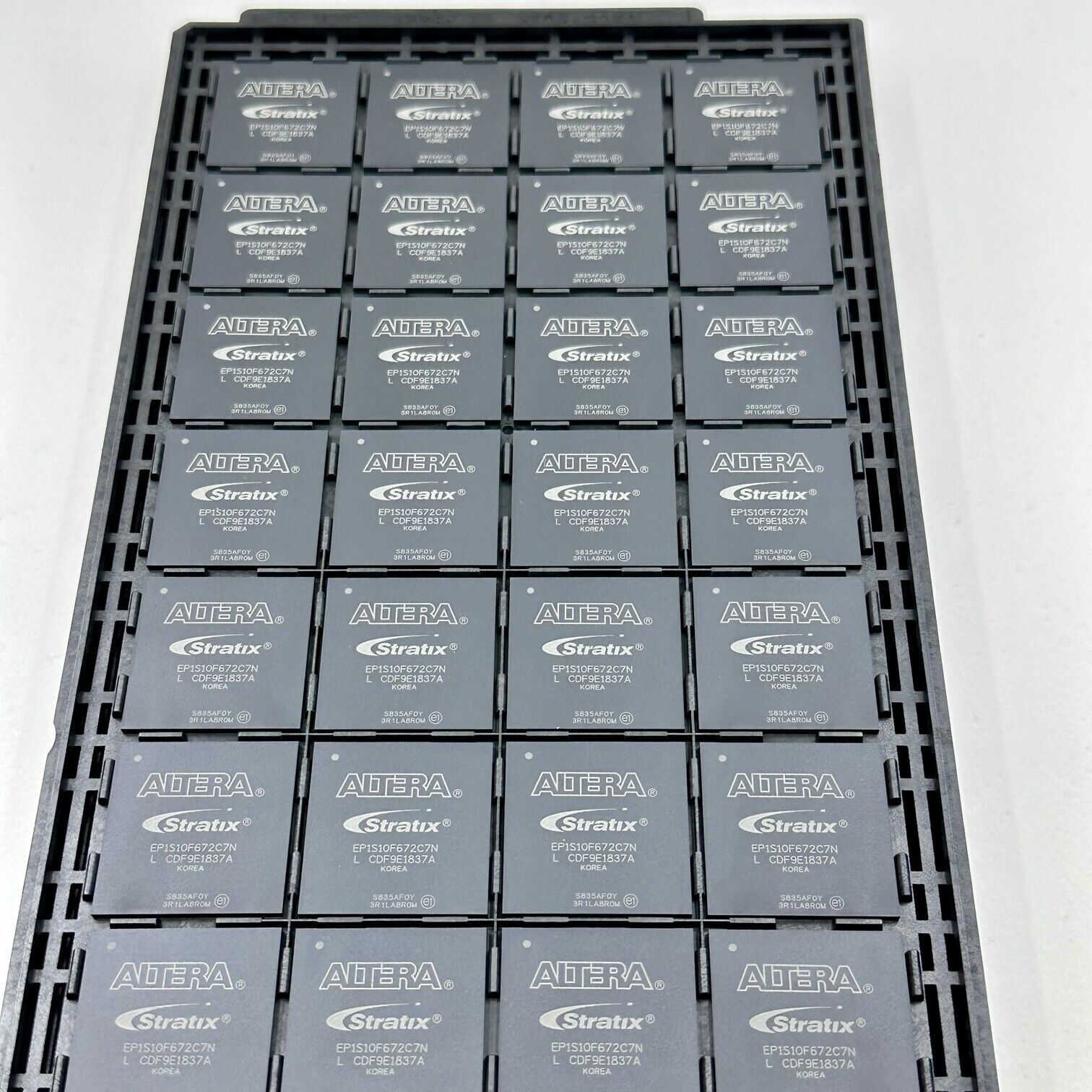

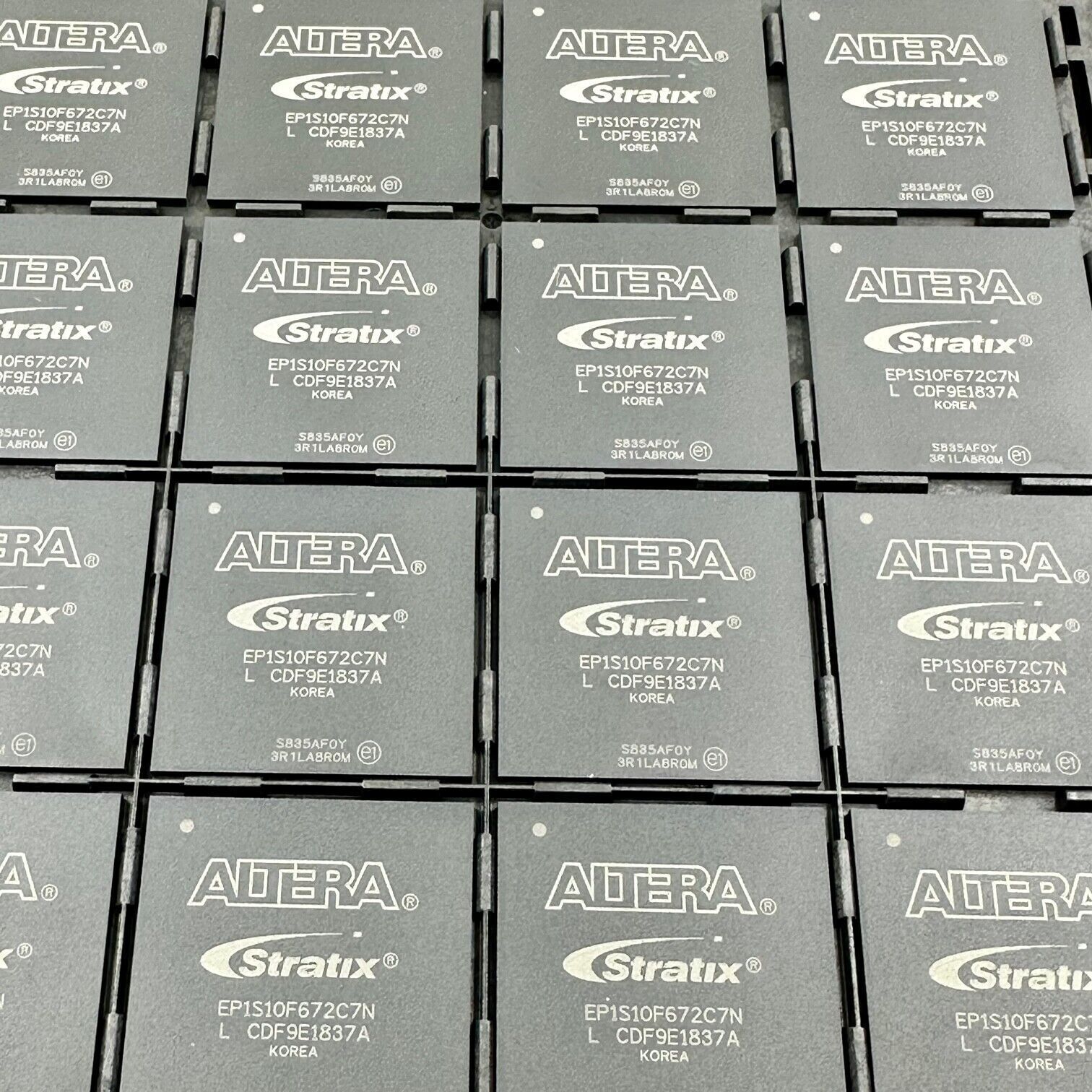

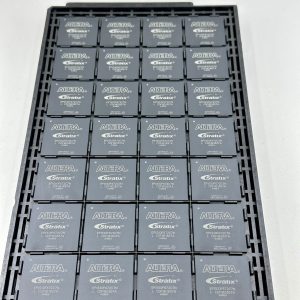

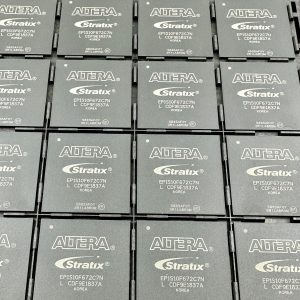

EP1S10F672C7N, securely packaged in an ESD mini component shipper enclosed with Desipak, ensuring its integrity during shipment.

Technical Specifications:

  • Part Number: EP1S10F672C7N
  • FPGA Cells: 10,570
  • Operating Frequency: 420.17MHz
  • Process Technology: 130nm
  • Operating Supply Voltage: 1.5V
  • Package Type: BGA (Ball Grid Array)
    • Package Dimensions: 27mm x 27mm
    • Package Height: 2.2mm (Max)
  • Pin Count: 672
  • I/O Voltage Levels: 3.3V, 2.5V, 1.8V, 1.5V
  • Temperature Range:
    • Minimum Operating Temperature: 0°C
    • Maximum Operating Temperature: 85°C
  • Supplier Temperature Grade: Commercial

Functional Features:

  • User I/Os: 345
  • Number of I/O Banks: 8
  • Shift Registers: Yes
  • Utilize Memory: Yes
  • Logic Elements: 10,570
  • Number of Multipliers: 48 (9×9)
  • Program Memory Type: SRAM
  • Embedded Memory: 898.9 Kbit
  • Total Number of Block RAM: 1 + 60 + 94
  • SERDES Channels: 30
  • Dedicated DSP: 6
  • Device Logic Units: 10,570
  • Number of Global Clocks: 16
  • Device Number of DLLs/PLLs: 6
  • Programmability: No
  • Reprogrammability Support: No
  • Copy Protection: Yes
  • In-System Programmability: Yes
  • Speed Grade: 7

I/O Standards:

  • Differential I/O Standards: PCML, LVDS, LVPECL
  • Single-Ended I/O Standards: LVCMOS, LVTTL
  • Maximum I/O Performance: 840Mbps

External Memory Interface:

  • Supports ZBT SRAM, QDR II+ SRAM, FCRAM, DDR SDRAM

Additional Information:

  • EU RoHS Compliant: Yes
  • ECCN (US): 3A991d.
  • Part Status: Obsolete
  • HTS: 8542.39.00.01
  • Automotive: No
  • PPAP: No
  • Family Name: Stratix®
  • IP Core: Includes 32/64-bit PCI-X bus Master/Target interface Core, 66/100/133Mhz, DI2CSB I2C Bus Interface-Slave, IFI Advanced CAN IP, PCI Express Cores, Video LVDS SerDes Transmitter / Receiver
  • Provider Name: Microtronix Inc, CAST, Inc, Northwest Logic, Inc, IFI, Digital Core Design, PLDA

For further inquiries or additional information, please feel free to contact us.  Shop additional products at Cyndtek Products.
