Specifications

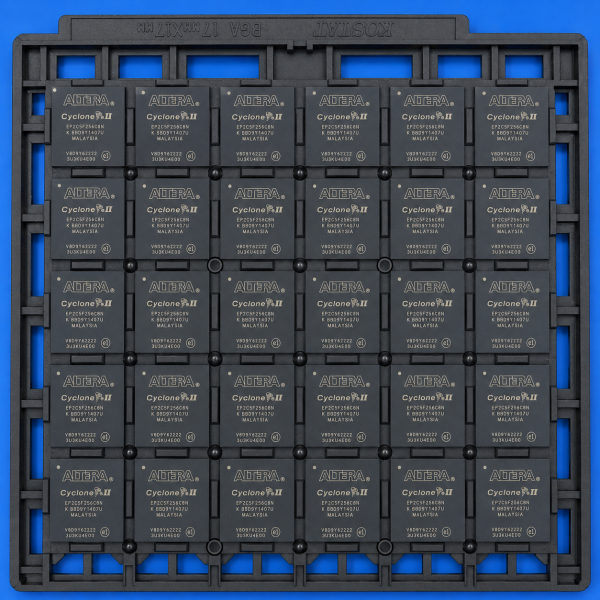

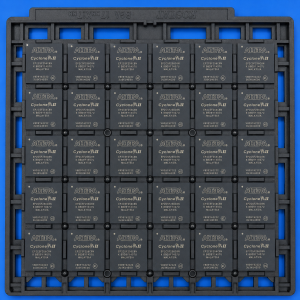

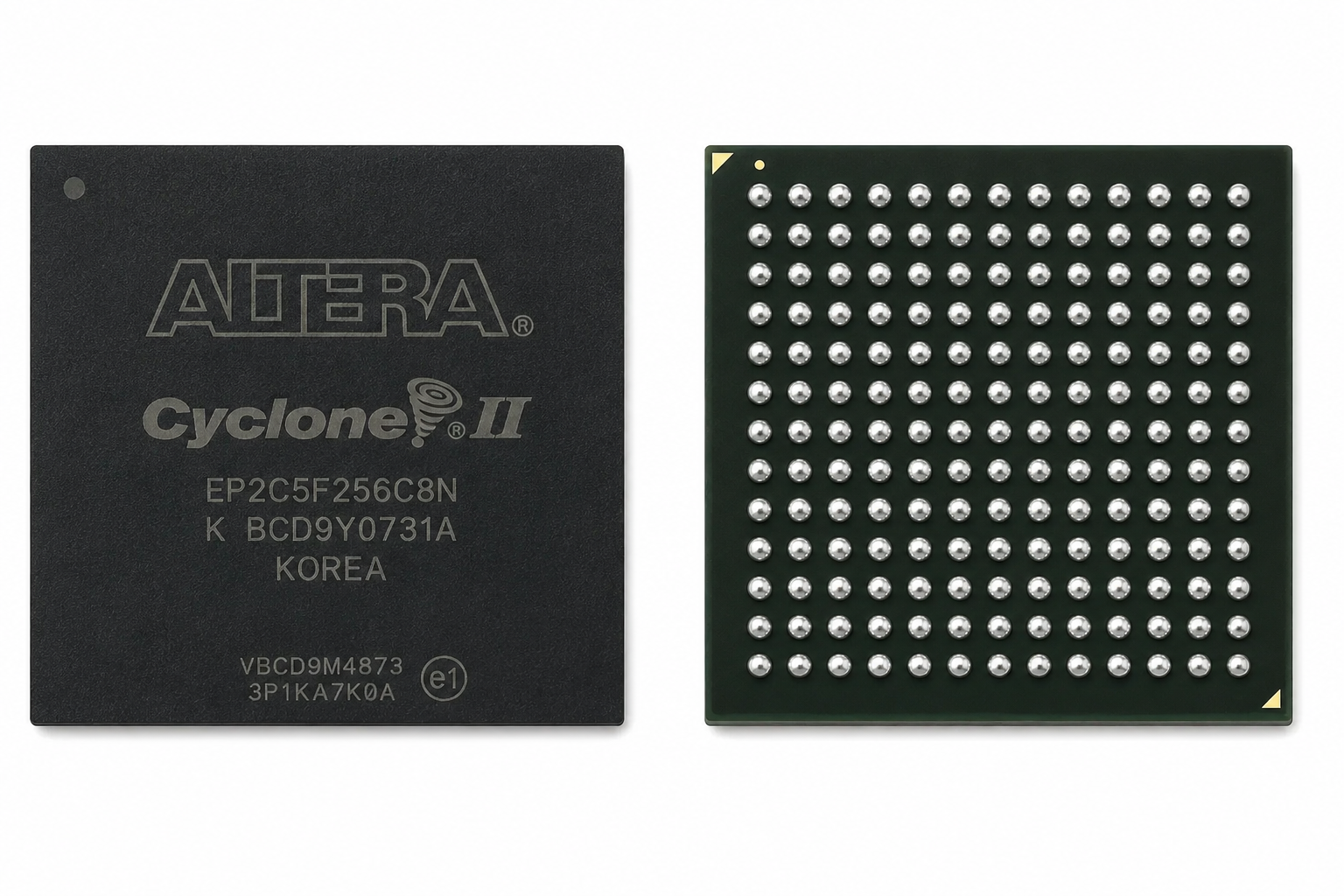

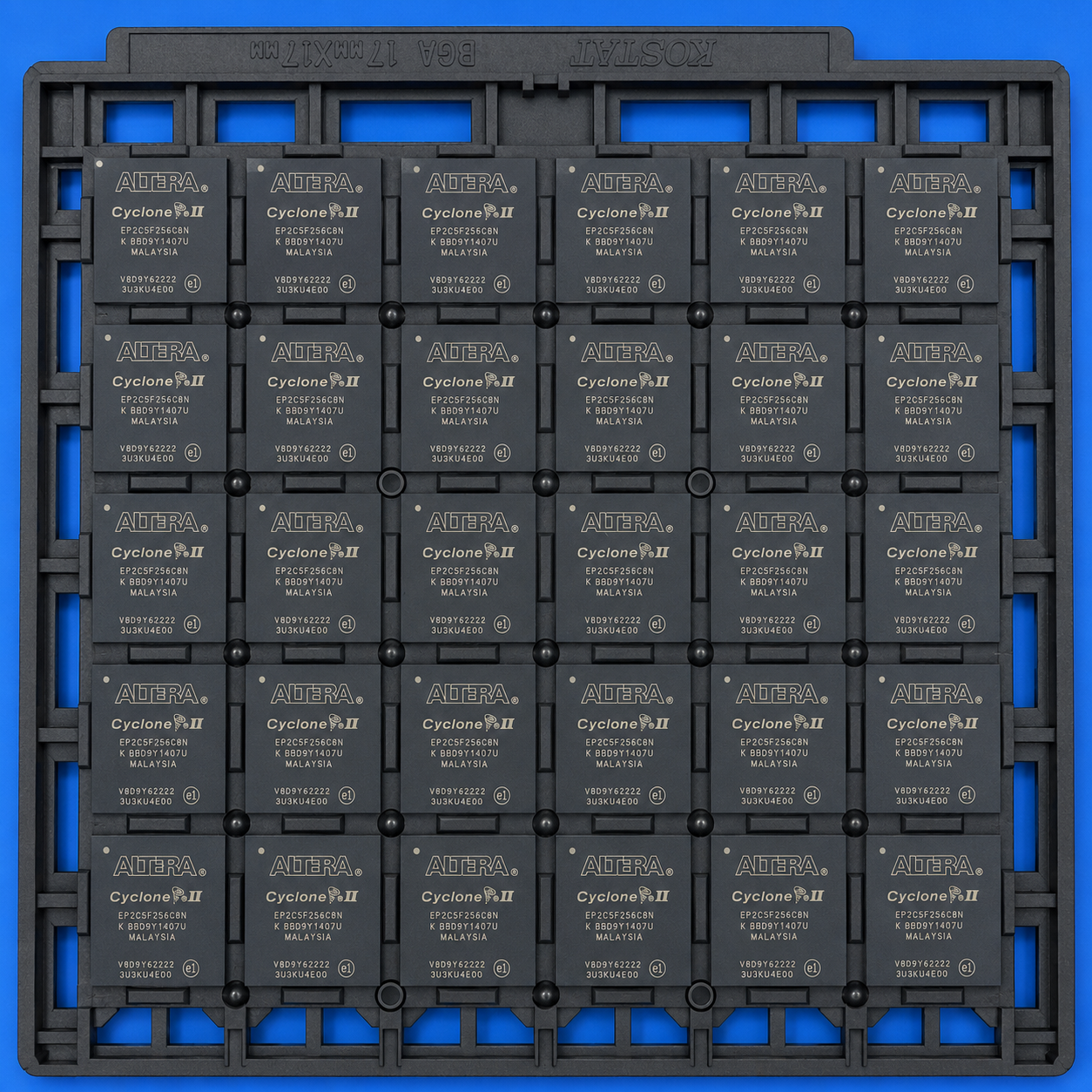

Manufacturer: Altera
Part Number: EP2C5F256C8N
Date Code: 1407

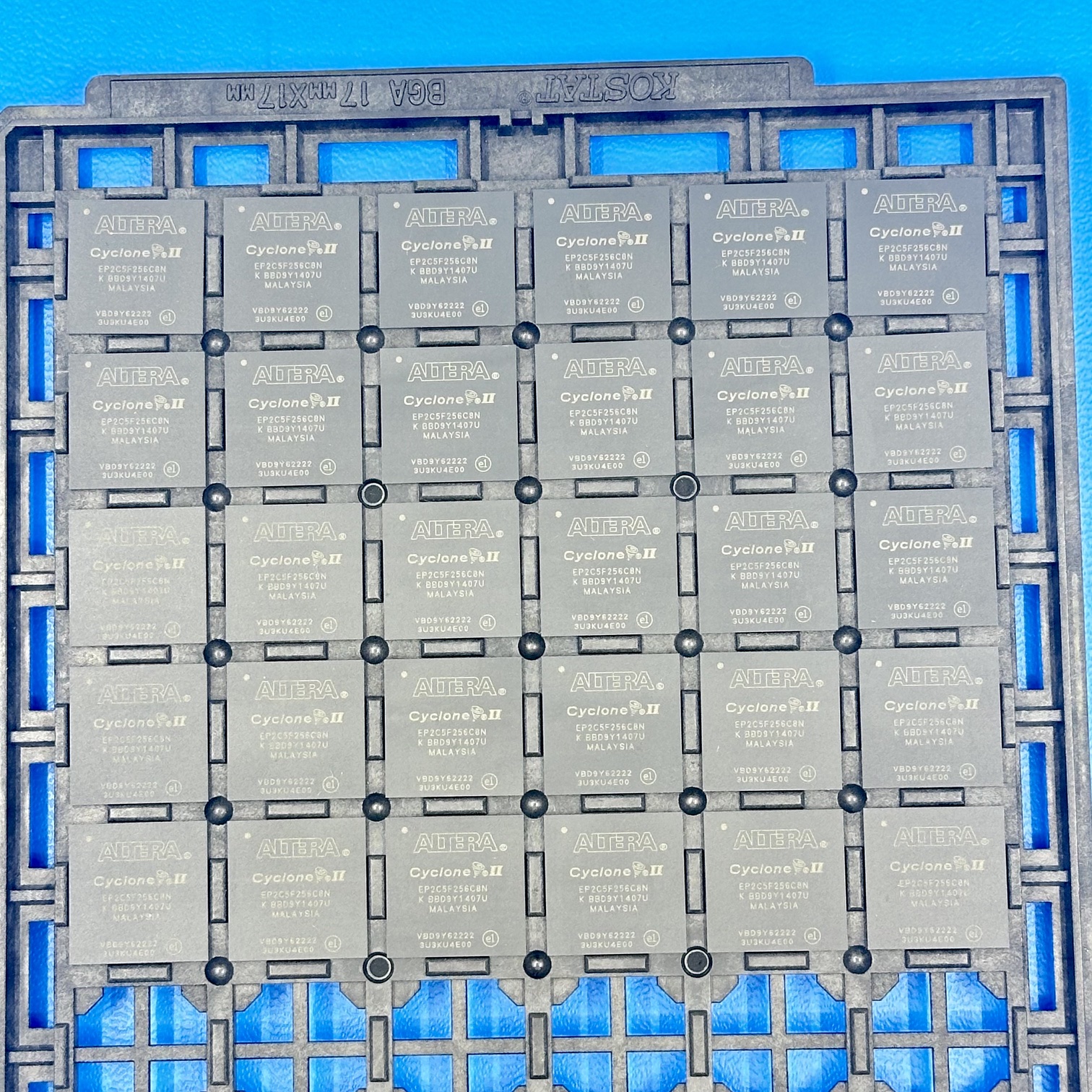

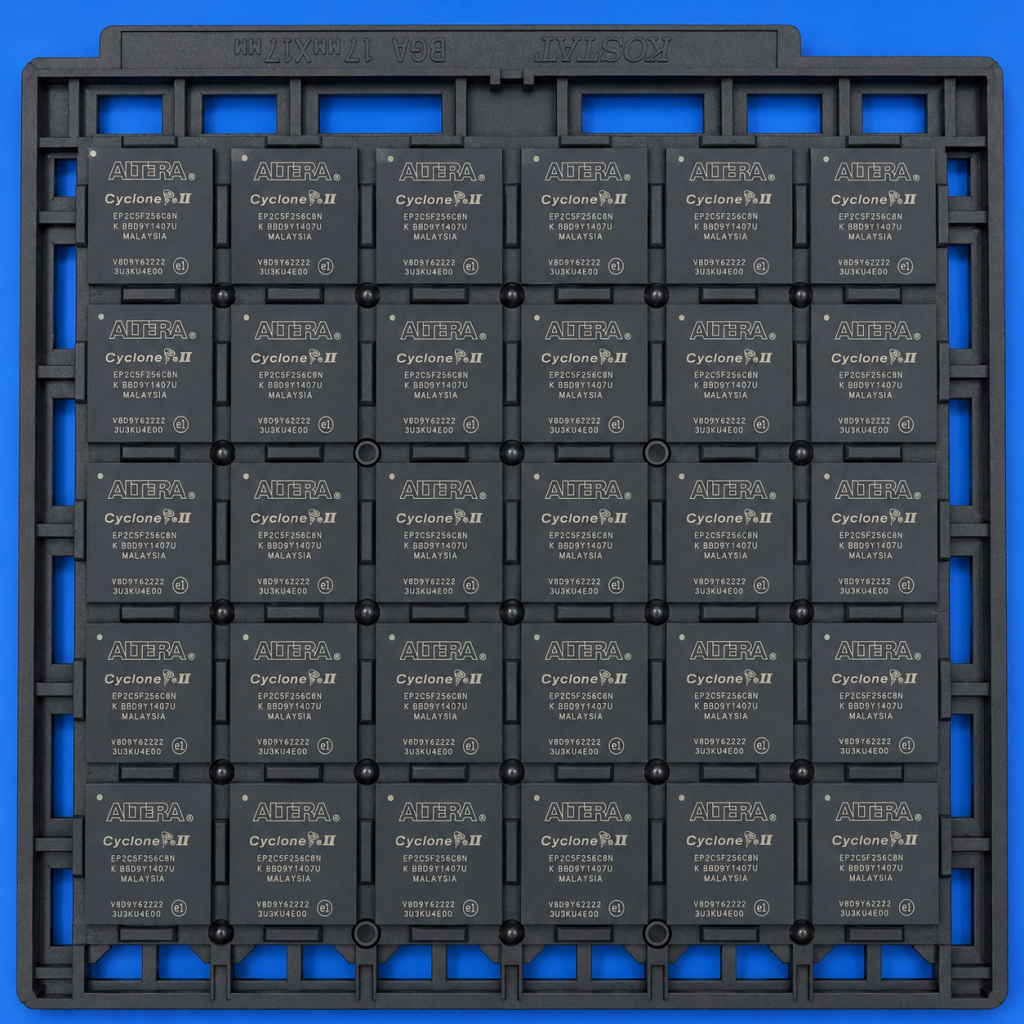

Quantity Available: 30 pieces
Product Type: Field Programmable Gate Array
FPGA Family: Cyclone II
Number of Logic Elements: 4,608
Number of I/O: 158
Total RAM Bits: 119,808
Embedded Multipliers: 13
Number of PLLs: 2
Core Voltage: 1.2 V nominal
Package Type: 256-FBGA
Mounting Style: Surface Mount
Speed Grade: C8
Operating Temperature: Commercial
Lead Finish / Compliance: Pb-free / RoHS
Key Features
Cyclone II field programmable gate array
4,608 logic elements
158 user I/O pins
119,808 total RAM bits
13 embedded multiplier blocks
2 phase-locked loops
256-FBGA surface-mount package
Commercial temperature grade
Pb-free RoHS-compliant device
Suitable for legacy Altera FPGA designs
Applications
Industrial control systems
Embedded logic designs
Communications equipment
Signal processing hardware
Test and measurement equipment
Legacy board repair
Prototype FPGA development
Interface control circuits
Data acquisition systems
Replacement inventory for older designs
Product Description

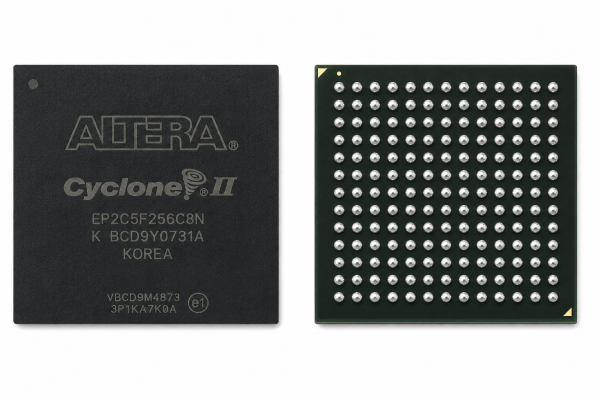

The EP2C5F256C8N from Altera is a Cyclone II field programmable gate array. It supports embedded logic, control, signal processing, and interface applications. This FPGA provides 4,608 logic elements and 158 user I/O pins. It also includes 119,808 total RAM bits, 13 embedded multiplier blocks, and 2 phase-locked loops. In addition, the 256-FBGA package helps save space on compact circuit boards.
This part works well in systems that need programmable digital logic. It can help replace custom logic or support older board designs. Because it belongs to the Cyclone II family, the EP2C5F256C8N is useful for legacy Altera FPGA platforms. As a result, engineers often use it in industrial controls, communication equipment, test fixtures, interface boards, and data acquisition hardware.
The C8 speed grade identifies the timing grade for this ordering code. Also, the commercial temperature rating fits controlled electronic environments. The device uses a 1.2 V nominal core supply. Therefore, buyers should confirm the board design before purchase. They should also review the voltage rails, package footprint, and assembly requirements.
This FPGA can support repair, maintenance, and production work. It is especially useful when an older Cyclone II design needs the exact matching part number. In addition, it can help extend the life of existing hardware. Buyers should confirm package, speed grade, I/O count, and programming requirements before use.
Cyndtek® supplies electronic components for OEM, repair, test, and production applications. To request pricing or availability for EP2C5F256C8N, visit our Cyndtek shop or contact sales@cyndtek.com with your quantity, target price, and required delivery schedule.
