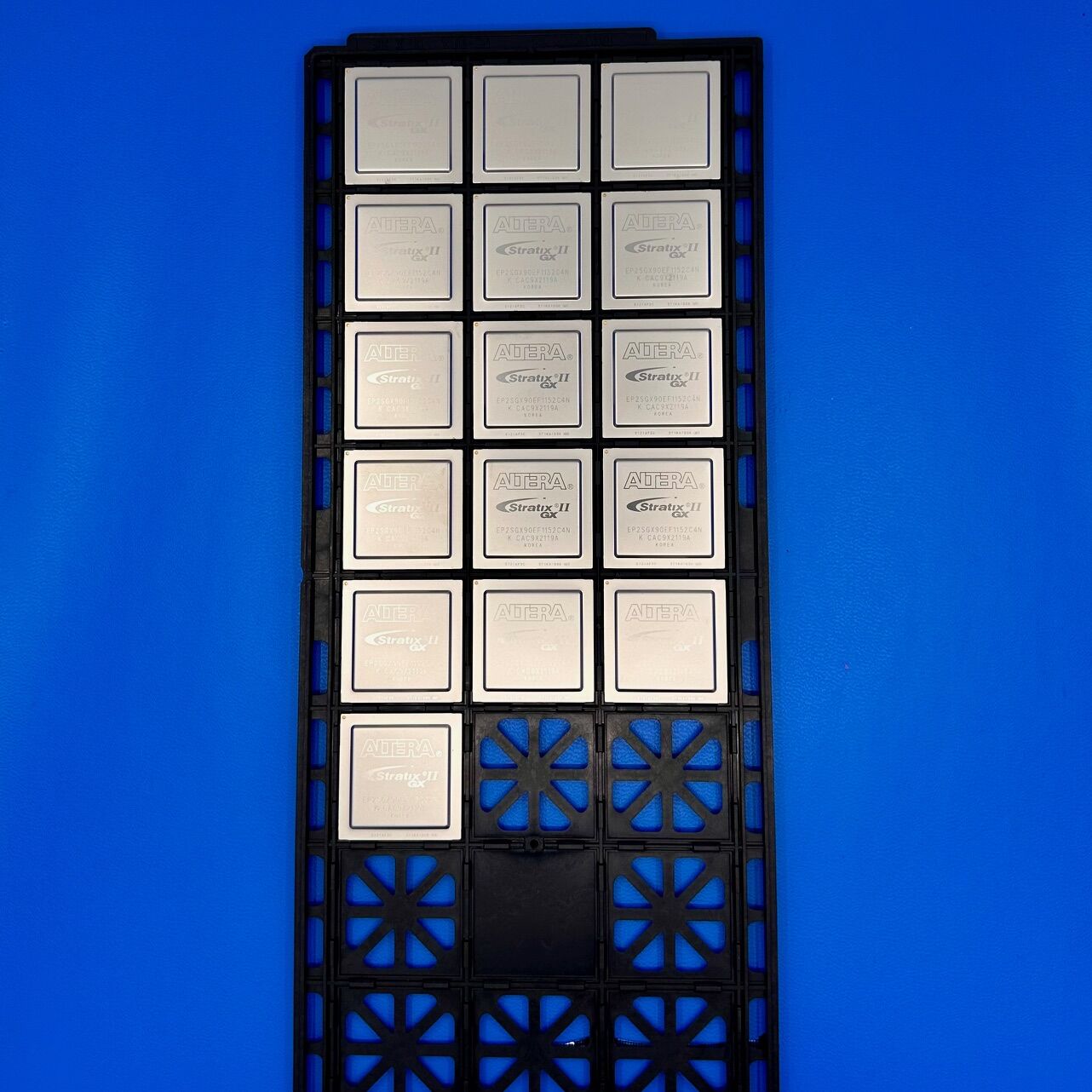

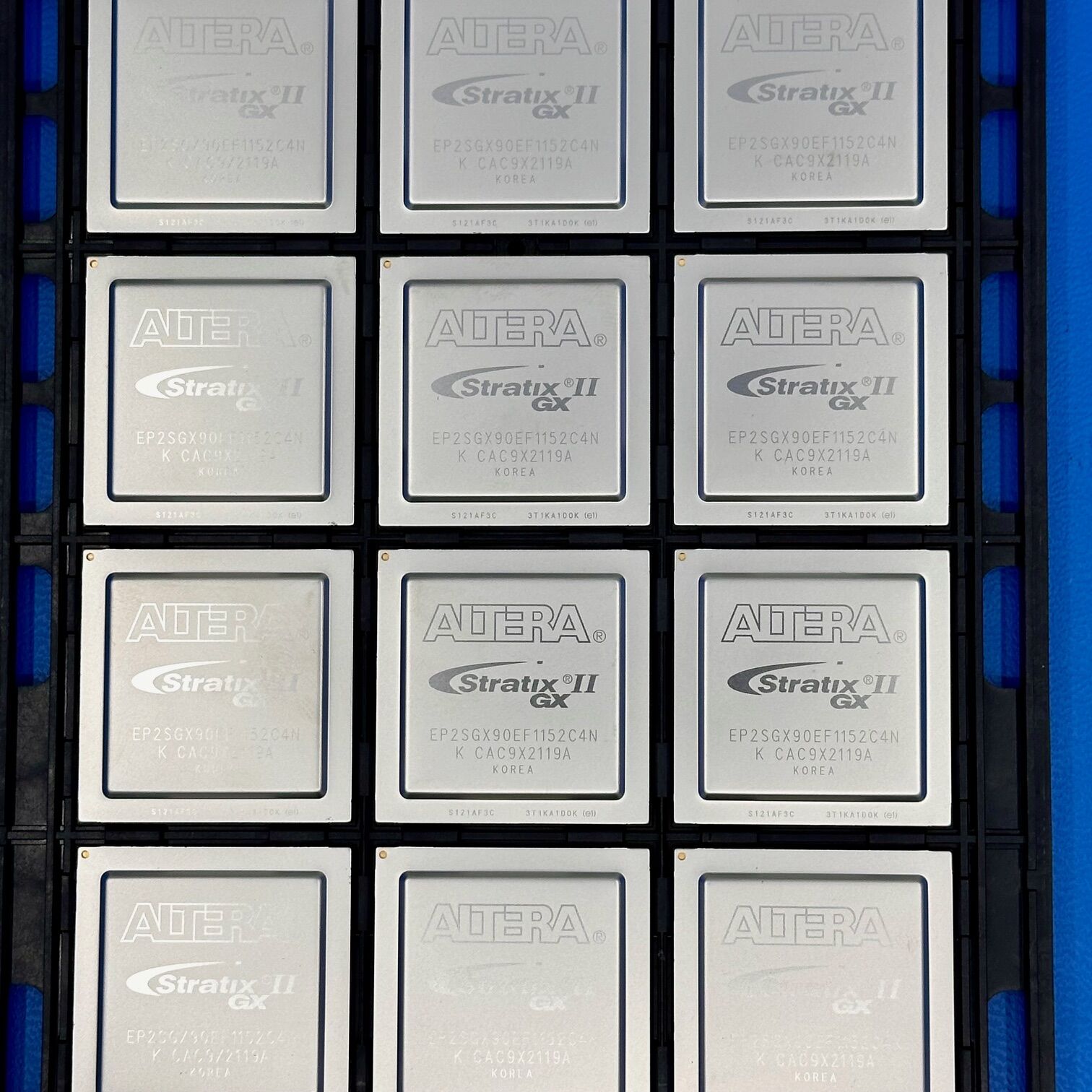

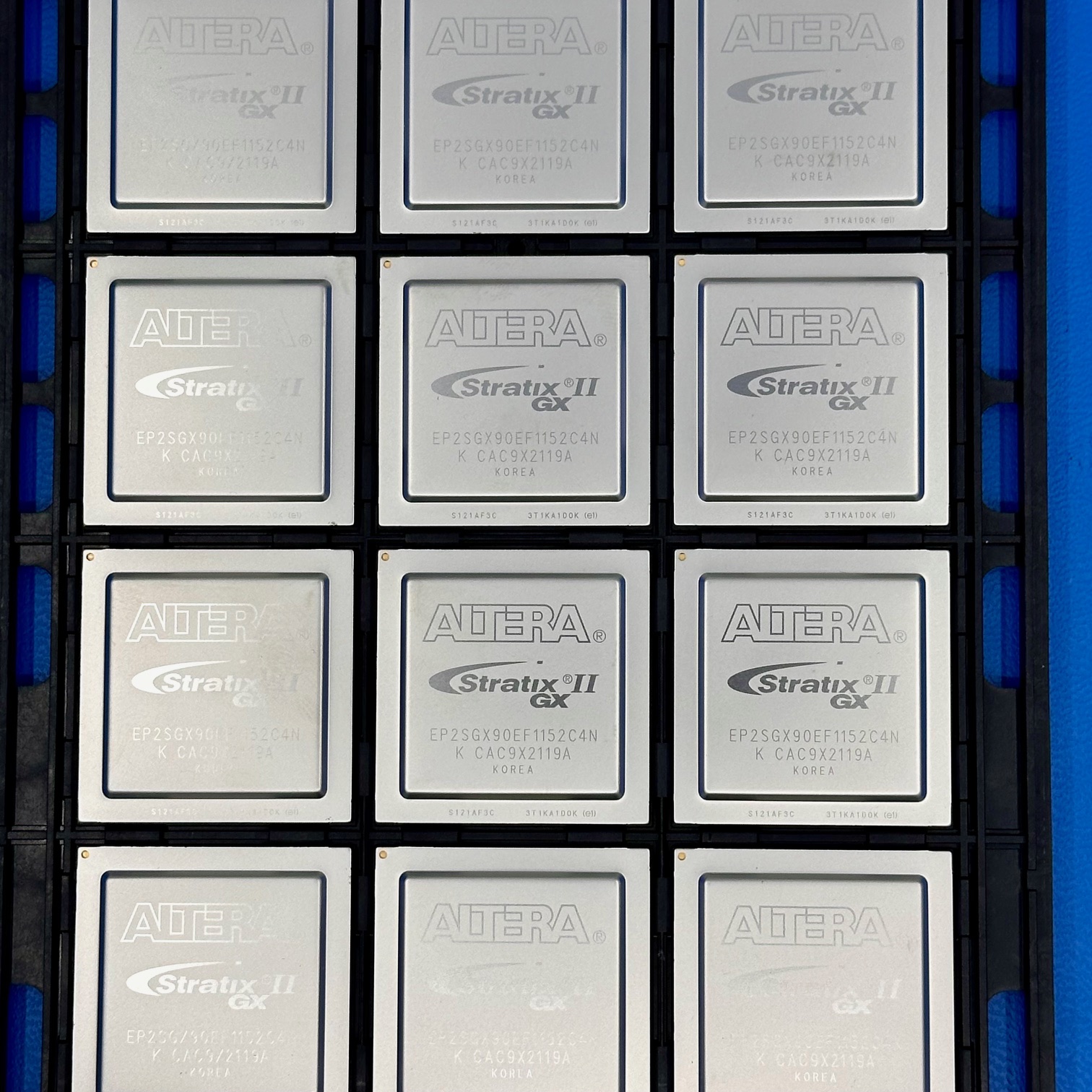

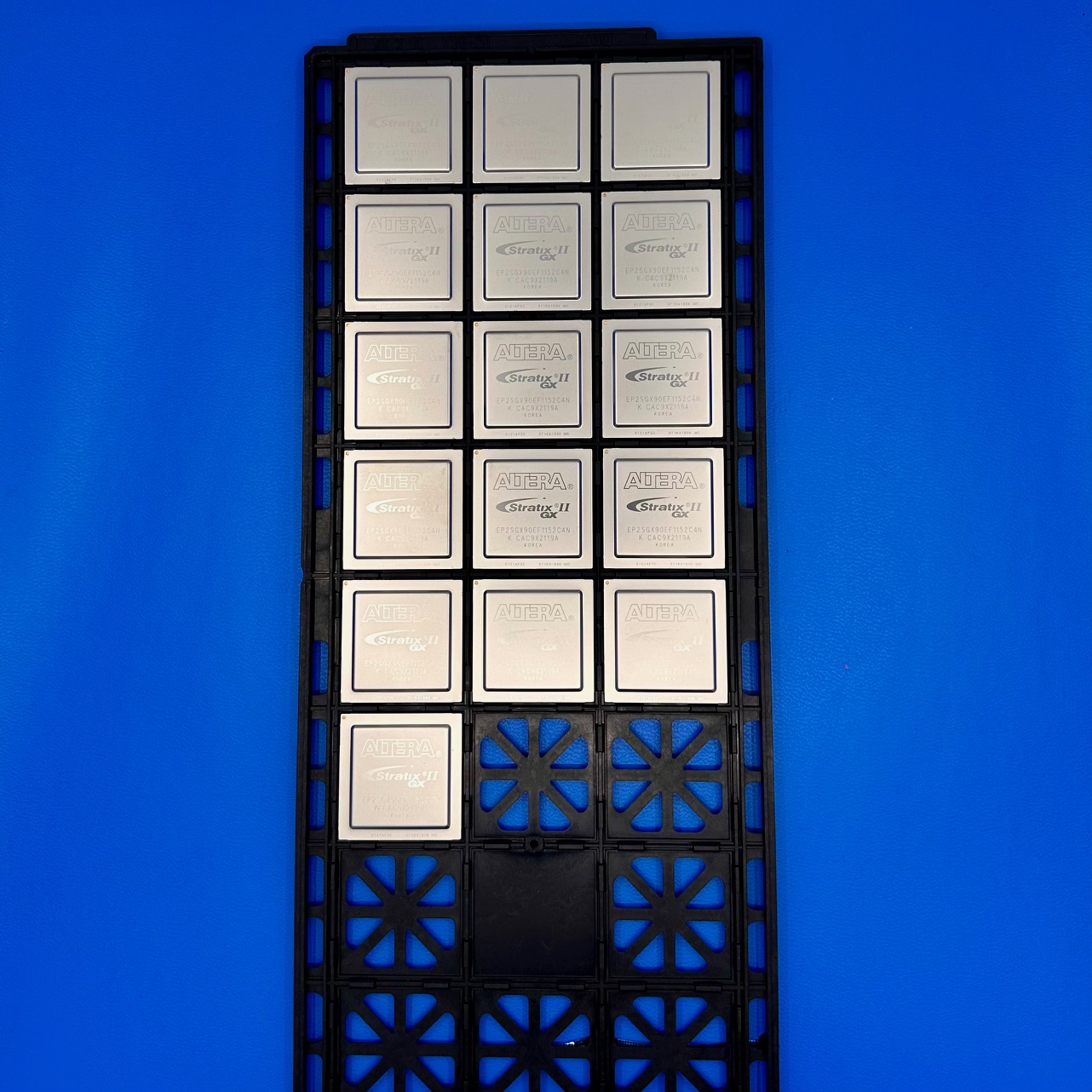

EP2SGX90EF1152C4N Specifications
Manufacturer: Intel (formerly Altera)
Part Number: EP2SGX90EF1152C4N
Product Type: FPGA – Field Programmable Gate Array
Family: Stratix® II GX
Logic Elements: 90,000
Embedded Memory: 4.5 Mbits
Number of I/Os: 558
Transceivers: 20 (up to 6.375 Gbps)
Operating Voltage: 1.2V Core, 3.3V I/O
Package / Case: 1152-FBGA
Mounting Type: Surface Mount
Operating Temperature Range: 0°C to +85°C (Commercial)
RoHS Status: RoHS Compliant
Key Features
The EP2SGX90EF1152C4N is a high-performance FPGA from Intel’s Stratix® II GX series, offering 90,000 logic elements and 4.5 Mbits of embedded memory. It features 20 high-speed transceivers capable of data rates up to 6.375 Gbps, making it suitable for demanding communication applications. The device supports various I/O standards and protocols, providing flexibility in system design. Its 1152-FBGA package ensures efficient heat dissipation and reliable performance.
Applications
High-speed networking equipment
Telecommunications infrastructure
Data center systems
Broadcast and video processing
Test and measurement instruments
Military and aerospace systems
Product Overview
The EP2SGX90EF1152C4N FPGA is designed to meet the needs of high-bandwidth applications requiring robust data processing capabilities. Its 90,000 logic elements and substantial embedded memory allow for complex algorithm implementations and data buffering. The integrated transceivers support serial communication protocols, enabling seamless integration into modern communication systems. Additionally, the device’s support for various I/O standards enhances its adaptability across different platforms. Its surface-mount 1152-FBGA package facilitates efficient PCB routing and thermal management, ensuring reliable operation in demanding environments.
