EPF10K30ATC144-3N

EPF10K30ATC144-3N

$150.00

IC FPGA 1728 CELLS 128MHz 3.3V 144-TQFP
  • Manufacturer: Altera
  • Part Number: EPF10K30ATC144-3N

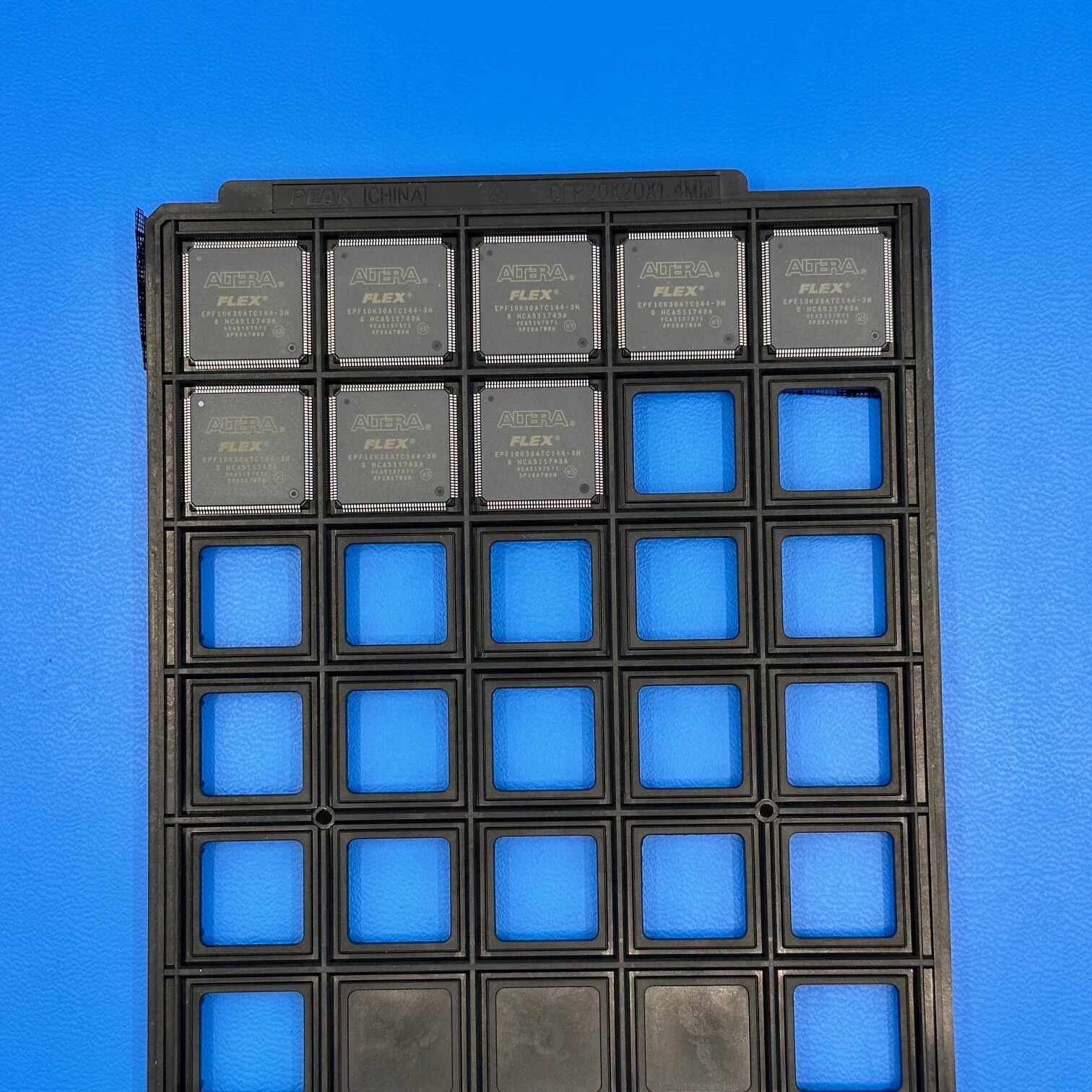

  • Packaging: Tray
  • Quantity: Each
  • Datecode: 1743

Availability: 8 in stock

SKU TSX062C Category Brand:

EPF10K30ATC144-3N Specifications

Manufacturer: Altera (now part of Intel)
Part Number: EPF10K30ATC144-3N
Product Type: Field Programmable Gate Array (FPGA)
Family: FLEX 10K
Logic Elements/Cells: 1,728
Logic Array Blocks (LABs): 216
Total RAM Bits: 12,288 bits
Number of I/O Pins: 102
Number of Gates: 30,000
Supply Voltage: 3.0 V to 3.6 V
Maximum Operating Frequency: 125 MHz
Package / Case: 144-TQFP (20×20 mm)
Mounting Type: Surface Mount
Operating Temperature Range: 0°C to +70°C
RoHS Status: RoHS Compliant

Key Features

The EPF10K30ATC144-3N is a member of Altera’s FLEX 10K family, offering a blend of high density and performance for complex digital designs. With 1,728 logic elements organized into 216 Logic Array Blocks (LABs), it provides substantial resources for implementing intricate logic functions. The device includes 12,288 bits of embedded RAM, facilitating efficient data storage and retrieval. Supporting a supply voltage range from 3.0 V to 3.6 V and achieving a maximum operating frequency of 125 MHz. As it ensures compatibility with various system power requirements while delivering high-speed operation. Housed in a 144-pin Thin Quad Flat Pack (TQFP) package, the EPF10K30ATC144-3N supports surface mount technology, promoting efficient PCB layout and assembly. Its operating temperature range of 0°C to +70°C makes it suitable for commercial applications.

Applications

Embedded systems requiring customizable logic solutions
Industrial automation and control systems
Communication equipment with complex signal processing needs
Consumer electronics demanding flexible hardware configurations
Medical devices with specific processing requirements

Product Overview

The EPF10K30ATC144-3N FPGA from Altera’s FLEX 10K series delivers a balance of performance and cost-effectiveness. Thus making it suitable for a wide range of applications. Its 1,728 logic elements and 102 user I/O pins provide ample resources for complex designs, while the 144-pin TQFP package ensures reliable integration into various systems. The inclusion of 12,288 bits of embedded RAM enhances its capability to handle data-intensive tasks efficiently. Operating at frequencies up to 125 MHz, this FPGA supports high-speed data processing. This is essential for applications in communications, industrial automation, and consumer electronics. Additionally the adherence to RoHS compliance standards underscores its environmental responsibility, aligning with global sustainability initiatives.
