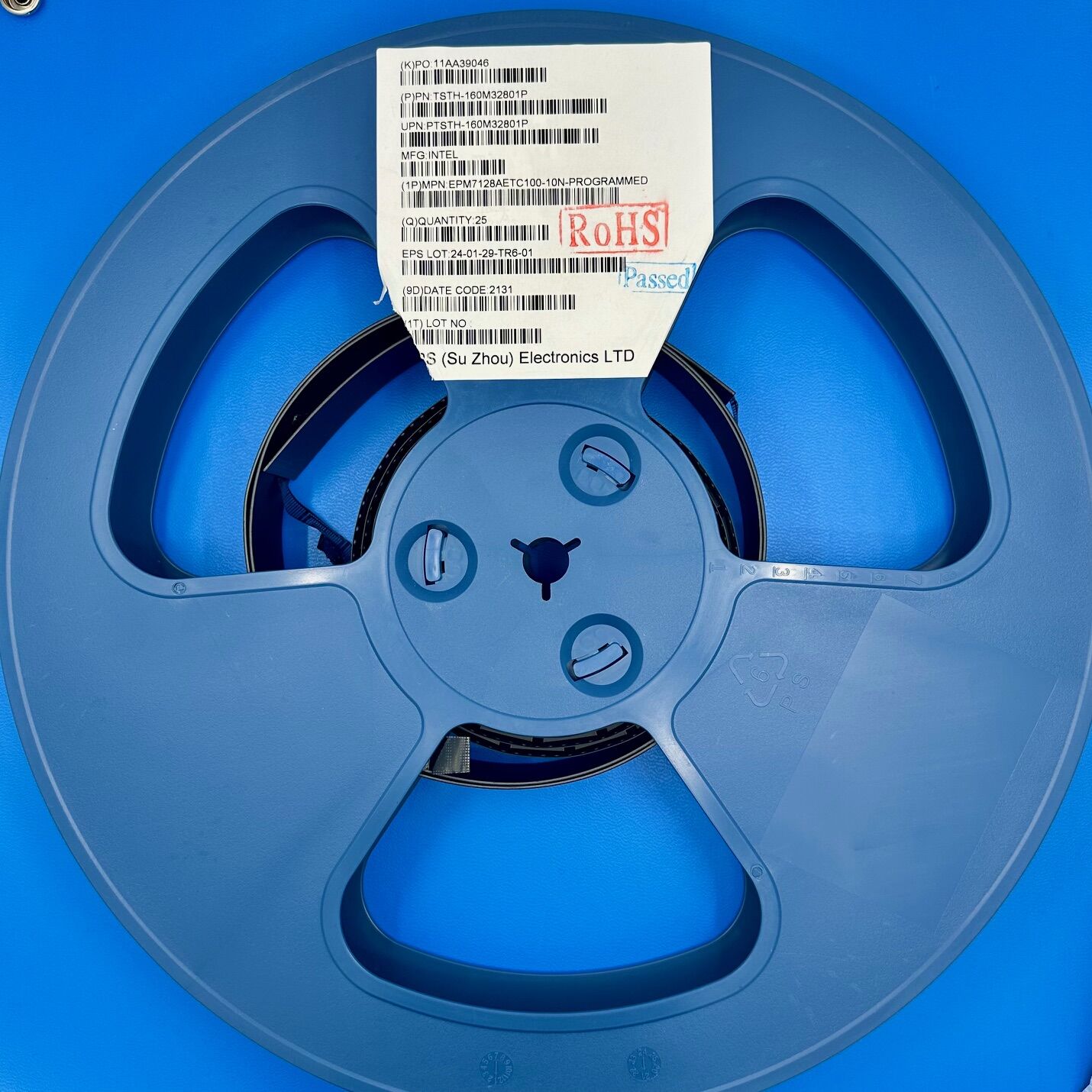

EPM7128AETC100-10N

EPM7128AETC100-10N Specifications

Manufacturer: Intel / Altera
Part Number: EPM7128AETC100-10N
Product Type: Complex Programmable Logic Device (CPLD)
Family: MAX® 7000A
Number of Macrocells: 128
Number of Logic Elements/Cells: 8
I/O Pins: 84
Propagation Delay: 10 ns
Operating Frequency: Up to 192.3 MHz
Supply Voltage Range: 3.0 V to 3.6 V
Operating Temperature Range: 0°C to +70°C
Mounting Type: Surface Mount
Package / Case: 100-TQFP (14 mm × 14 mm)
RoHS Status: RoHS Compliant

Key Features

The EPM7128AETC100-10N from Intel / Altera is a member of the MAX® 7000A family of CPLDs, designed to provide high-density programmable logic solutions. It features 128 macrocells organized into 8 logic array blocks, offering extensive combinational and sequential logic capabilities. With 84 general-purpose I/O pins, it facilitates flexible interfacing with other components. The device supports propagation delays as low as 10 ns and can operate at frequencies up to 192.3 MHz, making it suitable for high-speed applications. Operating within a supply voltage range of 3.0 V to 3.6 V, it ensures compatibility with 3.3 V systems. The EPM7128AETC100-10N is housed in a 100-pin TQFP package, supporting surface-mount technology for efficient PCB design. Compliance with RoHS standards underscores its environmental responsibility.

Applications

Digital signal processing.
Bus interface in computing systems.
Control logic implementation in industrial automation.
Glue logic for system integration.
State machine design in embedded systems.

Product Overview

Intel / Altera’s EPM7128AETC100-10N is engineered to deliver reliable and efficient programmable logic solutions for a wide range of applications. Its 128 macrocells and 84 I/O pins provide substantial flexibility for complex logic designs. The device’s high operating frequency and low propagation delay enable it to meet the demands of high-speed digital systems. Operating at a supply voltage compatible with 3.3 V systems and housed in a compact TQFP package, it facilitates seamless integration into modern electronic designs. The EPM7128AETC100-10N’s adherence to RoHS compliance reflects Intel / Altera’s commitment to environmentally friendly manufacturing practices.
