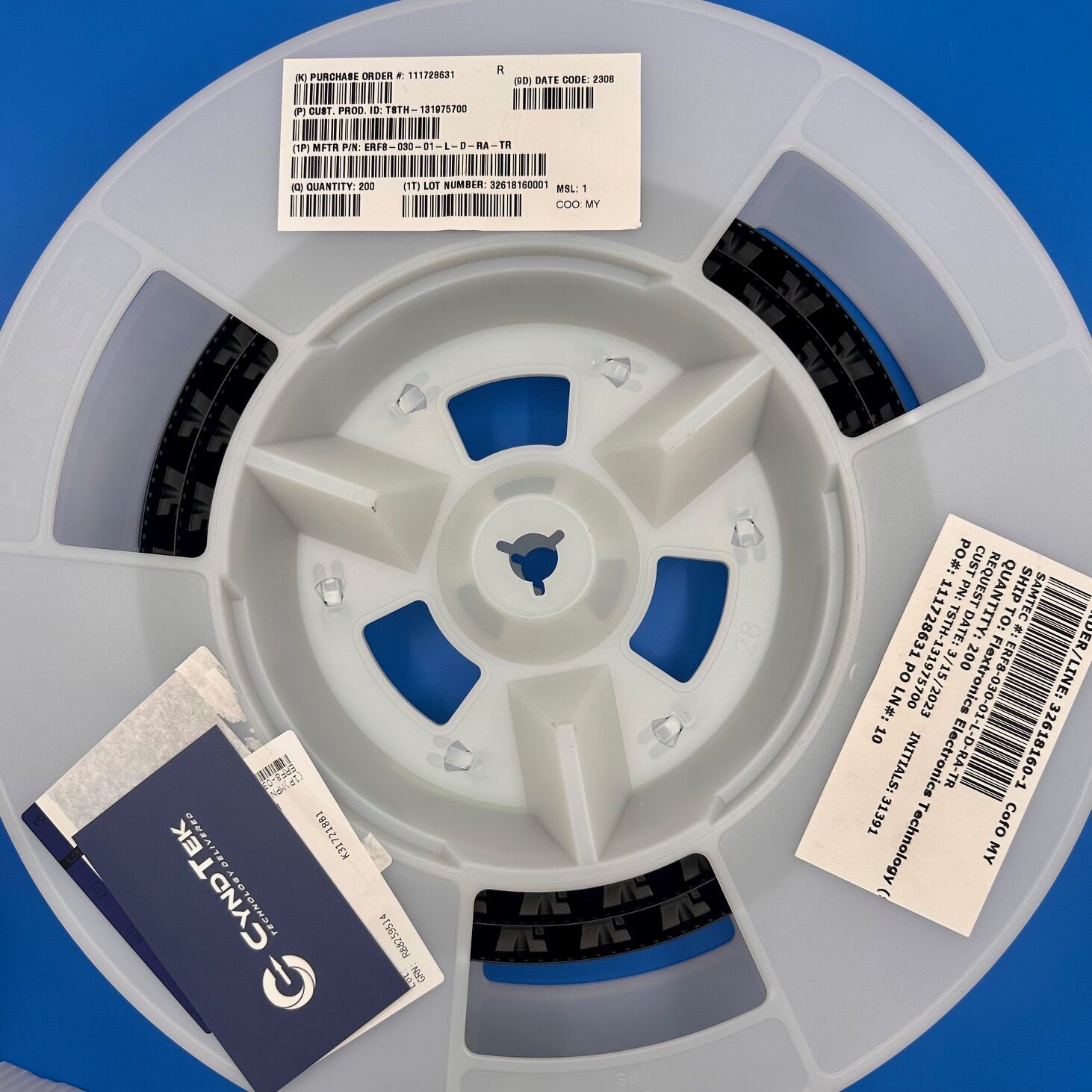

ERF8-030-01-L-D-RA-TR

ERF8-030-01-L-D-RA-TR Specifications

Manufacturer: Samtec
Part Number: ERF8-030-01-L-D-RA-TR
Product Type: 0.80 mm Edge Rate® Rugged High-Speed Socket
Number of Positions: 60
Number of Rows: 2
Pitch: 0.80 mm
Mounting Type: Surface Mount, Right Angle
Contact Type: Socket, Outer Shroud Contacts
Contact Material: Beryllium Copper
Finish Contact: Gold
Contact Finish Thickness: 10.0 µin (0.25 µm)
Insulator Material: Black LCP (Liquid Crystal Polymer)
Features: Board Guide, Mounting Flange
Mated Stacking Heights: 7 mm to 12 mm
Height Above Board: 6.25 mm
Current Rating: 1.4 A max per contact
Operating Temperature Range: -55°C to +125°C
RoHS Status: RoHS Compliant

Key Features

The ERF8-030-01-L-D-RA-TR from Samtec is a 0.80 mm pitch Edge Rate® rugged high-speed socket designed for high-performance board-to-board interconnect applications. It features 60 positions arranged in two rows, with a right-angle surface mount configuration that facilitates efficient use of PCB space. The Edge Rate® contact system provides robust mechanical and electrical performance, supporting data rates up to 28 Gbps. Constructed with beryllium copper contacts plated with 10 µin (0.25 µm) of gold, it ensures reliable signal integrity and durability. The insulator is made of black LCP, offering high-temperature resistance and mechanical stability.

Additional features include board guides and mounting flanges for secure and accurate placement during assembly. The connector supports mated stacking heights ranging from 7 mm to 12 mm, providing flexibility in design. With a current rating of 1.4 A per contact and an operating temperature range of -55°C to +125°C, it is suitable for demanding environments. Compliance with RoHS standards underscores its environmental responsibility.

Applications

High-speed data transmission in telecommunications equipment.
Board-to-board interconnects in computing devices.
Signal routing in industrial automation systems.
Mezzanine card connections in aerospace electronics.
High-density interconnects in medical imaging equipment.

Product Overview

Samtec’s ERF8-030-01-L-D-RA-TR is engineered to meet the requirements of modern high-speed electronic systems. Its 0.80 mm pitch and Edge Rate® contact system provide excellent signal integrity and mechanical robustness, making it ideal for applications requiring reliable high-speed data transmission. The right-angle surface mount design allows for compact and efficient PCB layouts, while the inclusion of board guides and mounting flanges ensures precise and secure assembly. The use of high-quality materials, such as beryllium copper contacts and black LCP insulators, contributes to the connector’s durability and performance across a wide temperature range. Supporting mated stacking heights from 7 mm to 12 mm, it offers design flexibility to accommodate various board spacing requirements. Overall, the ERF8-030-01-L-D-RA-TR combines high-speed performance, mechanical reliability, and design versatility, making it a suitable choice for a wide range of demanding applications.
