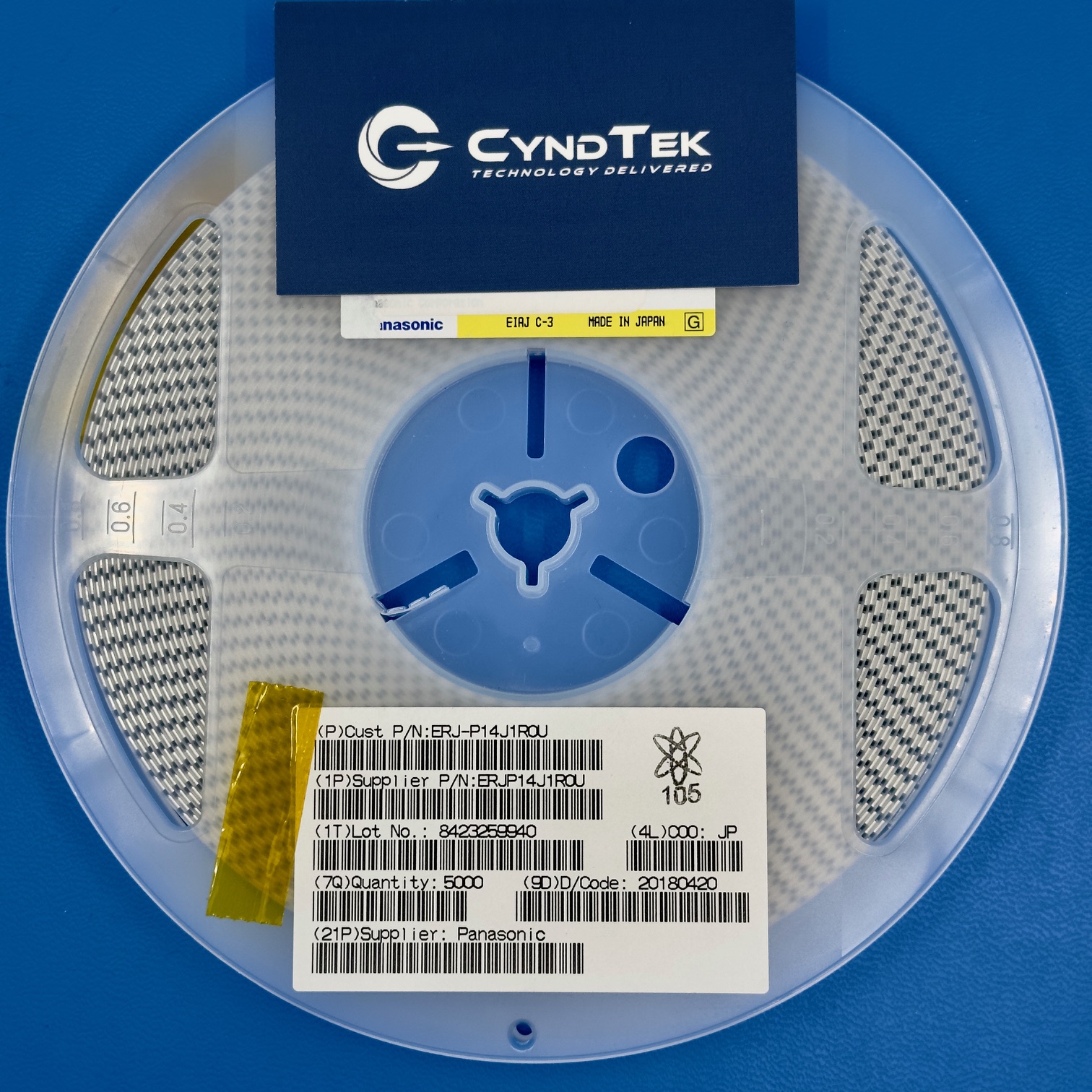

ERJ-P14J1R0U Specifications
Manufacturer: Panasonic
Part Number: ERJ-P14J1R0U
Product Type: Thick Film Chip Resistor
Resistance: 1 Ohm
Resistance Tolerance: ±5%
Power Rating: 0.5 W
Package Size: 1210 SMD
Mounting Type: Surface Mount
Resistor Technology: Thick Film
Temperature Coefficient: ±200 ppm/°C
Operating Temperature Range: -55°C to +155°C
Termination Style: Wraparound SMD Termination
Applications Class: Current Sense and General Purpose Electronics
Packaging: Factory
Key Features
The ERJ-P14J1R0U is a thick film surface mount resistor designed for compact electronic circuits requiring moderate power handling. It provides a resistance value of 1 ohm with a ±5% tolerance and supports a power rating of 0.5 watt. Additionally, the 1210 package size allows improved heat dissipation compared to smaller chip resistors. Because the resistor uses Panasonic thick film technology, it provides dependable electrical performance and stable resistance characteristics. As a result, designers frequently use this resistor in current sensing and power control circuits.
Applications
Power supply current sensing circuits
Motor control current monitoring
DC-DC converter feedback networks
Battery management systems
Industrial control electronics
LED driver current limiting
Embedded power regulation circuits
General purpose electronic assemblies
Product Overview
The ERJ-P14J1R0U resistor from Panasonic supports electronic designs that require reliable resistance values and moderate power dissipation. First, the 1210 surface mount package provides increased thermal capacity compared to smaller resistor packages. Therefore, it is well suited for circuits that monitor or control electrical current.
Additionally, the thick film construction provides stable electrical performance across a wide temperature range. Because electronic systems often operate in varying environmental conditions, this stability supports long-term circuit reliability.
Moreover, the wraparound termination design supports dependable solder joints during automated assembly processes. This feature helps maintain consistent electrical connections in high-volume manufacturing environments.
Overall, the ERJ-P14J1R0U offers reliable performance for current sensing and general electronic circuit applications.
