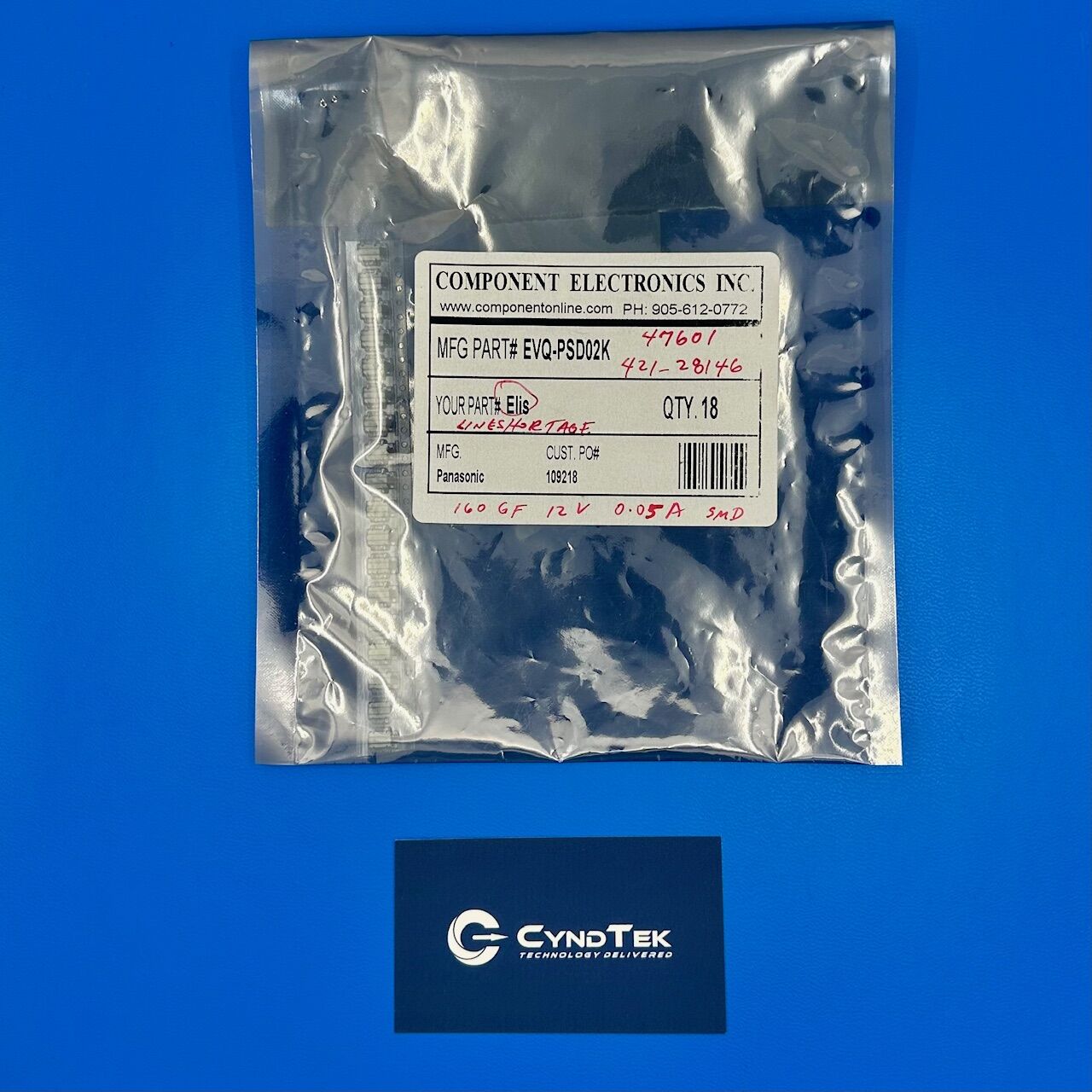

EVQ-PSD02K Specifications
Manufacturer: Panasonic
Part Number: EVQ-PSD02K
Product Type: Tactile switch
Switch Function: Momentary, normally open
Actuation Style: Top actuated
Contact Configuration: SPST
Mounting Type: Surface mount
Operating Force: Standard actuation force
Contact Material: Metal alloy
Contact Rating: Low-level signal switching
Mechanical Life: High cycle rating
Body Style: Low-profile design
Terminal Style: Gull wing
Operating Temperature Range: -40 °C to +85 °C
Key Features
The EVQ-PSD02K provides reliable momentary switching for compact electronic designs. Additionally, the surface mount format supports automated assembly. Moreover, the low-profile body enables use in thin enclosures. Furthermore, consistent tactile feedback improves user interface reliability.
Applications
Consumer electronics user interfaces
Portable device control buttons
Industrial control panels
Medical device key inputs
Instrumentation front panels
Telecommunications equipment
Human machine interface modules
Compact embedded systems
Product Overview
The Panasonic EVQ-PSD02K tactile switch is designed for dependable input control in space-constrained electronics. Specifically, it offers a momentary normally open contact configuration suitable for signal-level switching. As a result, designers can implement reliable user input without increasing board complexity. Moreover, the top-actuated structure allows intuitive interaction in button-driven interfaces. Therefore, it fits well in handheld and panel-mounted designs.
In addition, the surface mount construction supports efficient automated manufacturing. Furthermore, the low-profile housing enables integration into slim product enclosures. Consequently, overall device thickness can be minimized. The switch also delivers consistent tactile response across repeated actuations. As a result, long-term usability is improved.
Because of its durable construction and high mechanical life, the EVQ-PSD02K performs reliably in frequently used interfaces. Moreover, the gull-wing terminals provide secure solder joints and stable PCB attachment. Therefore, mechanical and electrical reliability are maintained over time. The wide operating temperature range also supports use in varied environments. Consequently, it suits both consumer and industrial applications.
Overall, this tactile switch delivers compact size, dependable performance, and consistent feel. Therefore, it is a practical choice for designers needing reliable momentary input in modern electronic systems.
