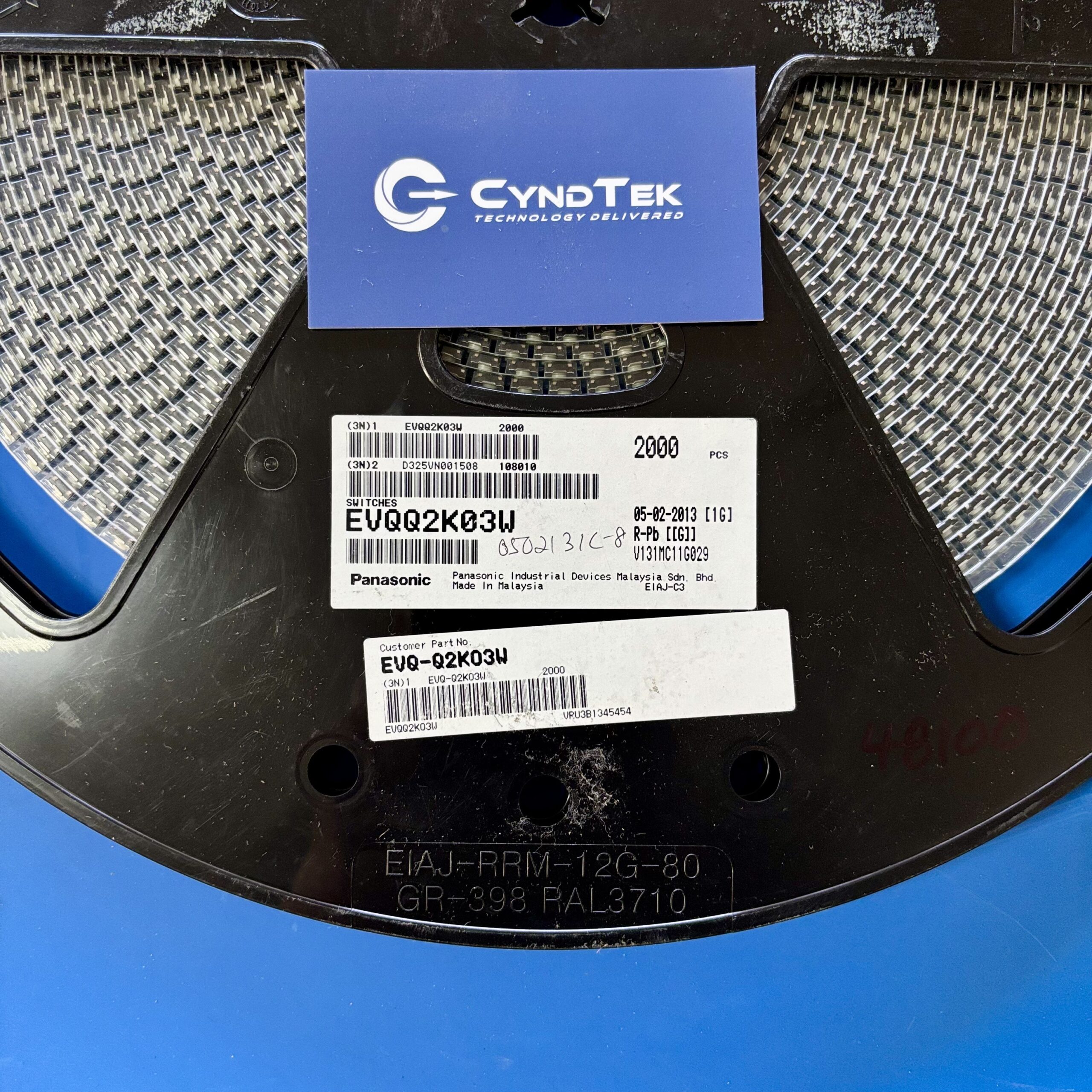

EVQ-Q2K03W Specifications
Manufacturer: Panasonic Electronic Components
Part Number: EVQ-Q2K03W
Product Type: Surface-Mount Tactile Switch
Circuit Configuration: SPST-NO (Single Pole Single Throw – Normally Open)
Switch Function: Off-Momentary (Push-to-Make)
Contact Rating: 20 mA at 15 VDC
Actuation Force: 1.3 N (130 gf)
Actuator Type: Round Button
Actuator Height: 3.1 mm
Travel Distance: 0.25 mm
Mechanical Life: 1,000,000 cycles
Mounting Type: Surface Mount with J-Bent Terminals
Dimensions: 6.5 mm (L) x 6.0 mm (W) x 3.1 mm (H)
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant
Key Features
The EVQ-Q2K03W from Panasonic Electronic Components is a compact surface-mount tactile switch designed for applications requiring reliable momentary contact. With an actuation force of 1.3 N and a travel distance of 0.25 mm, it provides tactile feedback suitable for user interfaces. The switch supports a contact rating of 20 mA at 15 VDC, accommodating low-power signal circuits. Its mechanical life of 1,000,000 cycles ensures durability in repetitive use scenarios. The J-bent terminals facilitate secure surface mounting, and the operating temperature range of -40°C to +85°C allows for deployment in various environmental conditions.
Applications
User interface controls in automotive infotainment systems
Power buttons in portable consumer electronics
Menu navigation switches in industrial control panels
Reset buttons in communication devices
Function selectors in medical diagnostic equipment
Product Overview
Panasonic’s EVQ-Q2K03W tactile switch offers a balance of compact design and reliable performance, making it suitable for various electronic applications. Its SPST-NO configuration and momentary action provide straightforward integration into circuits requiring temporary contact closure. The switch’s robust mechanical life and consistent actuation force contribute to a dependable user experience. Additionally, its compliance with RoHS standards reflects Panasonic’s commitment to environmentally responsible manufacturing.
