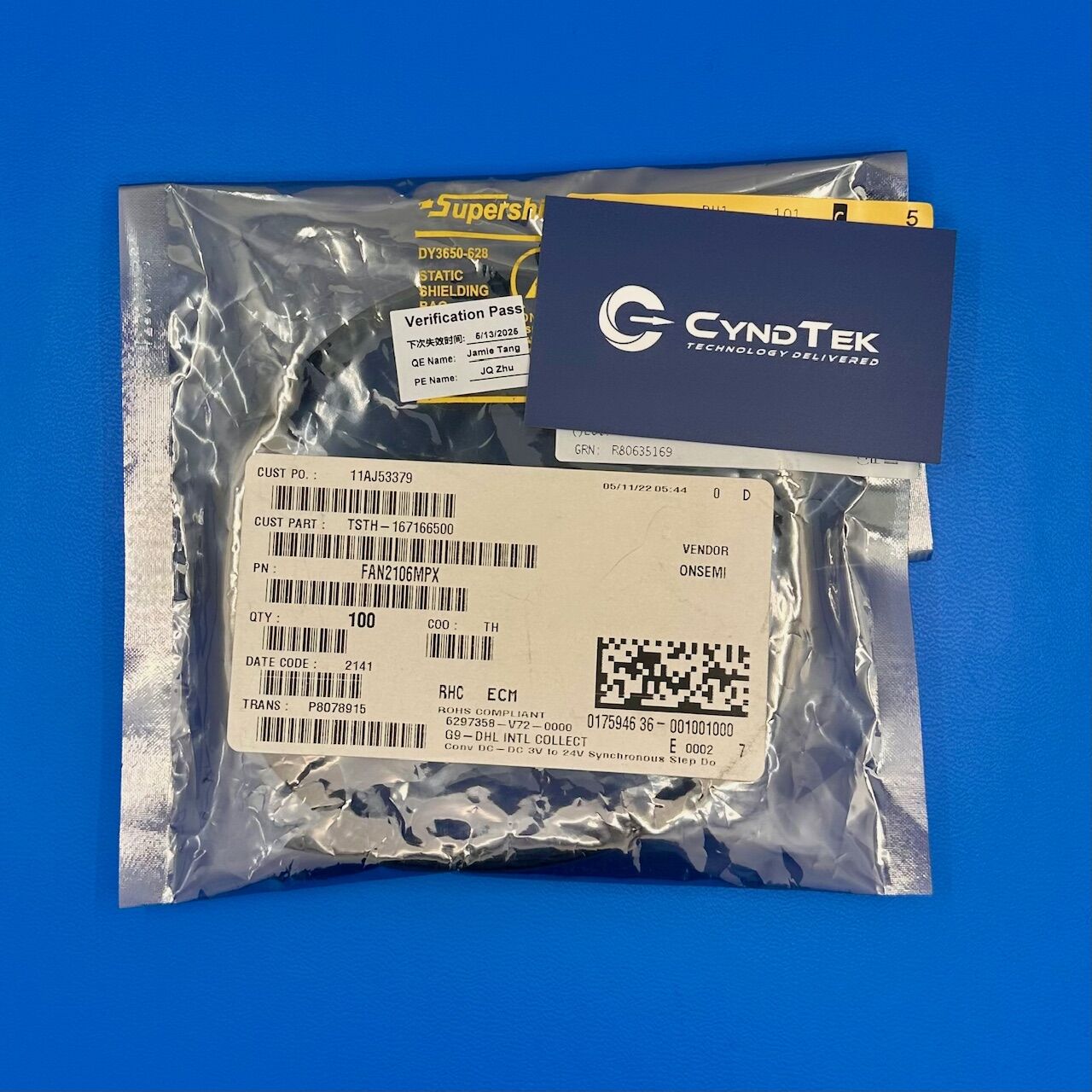

FAN2106MPX

FAN2106MPX Specifications

Manufacturer: onsemi
Part Number: FAN2106MPX
Product Type: Integrated Synchronous Buck Regulator
Input Voltage Range: 3 V to 24 V
Output Voltage Range: 0.8 V to 19.2 V
Output Current: Up to 6 A
Switching Frequency: 200 kHz to 600 kHz
Topology: Step-Down (Buck)
Synchronous Rectifier: Yes
Operating Temperature Range: -40°C to +85°C
Mounting Type: Surface Mount
Package / Case: 25-WQFN Exposed Pad (6 mm × 5 mm)
RoHS Status: RoHS Compliant

Key Features

The FAN2106MPX from onsemi is a highly efficient, compact, constant-frequency, 6 A, integrated synchronous buck regulator. It incorporates both synchronous MOSFETs and a controller/driver within a single package, simplifying high-current designs with minimal external components. The integration minimizes critical inductances, facilitating simpler and more efficient component layouts compared to discrete solutions. The FAN2106MPX offers external loop compensation, programmable switching frequency, and adjustable current limit, providing design flexibility and optimization. High-frequency operation enables all-ceramic capacitor solutions. The summing current-mode modulator employs lossless current sensing for current feedback and over-current protection. Voltage feedforward enhances performance over a wide input voltage range. The device includes protections against output over-voltage, under-voltage, over-current, and thermal shutdown, safeguarding it from damage during fault conditions. Additionally, the FAN2106MPX prevents pre-biased output discharge during startup in point-of-load applications.

Applications

High-efficiency DC-DC conversion in computing systems.
Power regulation in telecommunications equipment.
Industrial automation power supplies.
Point-of-load regulation in networking devices.
Distributed power systems in medical electronics.
Battery-powered applications requiring efficient step-down conversion.

Product Overview

The FAN2106MPX is engineered to meet the demands of modern electronic systems requiring efficient and compact power conversion solutions. Its wide input voltage range of 3 V to 24 V and adjustable output voltage from 0.8 V to 19.2 V make it versatile for various applications. The device supports up to 6 A output current, suitable for high-power requirements. With a programmable switching frequency between 200 kHz and 600 kHz, designers can optimize efficiency and component sizing. The integrated synchronous rectifier enhances efficiency by reducing power losses. The FAN2106MPX’s compact 25-WQFN package facilitates space-constrained designs, while its robust protection features ensure reliable operation under various fault conditions. Overall, the FAN2106MPX offers a balance of performance, flexibility, and reliability for demanding power management applications.
