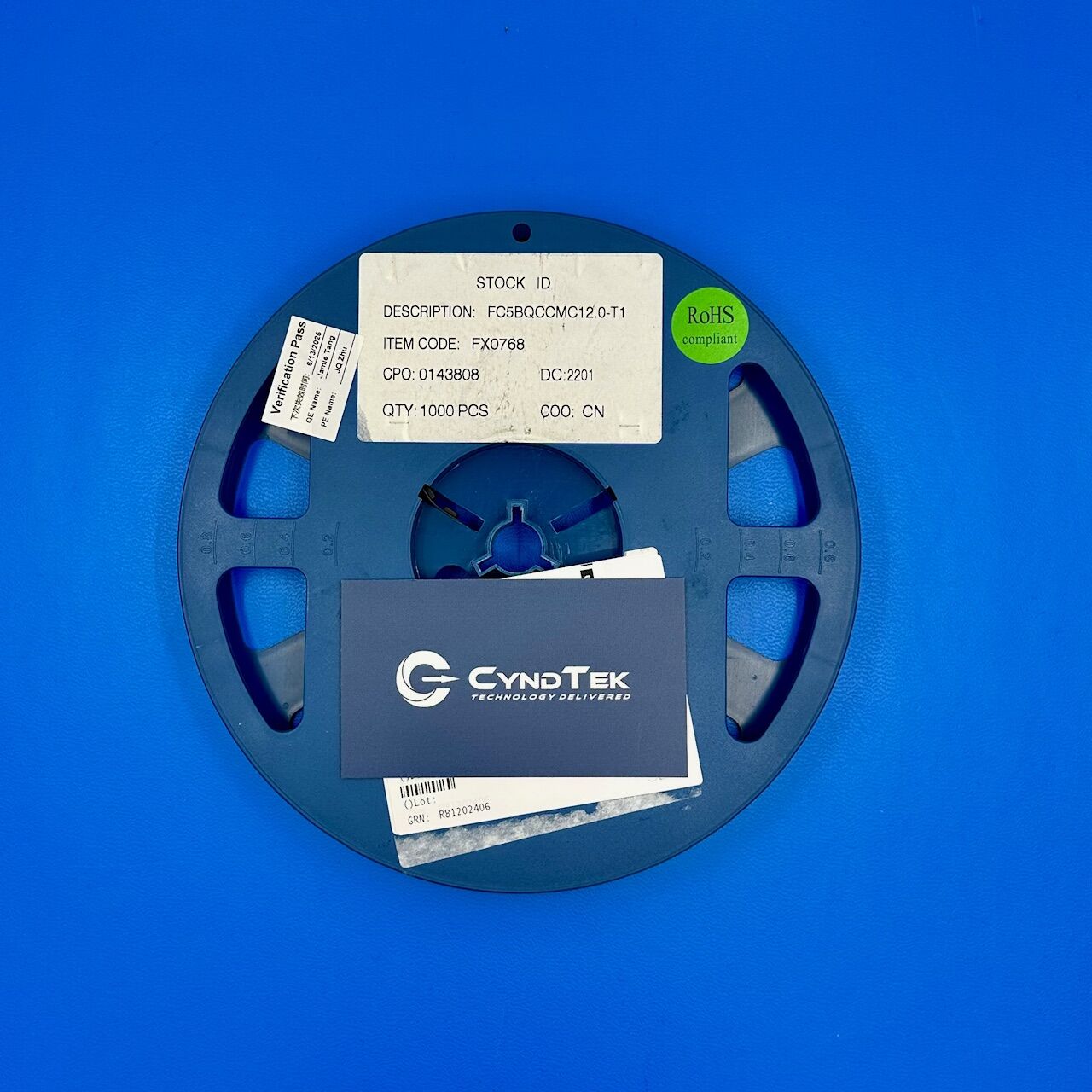

FC5BQCCMC12.0-T1

FC5BQCCMC12.0-T1 Specifications

Manufacturer: Fox Electronics
Part Number: FC5BQCCMC12.0-T1
Product Type: Surface-Mount Crystal
Frequency: 12.0 MHz
Freq Tolerance: ±30 ppm
Freq Stability: ±30 ppm
Load Capacitance: 20 pF
Equivalent Series Resistance (ESR): 80 Ω
Operating Mode: Fundamental
Drive Level: 0.5 mW
Aging (per year at 25°C): ±5 ppm
Shunt Capacitance (C0): 5 pF
Package / Case: 4-SMD, No Lead
Dimensions: 5.0 mm (L) x 3.2 mm (W) x 1.2 mm (H)
Operating Temperature Range: 0°C to +70°C
Termination Finish: Ag
Seal Method: Resin
RoHS Status: RoHS Compliant

Key Features

The FC5BQCCMC12.0-T1 is a 12.0 MHz surface-mount crystal from Fox Electronics, designed for applications requiring precise frequency control. With a frequency tolerance of ±30 ppm and stability of ±30 ppm over an operating temperature range of 0°C to +70°C, it ensures reliable performance in various electronic circuits. The crystal operates in fundamental mode with an equivalent series resistance of 80 Ω, suitable for standard oscillation circuits. Its compact 5.0 mm x 3.2 mm package allows for efficient use of PCB space, making it ideal for modern, compact electronic designs. The pre-formed resin sealing enhances durability and reliability in diverse environmental conditions.

Applications

Timing control in microprocessor-based systems
Clock generation in communication equipment
Frequency reference in wireless devices
Synchronization in industrial automation systems
Precision timing in consumer electronics

Product Overview

Fox Electronics’ FC5BQCCMC12.0-T1 crystal offers a dependable solution for engineers seeking accurate and stable frequency references in their designs. Its low frequency tolerance and stability parameters ensure minimal deviation, which is critical for maintaining system integrity in timing-sensitive applications. The surface-mount design facilitates automated assembly processes, enhancing manufacturing efficiency. Additionally, the crystal’s compliance with RoHS standards reflects Fox Electronics’ commitment to environmental responsibility. Overall, the FC5BQCCMC12.0-T1 combines precision, reliability, and compactness, making it a valuable component in a wide range of electronic applications.
