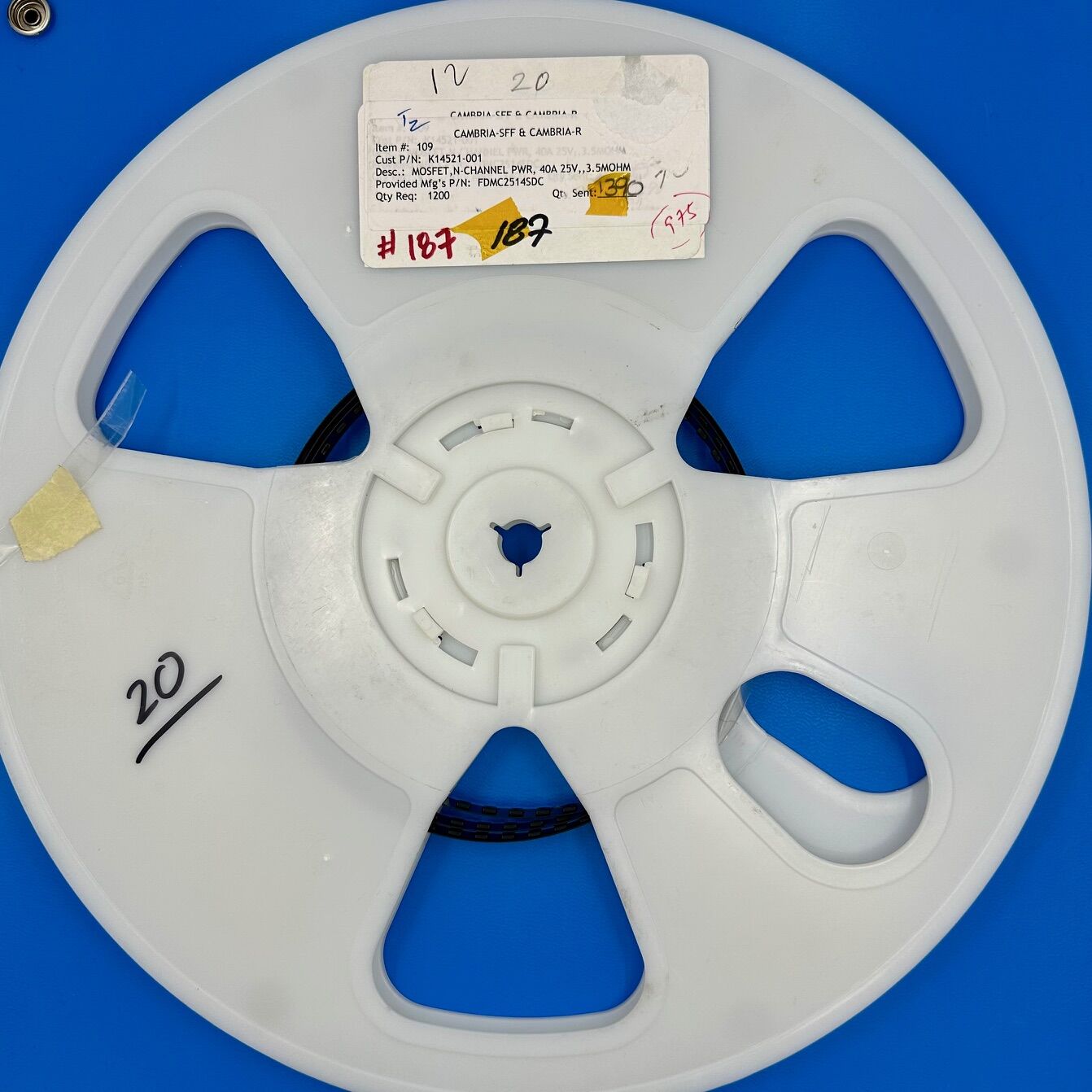

FDMC2514SDC

FDMC2514SDC Specifications

Manufacturer: onsemi
Part Number: FDMC2514SDC
Product Type: N-Channel MOSFET
Drain to Source Voltage: 25 V
Continuous Drain Current: 11.5 A
RDS(on): 0.0065 ohms at 4.5 V
Gate Charge: 7.2 nC
Power Dissipation: 2.5 W
Gate to Source Voltage: ±20 V
Total Gate Charge: 7.2 nC
Operating Temperature Range: -55°C to +150°C
Package Type: SuperSOT-3 (Power33)
Mounting Type: Surface Mount
Input Capacitance: 644 pF
Body Diode Type: Fast Recovery
Compliance: RoHS Compliant

Key Features

The FDMC2514SDC is an efficient N-Channel MOSFET optimized for low-voltage switching. It features a compact Power33 package and offers a low RDS(on) value of 6.5 milliohms, allowing for efficient power delivery. Its fast switching performance makes it well-suited for high-frequency applications. The part is capable of handling continuous drain currents up to 11.5 A. Its rugged body diode design ensures reliable reverse conduction. Additionally, the low gate charge reduces power losses and enables rapid signal transitions.

Applications

Voltage regulation modules in server motherboards
DC-DC converters in telecom base stations
Battery protection circuits in power tools
Motor drivers in drones and handheld devices
Load switching in industrial embedded systems

Product Overview

The FDMC2514SDC N-Channel MOSFET from onsemi offers high efficiency in compact designs. With a 25 V rating and ultra-low RDS(on), it supports low-voltage, high-current applications that require precise power control. Its Power33 package allows efficient thermal dissipation in surface mount environments. The part delivers fast switching and reduced gate drive losses, making it suitable for high-frequency switching systems. Whether used in power regulation, portable devices, or industrial controllers, this MOSFET performs reliably across various temperatures and conditions.
