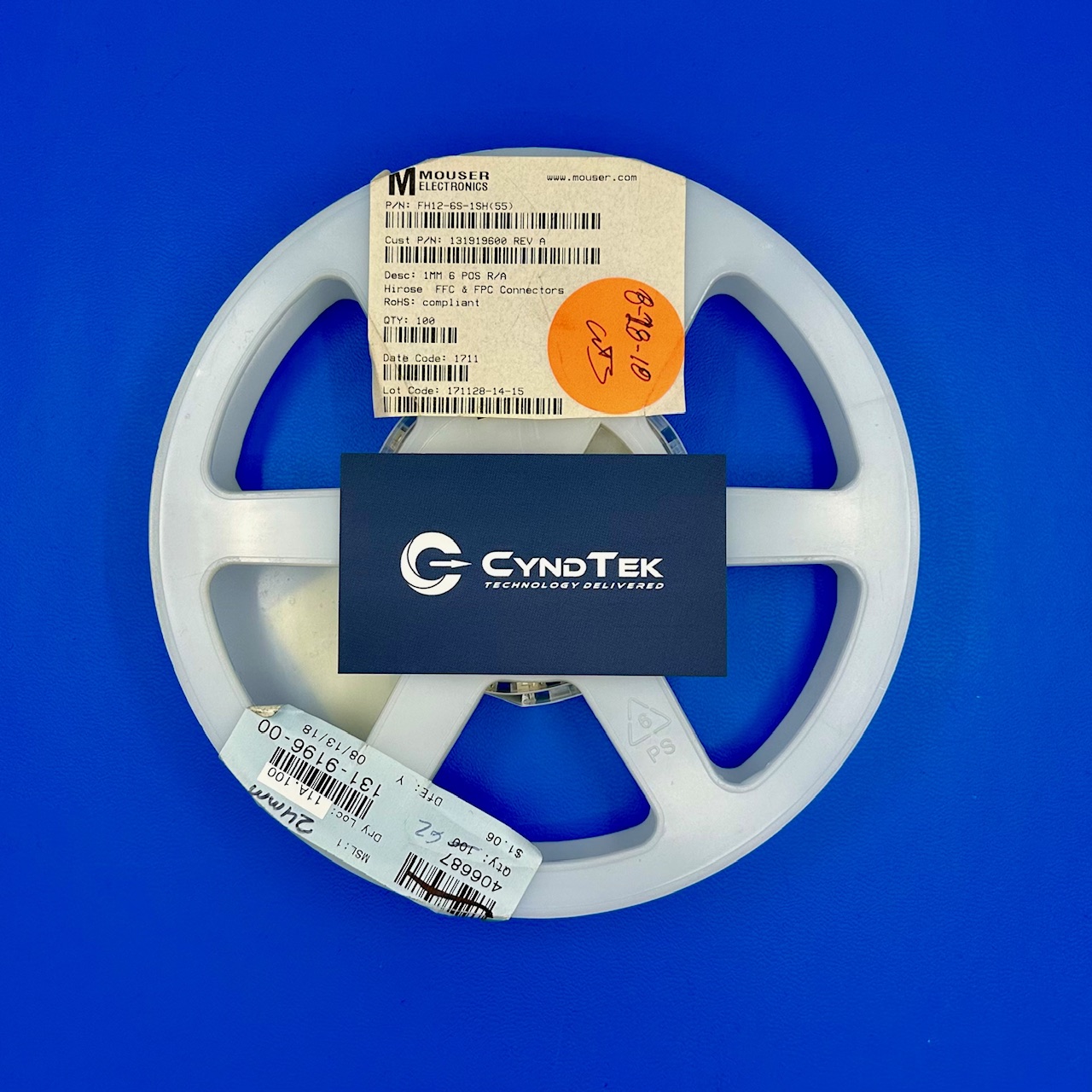

FH12-6S-1SH(55) Specifications
Manufacturer: Hirose Electric Co., Ltd.
Part Number: FH12-6S-1SH(55)
Product Type: FPC/FFC Connector
Number of Positions: 6
Mounting Type: Surface Mount
Contact Type: Female Socket
Contact Finish: Gold
Pitch: 1.0mm
Connector Type: ZIF (Zero Insertion Force)
Orientation: Right Angle
Actuator Type: Flip Lock
Termination Style: Solder
Operating Temperature Range: -40°C to +85°C
Current Rating: 0.5A
Voltage Rating: 50V AC/DC
Height Above PCB: 2.0mm
Package / Case: SMD
RoHS Status: RoHS Compliant
Key Features
The FH12-6S-1SH(55) is a right-angle, 1.0mm pitch FPC/FFC connector from Hirose, designed for reliable and compact flat cable connections. Its ZIF (Zero Insertion Force) mechanism with flip-lock actuator ensures secure mating with minimal mechanical stress. With 6 gold-plated contacts, this connector offers excellent conductivity and resistance to corrosion over time. Its low-profile 2.0mm height and surface-mount configuration support space-saving PCB designs. Designed to handle up to 0.5A per contact and operate in temperatures from -40°C to +85°C, this connector is ideal for slim, high-performance electronics requiring frequent flex cable mating cycles.
Applications
Consumer electronics
Portable audio and video devices
Medical diagnostic equipment
Test and measurement systems
Embedded and control boards
Industrial handhelds and scanners
Product Overview
The FH12-6S-1SH(55) from Hirose is an efficient, space-conscious FPC/FFC connector built to meet the needs of today’s miniaturized electronic devices. Featuring a 1.0mm pitch and right-angle orientation, it provides a compact footprint for boards with limited layout space. Its ZIF mechanism with flip-lock actuator allows for easy cable insertion while minimizing wear on contacts, making it ideal for applications where flex cables are frequently connected and disconnected. The gold-plated terminals ensure long-term signal reliability, and the 2.0mm height above the board helps maintain a low-profile design. Whether used in portable medical equipment, compact industrial systems, or consumer devices, the FH12-6S-1SH(55) is a dependable connector that balances size, durability, and electrical performance.
