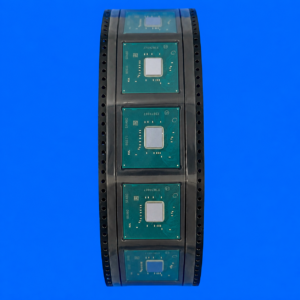

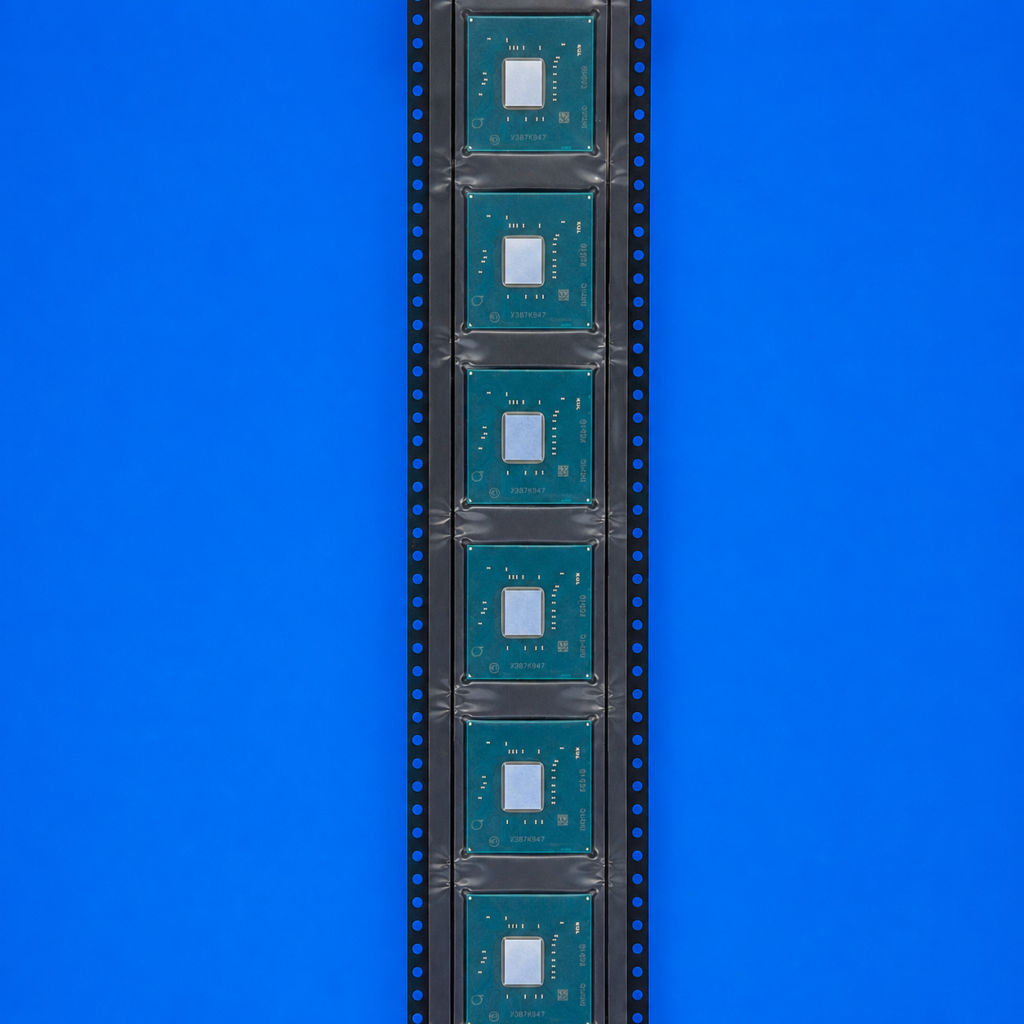

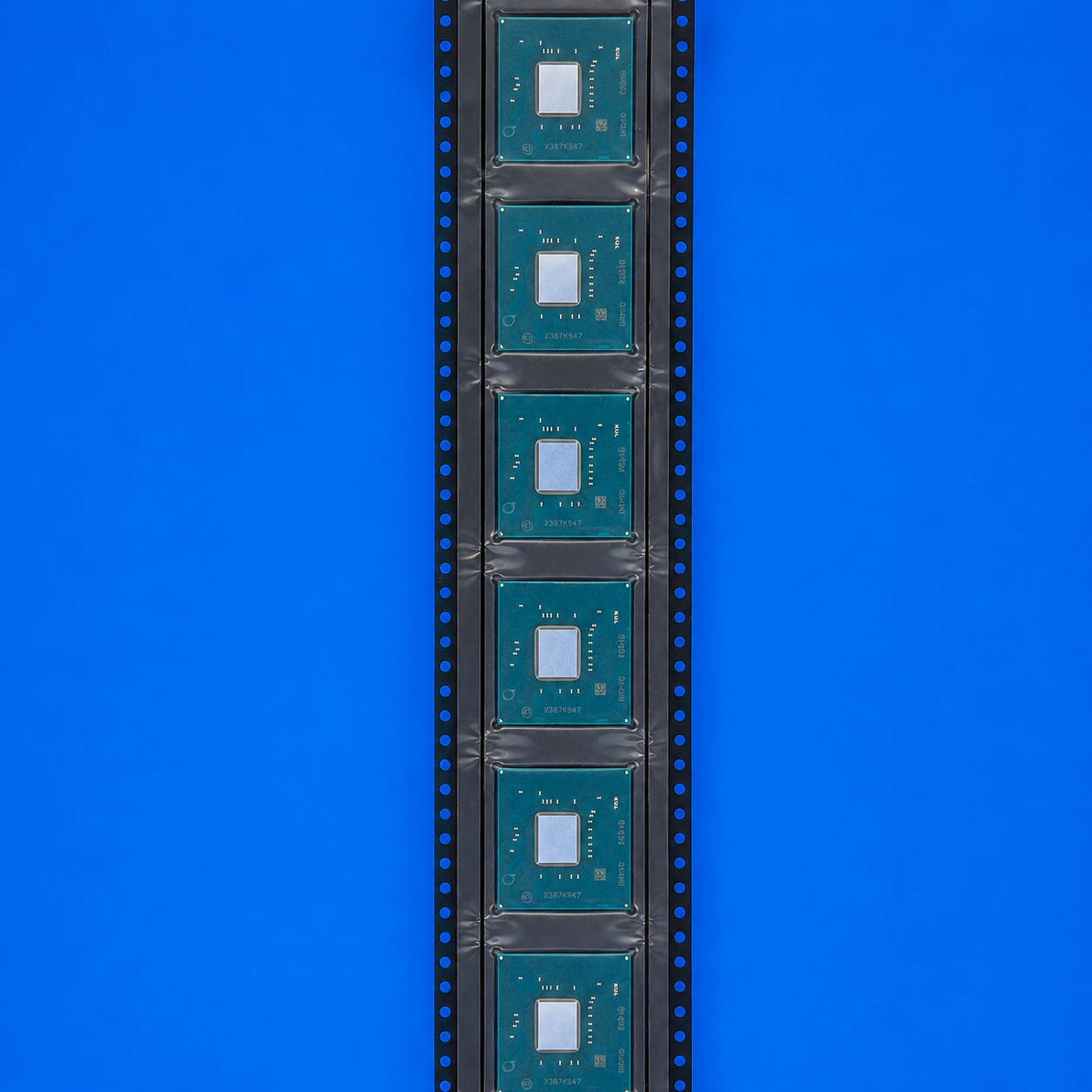

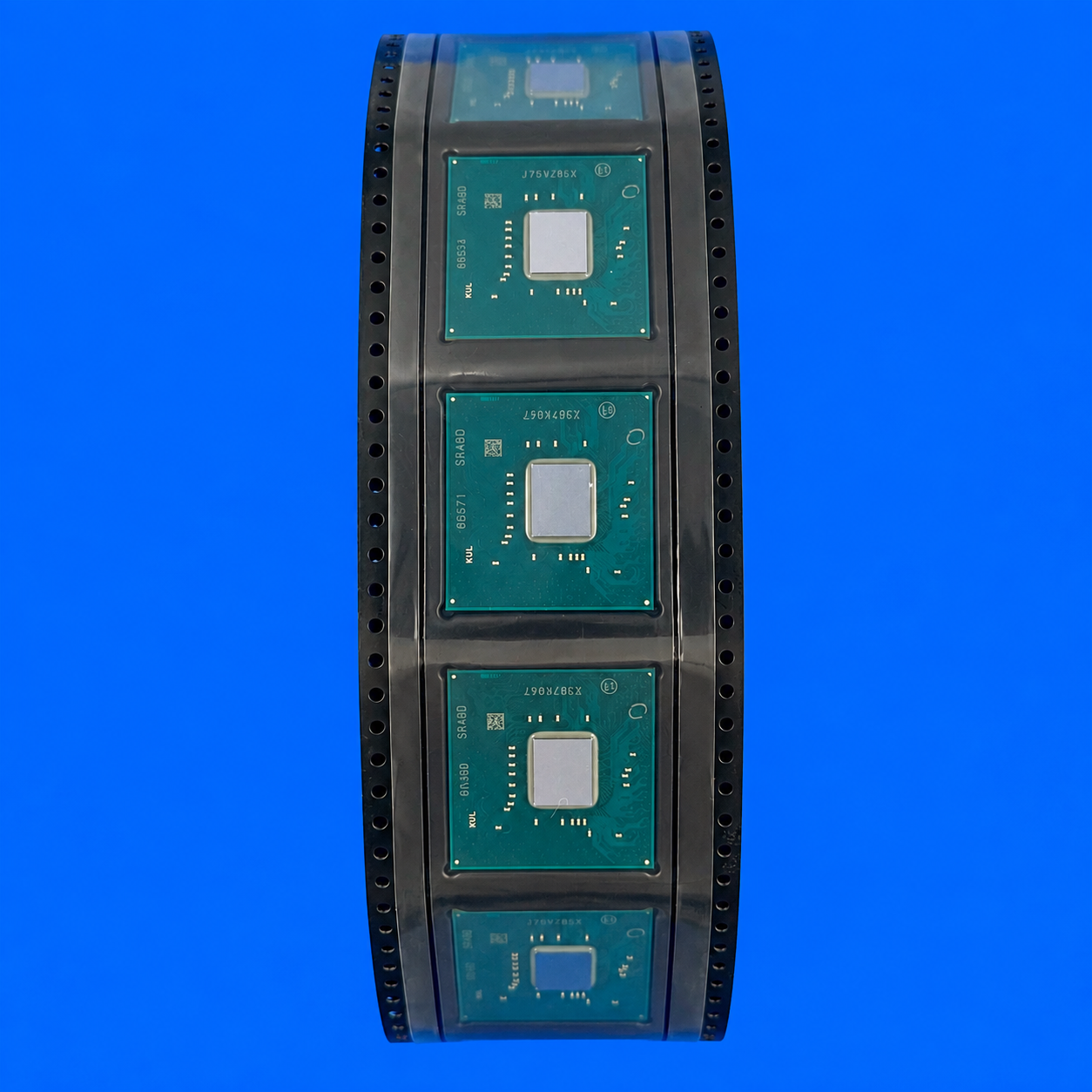

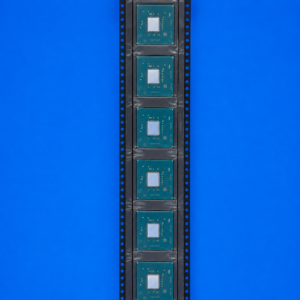

FH82QM370 SR40D

FH82QM370 SR40D Specifications

Manufacturer: Intel
Part Number: FH82QM370
Spec Code: SR40D
Product Type: Platform Controller Hub Chipset
Chipset Series: Mobile Intel QM370
Stepping: B0
PCI Express Revision: PCIe 3.0
PCI Express Lanes: Up to 20
SATA Ports: 4
USB Ports: Up to 14
Displays Supported: Up to 3
TDP: 3 W
Package Type: BGA
Application: Mobile, embedded, and industrial computing platforms

Key Features

The Intel FH82QM370 SR40D is a Mobile QM370 platform controller hub chipset. It is designed for compatible Intel mobile and embedded computing platforms. In addition, it supports system control, I/O expansion, storage interfaces, USB connectivity, and display-related platform functions.

The chipset supports PCIe 3.0 connectivity with up to 20 PCI Express lanes. It also supports up to 4 SATA ports and up to 14 USB ports. Therefore, it is useful in motherboard designs that require multiple storage, expansion, and peripheral connections.

This device uses a BGA package and is intended for board-level assembly. As a result, buyers should confirm the exact footprint, chipset requirements, processor pairing, BIOS support, and system design before purchase. Furthermore, the SR40D spec code helps identify the correct Intel ordering variant.

Applications

Embedded computing platforms
Industrial PC motherboards
Mobile workstation systems
Panel PC designs
Single-board computer assemblies
Legacy motherboard repair
System controller replacement
OEM production support
Board-level repair and maintenance
Industrial automation hardware

Product Overview

The Intel FH82QM370 SR40D is a Mobile QM370 platform controller hub chipset for compatible Intel-based systems. It helps manage key platform functions, including I/O, storage, USB, PCIe, and other system-level interfaces. Therefore, it is commonly used in mobile, embedded, and industrial computer designs.

This chipset supports PCIe 3.0 and provides up to 20 PCI Express lanes. In addition, it supports up to 4 SATA ports and up to 14 USB ports. These features help motherboard designers connect storage devices, expansion interfaces, peripherals, and other system hardware.

The FH82QM370 is supplied in a BGA package for direct board assembly. Because of that, installation normally requires professional equipment and board-level soldering capability. Buyers should verify package footprint, chipset compatibility, processor support, BIOS requirements, and board layout before use.

The SR40D spec code helps identify this specific Intel chipset version. It is especially useful when repairing or supporting existing platforms that require the exact matching part number and spec code. Matching the ordering code can help avoid compatibility issues during production, repair, or replacement work.

Cyndtek® supplies chipsets, semiconductors, electronic components, and hard-to-find parts for production, repair, replacement, and system support requirements. To request pricing or availability for FH82QM370 SR40D, visit our Cyndtek shop or contact sales@cyndtek.com with your quantity, target price, and required delivery schedule.
