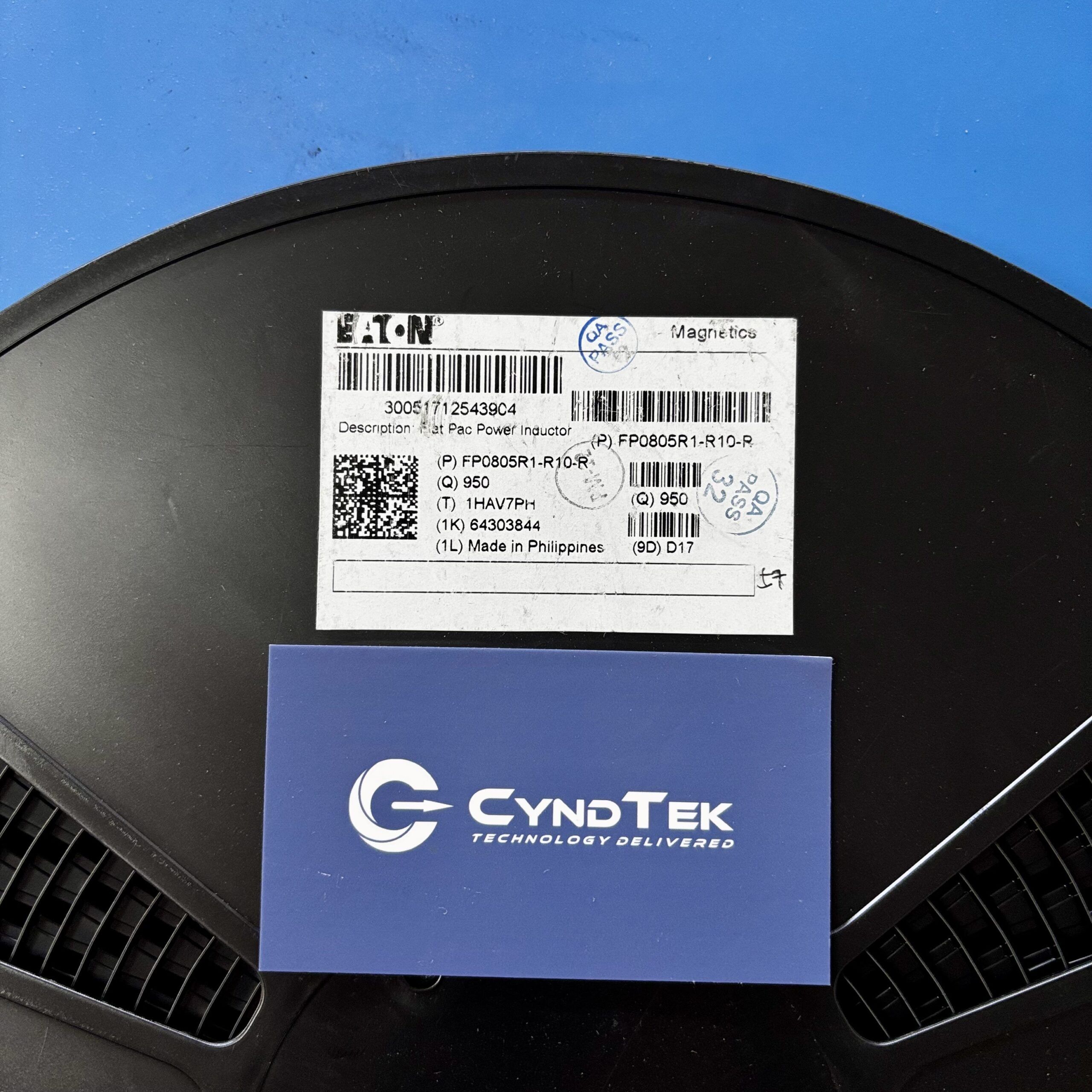

FP0805R1-R10-R

FP0805R1-R10-R Specifications

Manufacturer: Eaton
Part Number: FP0805R1-R10-R
Product Type: High Frequency, High Current Power Inductor
Inductance: 100 nH ±10%
Current Rating (Irms): 65 A
Saturation Current (Isat): 50 A at 25°C, 35 A at 125°C
DC Resistance (DCR): 0.17 mΩ ±17%
Package Size: 7.49 mm (L) x 7.62 mm (W) x 4.96 mm (H)
Operating Temperature Range: -40°C to +125°C
Core Material: Ferrite
Mounting Type: Surface Mount
Shielding: Unshielded
RoHS Status: RoHS Compliant

Key Features

The FP0805R1-R10-R from Eaton is a high-frequency, high-current power inductor designed for applications requiring efficient energy storage and filtering. With an inductance of 100 nH and a current rating of 65 A, it effectively manages substantial current loads while maintaining performance. The inductor’s low DC resistance of 0.17 mΩ minimizes power losses, enhancing overall efficiency. Its compact package size facilitates integration into space-constrained designs. Constructed with a ferrite core, it offers low core losses and high saturation current capabilities. The operating temperature range of -40°C to +125°C ensures reliability across various environmental conditions.

Applications

Multi-phase regulators in computing systems requiring stable power delivery.
Voltage Regulator Modules (VRMs) for processors and high-performance electronics.
Point-of-load modules in distributed power architectures.
Data networking and storage systems necessitating efficient power management.
Graphics cards and battery-powered systems where space and efficiency are critical.

Product Overview

Eaton’s FP0805R1-R10-R is engineered to deliver high performance in demanding power applications. Its combination of low inductance, high current handling, and minimal DC resistance makes it ideal for modern electronic systems requiring efficient power conversion and filtering. The inductor’s robust construction and wide operating temperature range ensure long-term reliability. Its compact, surface-mount design allows for easy integration into densely populated circuit boards, making it a versatile choice for designers seeking to optimize power management solutions.
