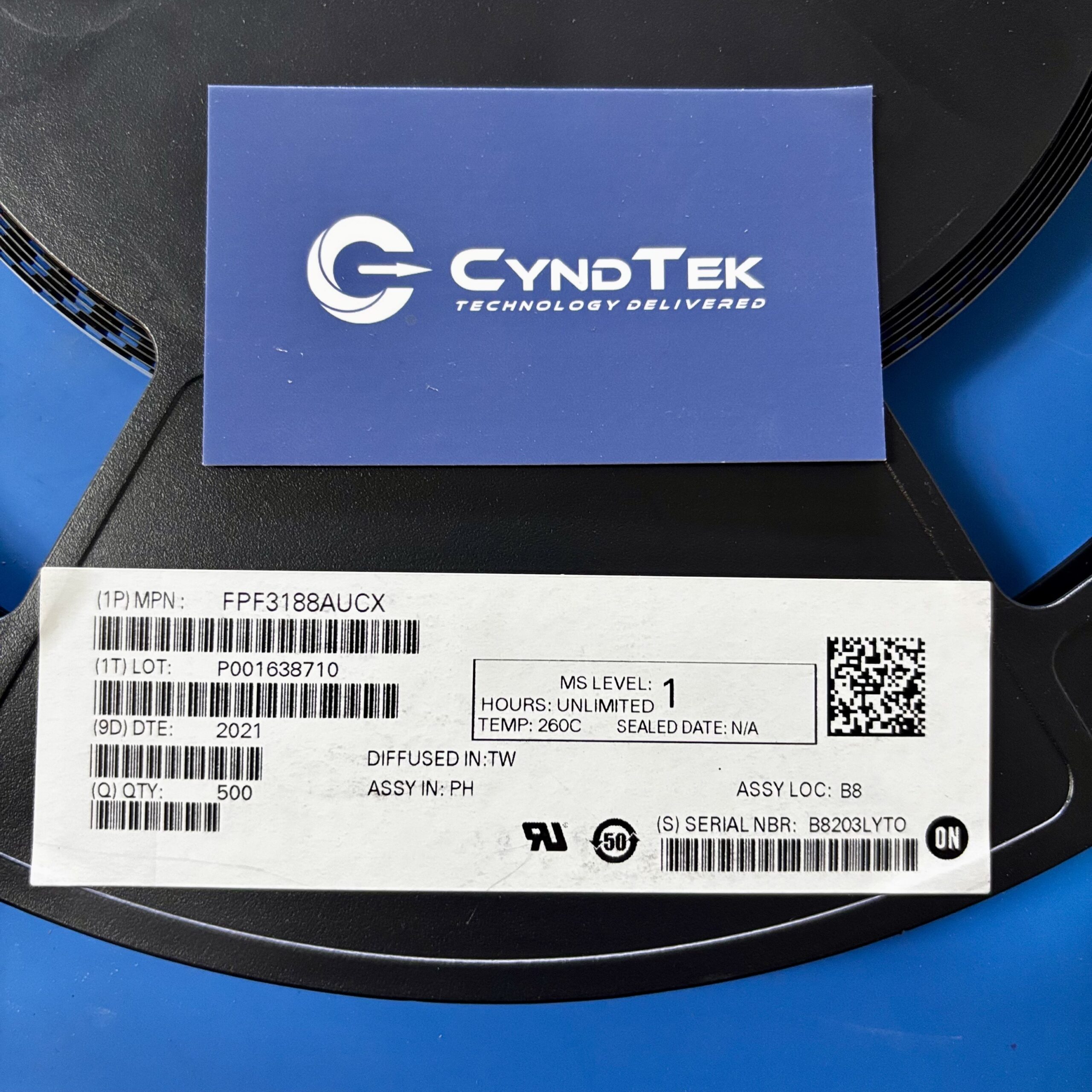

FPF3188AUCX

FPF3188AUCX

$1.25

IC Load Switch Surge OVP JR
  • Manufacturer: onsemi
  • Part Number: FPF3188AUCX
  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2021

Availability: 500 in stock

SKU PAC004F-6 Category Brand:

FPF3188AUCX Specifications

Manufacturer: onsemi
Part Type: Integrated Load Switch
Operating Voltage Range: 1.5 V to 5.5 V
On-State Resistance (RDS ON): 35 mΩ (typical at 3.3 V)
Continuous Current: 2 A
Control Interface: Active-Low Enable
Output Discharge: Yes
Soft-Start: Integrated Slew Rate Control
Reverse Current Blocking: No
Package Type: UDFN-6 (1.0 mm × 1.5 mm)
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
Quiescent Current: 90 µA (typical)
Turn-On Time: 1 ms (typical)
Thermal Shutdown: Yes
RoHS Compliant: Yes

Key Features

The FPF3188AUCX is a compact and efficient integrated load switch designed to simplify power rail control in portable and embedded electronics. It supports a wide voltage range from 1.5 V to 5.5 V and handles up to 2 A of continuous current. With an RDS ON of only 35 mΩ, it minimizes voltage drop and power loss. Integrated slew rate control reduces inrush current during turn-on, while an active-low enable pin provides straightforward logic control. Additionally, it features output discharge and thermal shutdown for system protection.

Applications

Smartphones and tablets
Portable media devices
Wearable electronics
Bluetooth and Wi-Fi modules
Low-voltage power sequencing
Battery-operated sensor hubs
Point-of-sale terminals
IoT edge devices
Consumer medical electronics
DC power rail switching

Product Overview

Designed for power efficiency and safe switching, the FPF3188AUCX offers a reliable solution for managing power distribution in space-limited applications. Its low on-resistance ensures minimal energy loss, and the built-in slew rate control helps prevent voltage spikes during startup. The device features thermal protection to safeguard against overheating and a small UDFN-6 package that supports compact circuit layouts. With simple enable control and output discharge, it delivers clean and reliable voltage control in both consumer and industrial electronics.
