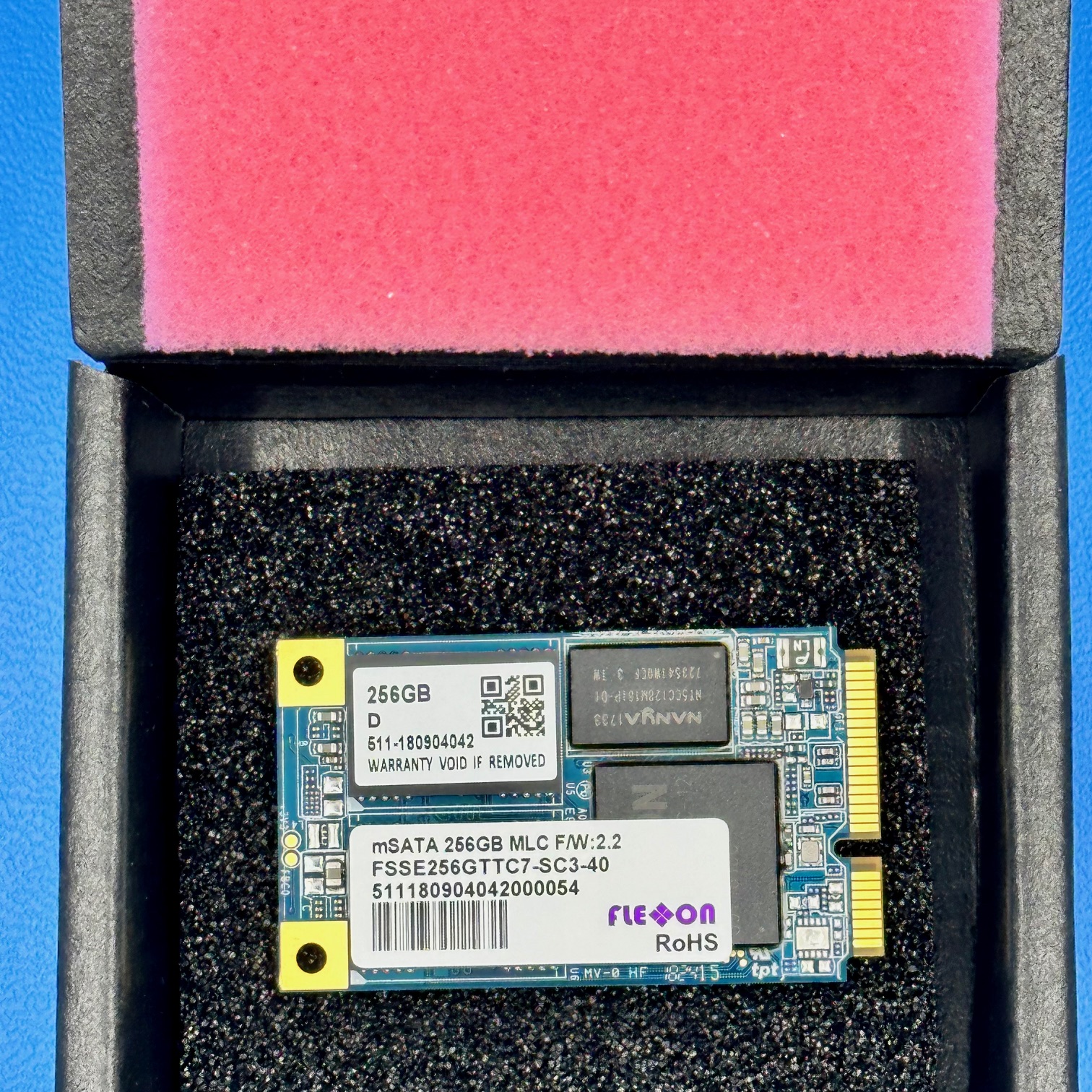

FSSE256GTTC7-SC3-40

FSSE256GTTC7-SC3-40 Specifications

Manufacturer: Flexxon
Part Number: FSSE256GTTC7-SC3-40 (Replaced by FSSE256GBS-MA00 or FSSE256GBE-MA00)
Product Type: Industrial mSATA SSD (INSPIRE II Series)
Flash Type: 3D TLC NAND
Capacity: 256 GB
Interface: SATA III (6 Gbps), backward compatible with 3 Gbps and 1.5 Gbps
Sequential Read Speed: Up to 520 MB/s
Sequential Write Speed: Up to 350 MB/s
ECC Scheme: LDPC (Low-Density Parity Check)
Power Consumption (Active): 2.40 W (max)
Power Consumption (Idle): 0.43 W (max)
Supply Voltage: 3.3 V ±5%
MTBF: Over 2 million hours
Data Retention: 10 years at >90% life, 1 year at <10% life (at 25°C)
Package / Case: mSATA MO-300
Mounting Type: Surface Mount
Operating Temperature Range: 0°C to 70°C (Silver Grade) or -40°C to 85°C (Diamond Grade)
RoHS Status: RoHS Compliant

Key Features

The FSSE256GTTC7-SC3-40 is an industrial-grade mSATA SSD based on Flexxon’s INSPIRE II platform. It features 3D TLC flash and is designed for high-performance multitasking environments. With read speeds up to 520 MB/s and write speeds up to 350 MB/s, it supports fast data access and transfer. The device also includes LDPC error correction for enhanced data reliability. Furthermore, it supports advanced features such as SMART, TRIM, power loss protection, global wear leveling, and secure erase. Operating within a 3.3 V power envelope, it maintains low power consumption even during active use. The form factor is compliant with JEDEC MO-300 standards, enabling seamless integration in embedded and industrial applications.

Applications

Industrial computing systems
Transportation electronics
Defense and aerospace
Data logging and monitoring
Medical devices
Surveillance systems

Product Overview

The FSSE256GTTC7-SC3-40, now represented by the Flexxon INSPIRE II mSATA series, provides reliable storage performance for industrial environments. Its 3D TLC NAND technology combines high density with extended endurance, while LDPC ECC ensures robust data integrity. The drive includes low power management, data refresh techniques, and thermal resilience. Because of its compact mSATA form factor and JEDEC MO-300 compliance, it integrates easily into embedded systems. Optional features like AES256 encryption and TCG OPAL are available, and power loss protection options ensure safe shutdown in volatile conditions. Designed for demanding environments, this SSD delivers endurance, performance, and consistent reliability across mission-critical applications.
