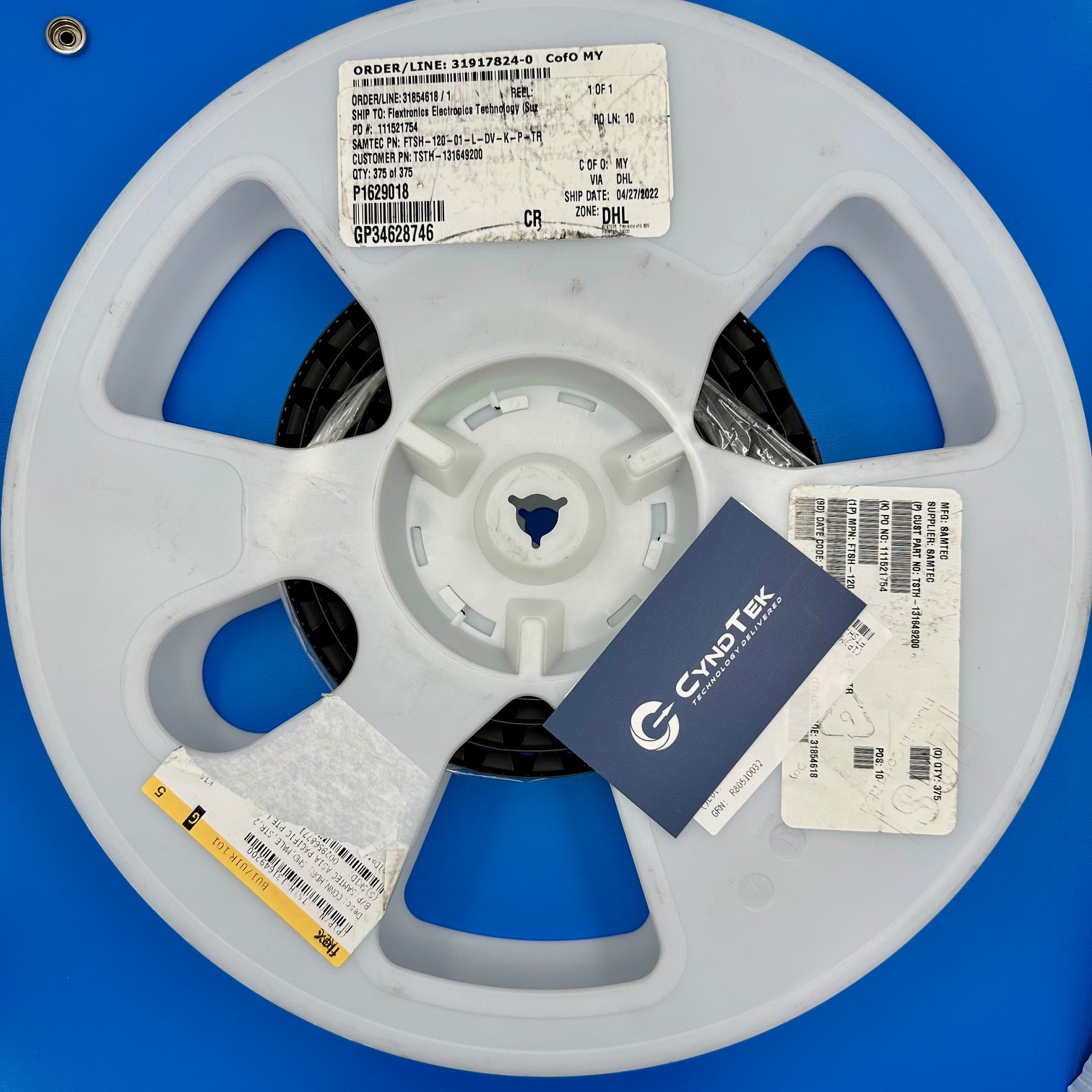

FTSH-120-01-L-DV-K-P-TR

FTSH-120-01-L-DV-K-P-TR

$4.00

CONN HEADER SMD 40POS 1.27MM
  • Manufacturer: Samtec
  • Part Number: FTSH-120-01-L-DV-K-P-TR
  • Packaging: Bulk
  • Quantity: Each
  • Datecode: 2216

Availability: 102 in stock

SKU TSX048B Category Brand:

FTSH-120-01-L-DV-K-P-TR Specifications

Manufacturer: Samtec
Part Number: FTSH-120-01-L-DV-K-P-TR
Product Type: Board-to-Board Connector
Number of Positions: 40 (2 rows of 20)
Pitch: 1.27 mm (0.050″)
Contact Finish: Gold
Contact Type: Male Pin
Mounting Type: Surface Mount
Termination: Solder
Operating Temperature Range: -55°C to +125°C
Packaging: Tape & Reel
RoHS Status: RoHS Compliant

Key Features

The FTSH-120-01-L-DV-K-P-TR is a high-reliability, dual-row header connector designed for board-to-board and cable applications. With a 1.27 mm pitch and 40 total positions, it facilitates compact and efficient circuit board connections. The gold-plated contacts ensure excellent conductivity and resistance to corrosion, enhancing the connector’s durability. Its surface mount design supports automated assembly processes, while the tape and reel packaging simplifies handling during manufacturing. Operating effectively across a temperature range of -55°C to +125°C, this connector is suitable for various demanding environments.

Applications

Board-to-board interconnects
Cable assemblies
Industrial equipment
Telecommunications
Medical devices

Product Overview

This connector from Samtec offers a robust solution for high-density interconnect requirements. Its dual-row configuration and fine 1.27 mm pitch enable space-saving designs without compromising performance. The gold contact finish provides reliable signal transmission and longevity, essential for critical applications. Designed for surface mount termination, it integrates seamlessly into modern PCB layouts and supports efficient soldering processes. The connector’s broad operating temperature range ensures consistent performance in both standard and harsh conditions, making it a versatile choice for industries such as telecommunications, medical devices, and industrial automation.
