GRF2710 Specifications
Manufacturer: Guerrilla RF
Part Number: GRF2710
Product Type: RF Low Noise Amplifier
Technology: GaAs
Frequency Range: 8.0 GHz to 12.7 GHz
RF Band: X-Band
Typical Gain: 13.9 dB
Noise Figure: 1.9 dB evaluation board typical
P1dB: 12.8 dBm typical
Output IP3: 24 dBm typical
Supply Voltage: 3 V to 5 V
Typical Bias: 5 V at 25 mA
Package: 1.5 mm x 1.5 mm DFN-6
Channels: 1 Channel
Operating Temperature Range: -40°C to +105°C
Key Features
The GRF2710 is a compact X-band low noise amplifier designed for high-frequency RF signal chains. It supports operation across the 8.0 GHz to 12.7 GHz range, making it suitable for microwave and X-band applications. Additionally, the device provides strong gain, low noise performance, and useful linearity in a very small DFN package.
This amplifier operates from a single positive supply, which helps simplify board-level power design. Moreover, its 5 V typical bias condition allows designers to balance gain, current draw, and RF performance in compact systems. The GRF2710 also uses minimal external matching components for its intended frequency range, helping reduce board space and layout complexity.
Applications
X-band low noise amplifier stages
Microwave receiver front ends
Radar signal chain modules
RF test and measurement equipment
Microwave oscillator buffer circuits
Local oscillator buffer stages
RFID reader and sensing systems
Motion detection microwave modules
Point-to-point microwave backhaul radios
Compact defense and aerospace RF assemblies
Product Overview
The GRF2710 from Guerrilla RF is a GaAs RF low noise amplifier built for high-performance X-band applications. It is designed for systems that need clean signal amplification across microwave frequencies. Therefore, it works well in compact RF front ends, receiver paths, and buffer stages.
With operation from 8.0 GHz to 12.7 GHz, the GRF2710 fits many X-band designs. It provides useful gain while keeping noise performance low. As a result, it can help improve sensitivity in receiver applications where weak signal detection matters.
The device is supplied in a small 1.5 mm x 1.5 mm DFN-6 package. This makes it useful for dense PCB layouts, small modules, and space-limited RF assemblies. In addition, the single-supply operation helps reduce design complexity when compared with multi-rail amplifier options.
The GRF2710 is also suitable for microwave oscillator and LO buffer applications. Its combination of gain, linearity, and compact size makes it a flexible part for many RF designs. However, layout, grounding, and matching should be carefully reviewed in high-frequency circuits.

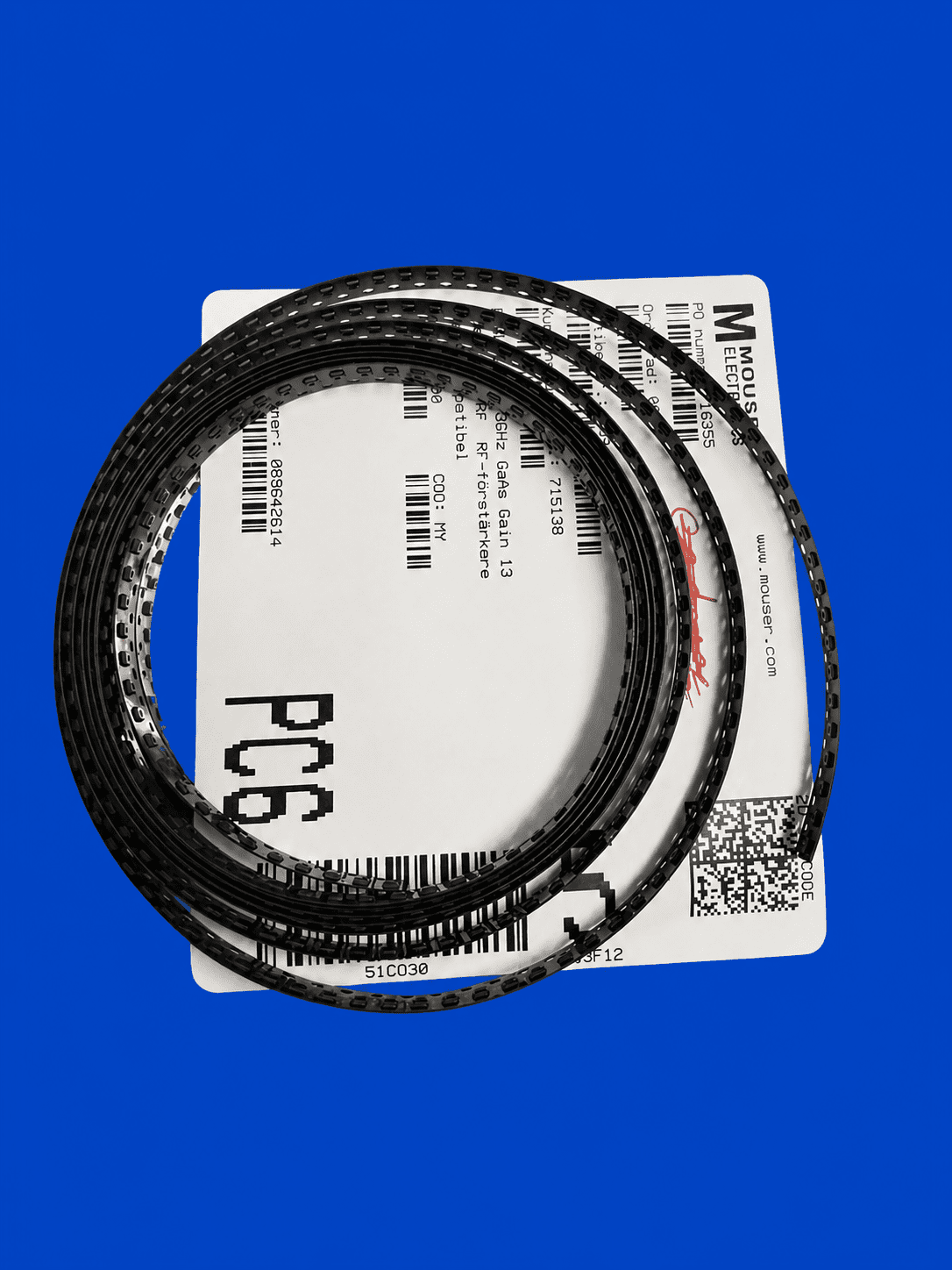

Cyndtek offers the GRF2710 for buyers needing available RF amplifier inventory for production, repair, engineering, or sourcing support. This part is available in limited stock, with date code 18+ inventory currently listed.
