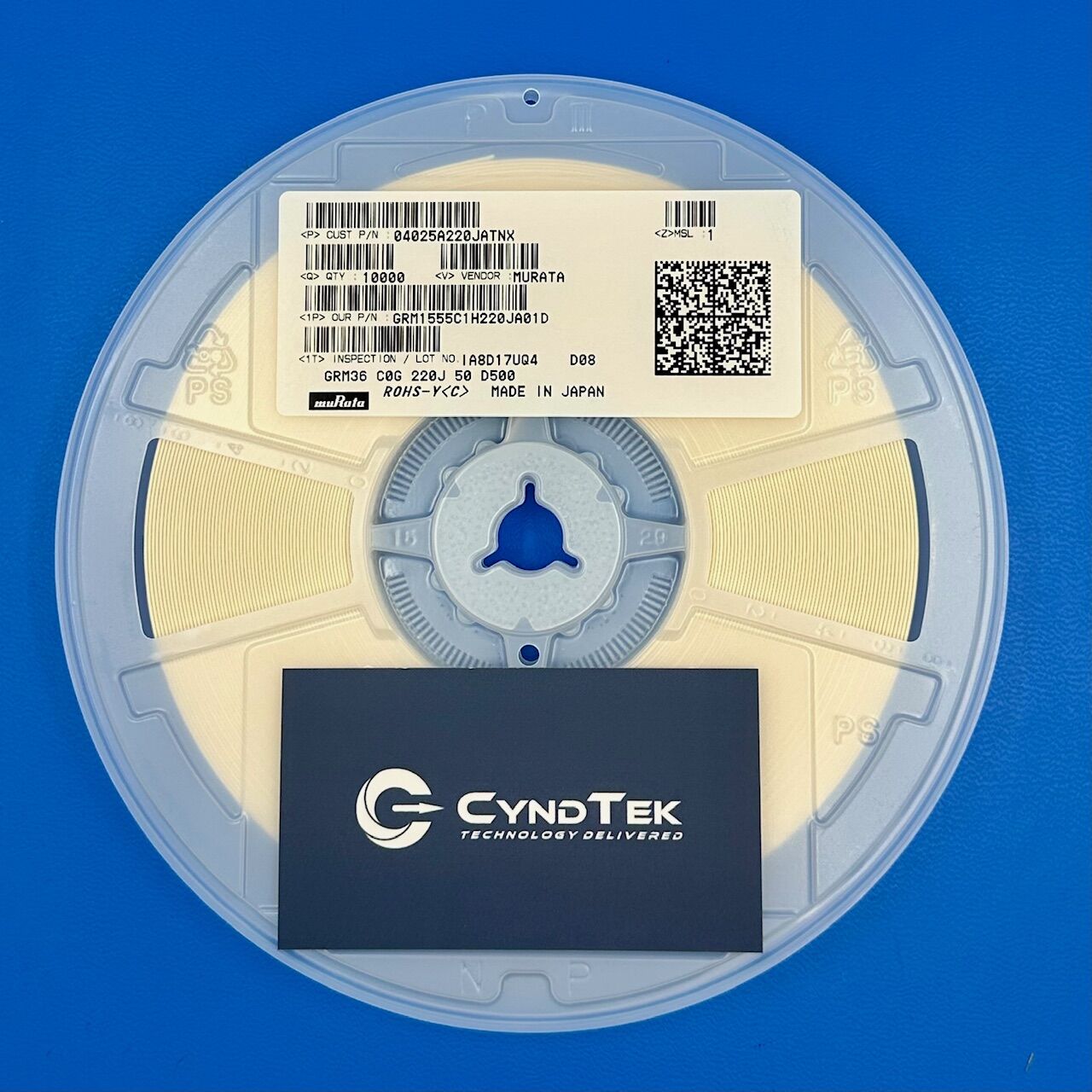

GRM1555C1H220JA01D
Manufacturer: Murata Electronics
Part Type: Multilayer Ceramic Capacitor (MLCC)
Capacitance: 22 pF
Rated Voltage: 50 V DC
Tolerance: ±5% (J)
Dielectric Type: C0G/NP0 (Ultra-stable Class I)
Case Size / Code: 0402 (EIA 1005, 1.0 mm × 0.5 mm)
Mounting Type: Surface Mount (SMD)
Temperature Coefficient: 0 ±30 ppm/°C
Operating Temperature Range: -55°C to +125°C
Insulation Resistance: ≥10 GΩ
Dissipation Factor: 0.1% max at 1 MHz
Polarity: Non-polarized
Compliance: RoHS Compliant
Applications: Precision timing, RF, and high-stability circuits
Key Features
The GRM1555C1H220JA01D is a high-quality MLCC designed for exceptional stability and reliability. Featuring a 22 pF capacitance and 50 V rating, it uses C0G/NP0 dielectric to provide ultra-stable performance across temperature and voltage variations. Its ±5% tolerance ensures accurate filtering and timing functions, while the compact 0402 case size enables use in miniaturized designs. With extremely low loss and high insulation resistance, this capacitor is ideal for RF and precision applications requiring long-term dependability.
Applications
RF tuning circuits
Precision timing oscillators
High-frequency communication modules
Aerospace navigation electronics
Medical diagnostic instruments
Automotive infotainment systems
High-speed networking equipment
Industrial control systems
Consumer wireless devices
Test and measurement equipment
Product Overview
The Murata GRM1555C1H220JA01D delivers stable capacitance with minimal temperature drift, making it suitable for demanding RF and precision timing circuits. Its compact 0402 footprint conserves board space without compromising electrical performance. As part of Murata’s GRM series, it is engineered for consistent quality and reliability in high-volume production. Furthermore, its non-polarized construction ensures versatile integration into AC and DC systems alike. With proven performance in critical applications, this MLCC supports robust system operation across consumer, industrial, and automotive markets.
