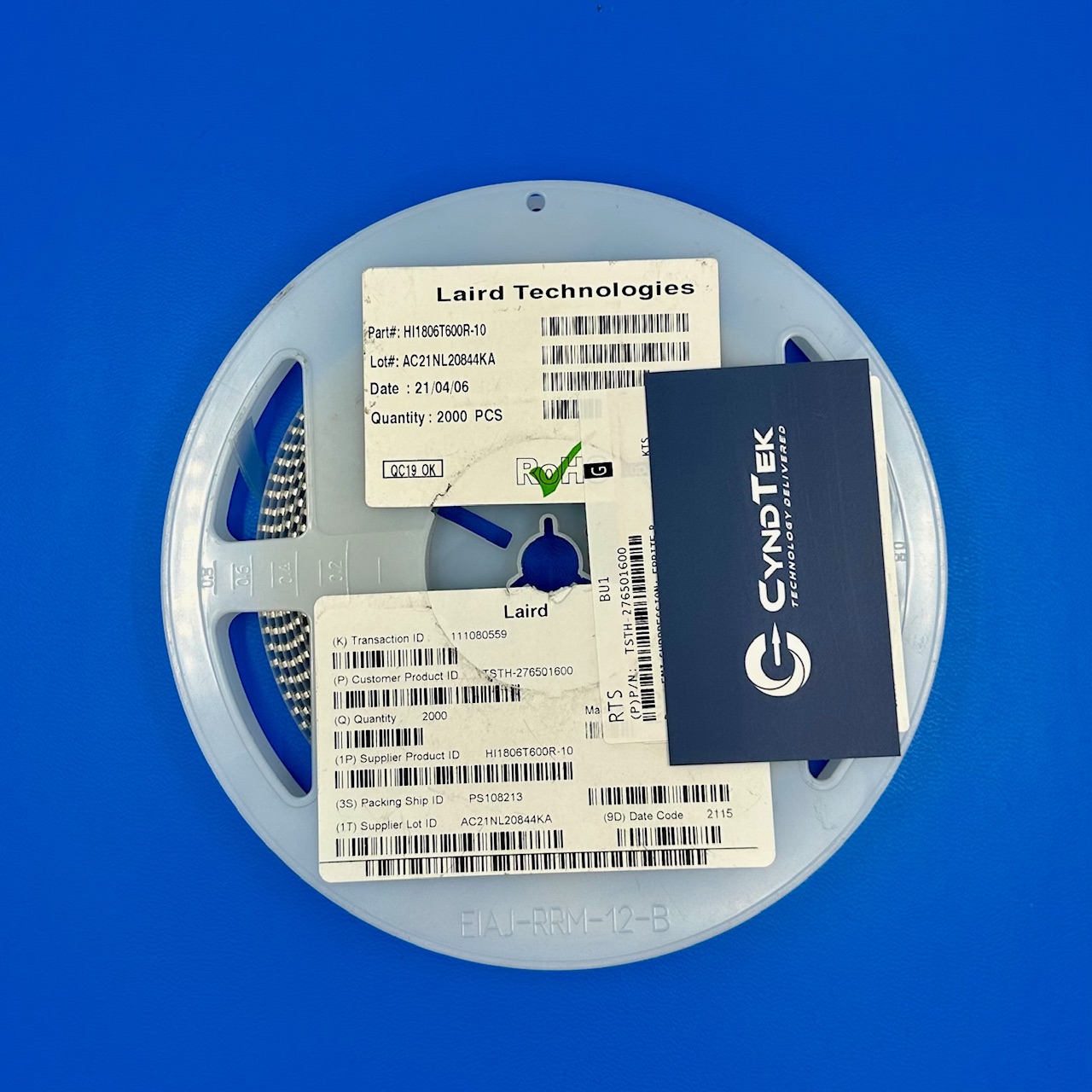

HI1806T600R-10

HI1806T600R-10 Specifications

Manufacturer: Laird Performance Materials
Part Number: HI1806T600R-10
Product Type: High Current Ferrite Chip Bead
Series: 1806
Impedance at 100 MHz: 60 Ω
Rated Current: 6 A
DC Resistance (DCR) Max: 0.01 Ω
Package / Case: 1806 (4516 Metric)
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +125°C
Height (Max): 1.60 mm
Length: 4.50 mm
Width: 1.60 mm
RoHS Status: RoHS Compliant

Key Features

The HI1806T600R-10 is a high current ferrite chip bead from Laird’s 1806 series, designed to provide effective noise suppression in both power and signal lines. With an impedance of 60 Ω at 100 MHz and a maximum DC resistance of 0.01 Ω, it efficiently filters high-frequency noise while maintaining low power loss. The component supports a rated current of up to 6 A, making it suitable for applications requiring high current handling. Its compact 1806 package facilitates surface mount assembly, optimizing space utilization on printed circuit boards. Operating reliably over a temperature range from -40°C to +125°C, this chip bead ensures consistent performance in various environmental conditions.

Applications

Power supply lines requiring noise suppression
Signal line filtering in communication devices
Electromagnetic interference (EMI) reduction in automotive electronics
High-frequency noise attenuation in consumer electronics
Industrial equipment needing reliable high-current noise filtering

Product Overview

Laird’s HI1806T600R-10 ferrite chip bead offers a robust solution for mitigating high-frequency noise in electronic circuits. Its high impedance at 100 MHz effectively suppresses unwanted signals, enhancing overall system performance. The low DC resistance minimizes energy loss, making it efficient for high-current applications. Its surface mount design in the 1806 package allows for easy integration into compact PCB layouts. Additionally, the component’s wide operating temperature range ensures reliability across diverse environmental conditions. Compliant with RoHS standards, the HI1806T600R-10 aligns with global environmental and safety regulations, making it a dependable choice for designers seeking effective noise suppression solutions.
