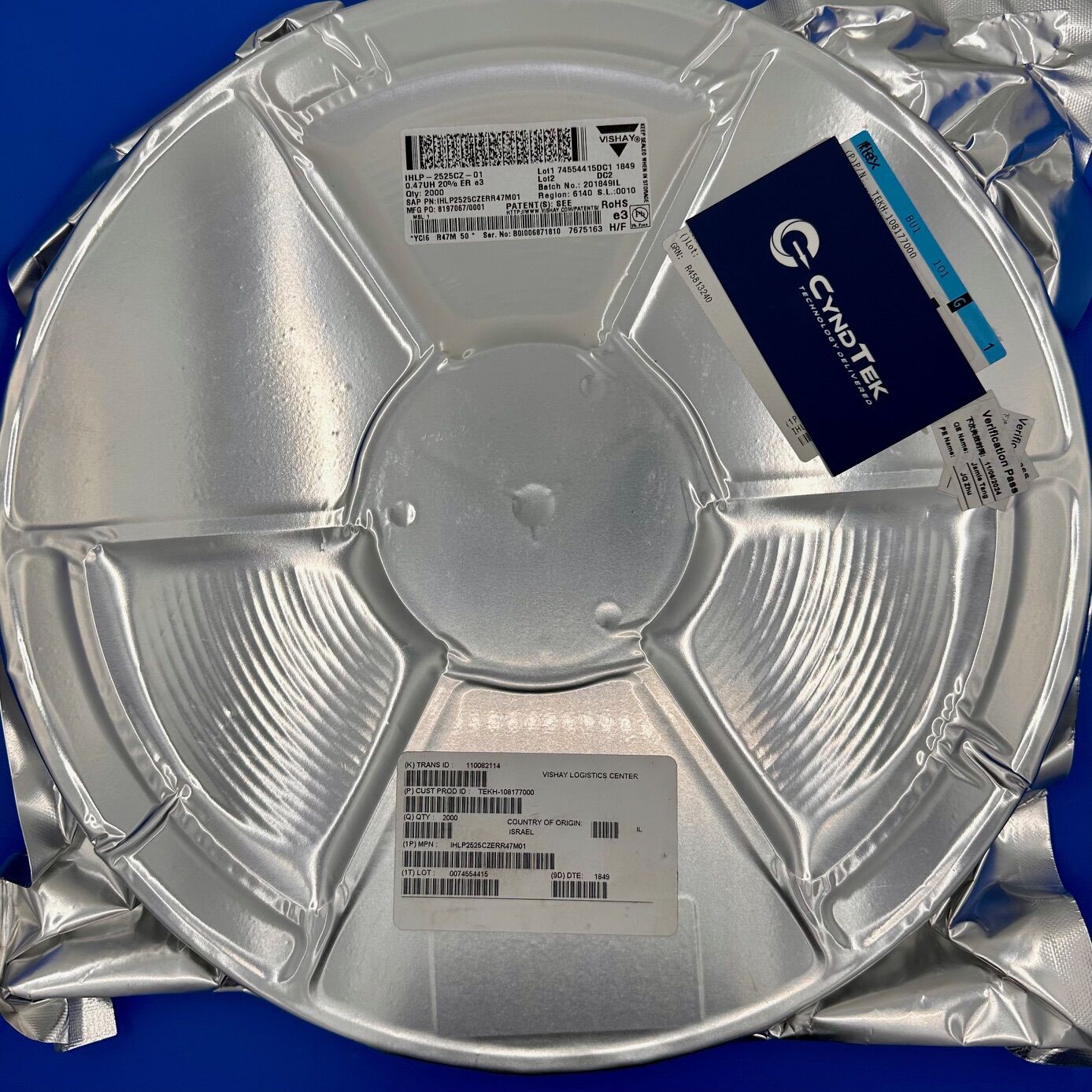

IHLP2525CZERR47M01 Specifications
Manufacturer: Vishay Dale
Part Number: IHLP2525CZERR47M01
Product Type: Fixed Inductor
Inductance: 0.47 µH
Tolerance: ±20%
Current Rating: 17.5 A
Saturation Current (Isat): 26 A
Shielding: Shielded
DC Resistance (DCR): 4.2 mΩ Max
Package / Case: 2525 (6.4 mm x 6.4 mm)
Mounting Type: Surface Mount
Operating Temperature Range: -55°C to +125°C
RoHS Status: RoHS Compliant
Key Features
The IHLP2525CZERR47M01 is a high-current, low-profile shielded inductor designed for efficient energy storage in DC/DC converters and high-current filtering applications. Its compact 2525 case size (6.4 mm x 6.4 mm) and low profile make it suitable for space-constrained designs. With an inductance value of 0.47 µH and a tolerance of ±20%, it supports a current rating of 17.5 A and a saturation current of 26 A. The inductor’s shielded construction minimizes electromagnetic interference (EMI), enhancing performance in sensitive electronic environments. Additionally, the device operates over a wide temperature range from -55°C to +125°C, ensuring reliability in various applications.
Applications
PDA, notebook, desktop, and server applications
High-current point-of-load (POL) converters
Low-profile, high-current power supplies
Battery-powered devices
DC/DC converters in distributed power systems
DC/DC converters for field-programmable gate arrays (FPGAs)
Product Overview
The IHLP2525CZERR47M01 from Vishay Dale offers a robust solution for applications requiring high current handling and minimal EMI. Its shielded construction and low DC resistance contribute to high efficiency and reliable performance. The inductor’s compact size and low profile make it ideal for modern electronic devices where space is at a premium. Compliance with RoHS standards ensures environmental responsibility. Overall, the IHLP2525CZERR47M01 is a dependable choice for engineers seeking a high-performance inductor for demanding applications.
