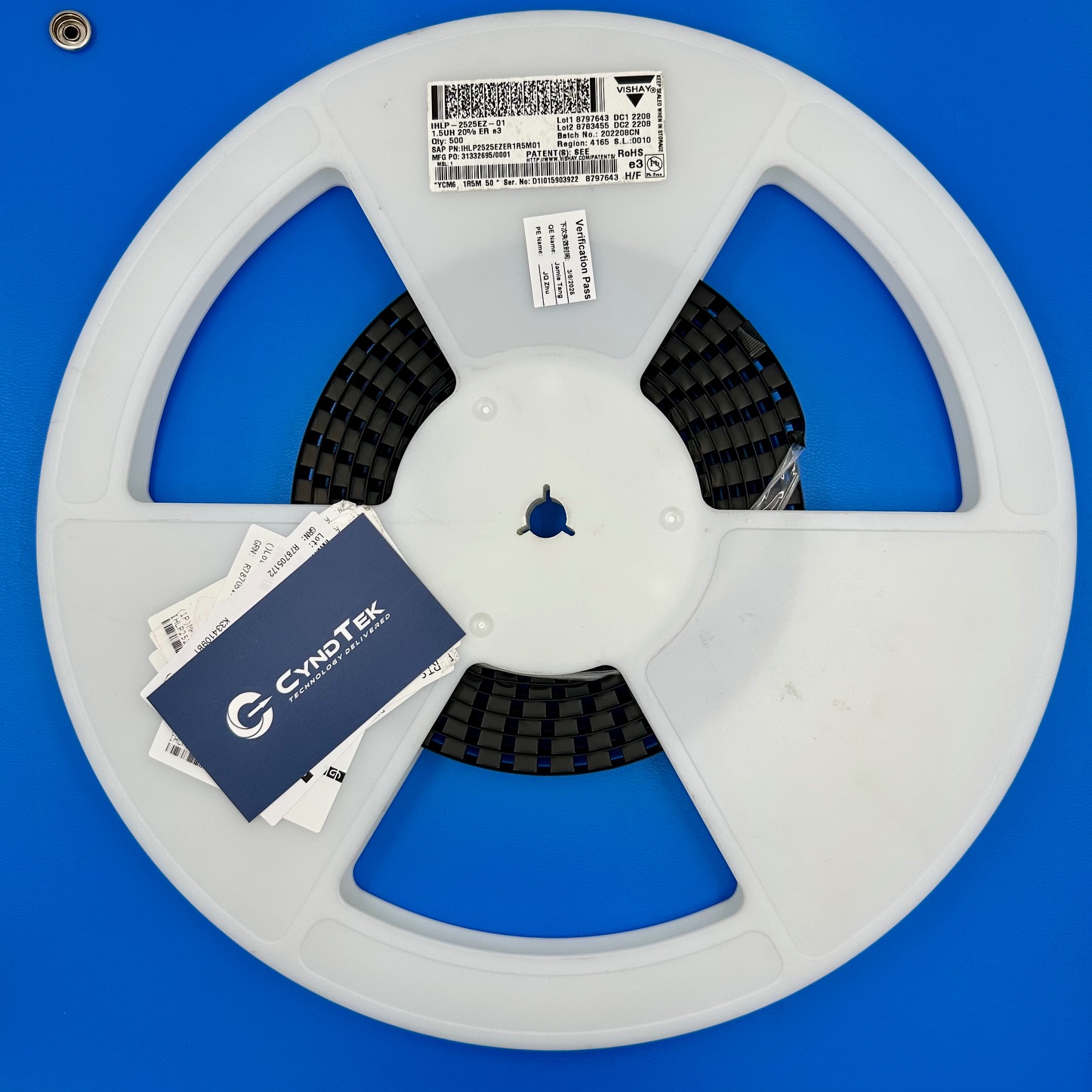

IHLP2525EZER1R5M01

IHLP2525EZER1R5M01 Specifications

Manufacturer: Vishay Dale
Part Number: IHLP2525EZER1R5M01
Product Type: Fixed Inductor
Inductance: 1.5 µH
Tolerance: ±20%
Current Rating: 12 A
Saturation Current: 12 A
DC Resistance (DCR): 9 mΩ Max
Shielding: Shielded
Package / Case: Nonstandard
Mounting Type: Surface Mount
Size / Dimension: 0.270″ L x 0.255″ W (6.86mm x 6.47mm)
Height – Seated (Max): 0.197″ (5.00mm)
Operating Temperature Range: -55°C to +125°C
RoHS Status: RoHS Compliant

Key Features

The IHLP2525EZER1R5M01 is a fixed inductor from Vishay Dale’s IHLP-2525EZ-01 series. It offers an inductance of 1.5 µH with a tolerance of ±20%. The device supports a current rating of 12 A and maintains a low DC resistance of 9 mΩ, ensuring efficient performance in power applications. Its shielded construction minimizes electromagnetic interference. Making it suitable for noise-sensitive environments. The compact surface-mount design, with dimensions of 0.270″ x 0.255″ and a maximum height of 0.197″, allows for efficient use of PCB space. The inductor operates effectively over a wide temperature range from -55°C to +125°C, accommodating various environmental conditions.

Applications

Notebook, desktop, and server applications
High current point-of-load (POL) converters
Low profile, high current power supplies
DC-DC converters in distributed power systems
DC-DC converters for Field Programmable Gate Arrays (FPGAs)

Product Overview

The IHLP2525EZER1R5M01 inductor is designed to meet the demands of modern electronic applications. Requiring efficient power conversion and minimal electromagnetic interference. Its low DC resistance and high current handling capability make it ideal for high-efficiency power supplies and converters. Using shielded construction reduces noise, enhancing performance in sensitive applications. Its compact size and surface-mount design facilitate easy integration into various circuit boards.  The wide operating temperature range ensures reliability across diverse environmental conditions, making it suitable for both consumer electronics and industrial applications.
