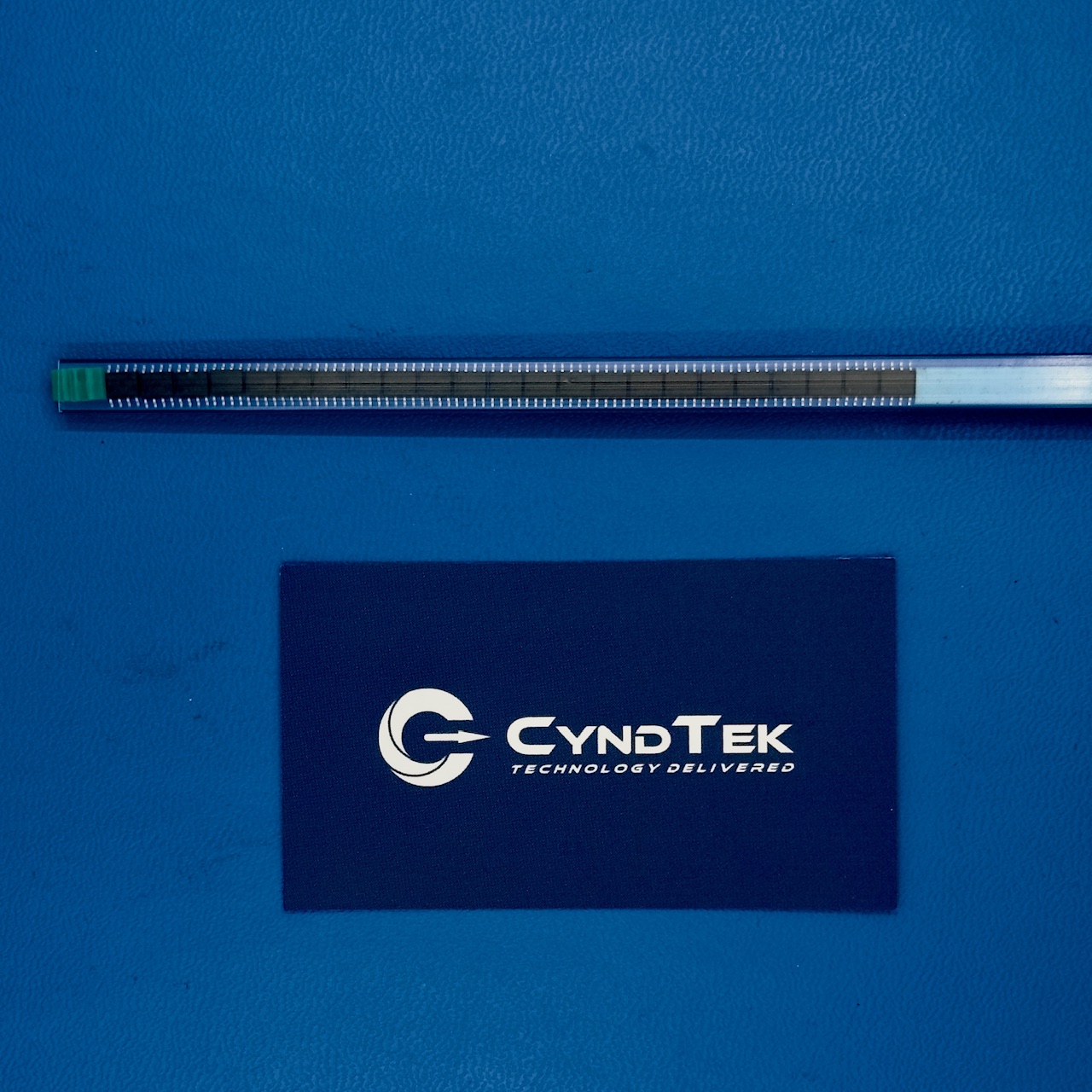

IPS7091GPBF Specifications
Manufacturer: International Rectifier
Part Number: IPS7091GPBF
NSN: 5945-01-607-8076
Product Type: Intelligent High Side Switch
Continuous Output Current: 5A
Input Voltage Range: 3V to 5.5V
Output Configuration: High Side
On-Resistance (Typ): 70 mΩ
Package Type: SOIC-8
Protection Features: Overcurrent, Thermal Shutdown, Short Circuit
Operating Temperature Range: -40°C to +150°C
Mounting Type: Surface Mount
RoHS Status: Lead-Free (Pb-Free)
Packaging: Factory
Key Features
The IPS7091GPBF is an intelligent high side switch designed to provide reliable load control in compact electronic systems. It integrates protection features including overcurrent limitation, thermal shutdown, and short circuit protection. Additionally, its low on-resistance improves efficiency and reduces power dissipation. The SOIC-8 surface-mount package supports automated assembly and compact PCB layouts. Because it operates from low logic-level voltages, it interfaces easily with microcontrollers and digital control circuits. As a result, it simplifies power distribution design while improving system protection.
Applications
Industrial control modules
Automotive body electronics
Embedded microcontroller power switching
Telecom power management boards
Defense electronic subsystems
Battery-powered equipment
Programmable logic controllers
Load switching in distributed systems
Product Overview
The IPS7091GPBF from International Rectifier is engineered to deliver protected high side switching in space-constrained designs. First, it enables efficient 5A load control with minimal external components. Furthermore, integrated protection circuitry reduces the need for discrete protection devices. Because it incorporates thermal and overcurrent safeguards, it improves overall system reliability.
Moreover, the device’s low on-resistance helps minimize heat generation during operation. In addition, the SOIC-8 package allows straightforward integration into modern surface-mount production environments. Therefore, it is well suited for industrial, automotive, and defense applications requiring dependable power switching. Overall, the IPS7091GPBF offers compact design, integrated protection, and efficient load management in a single device.
