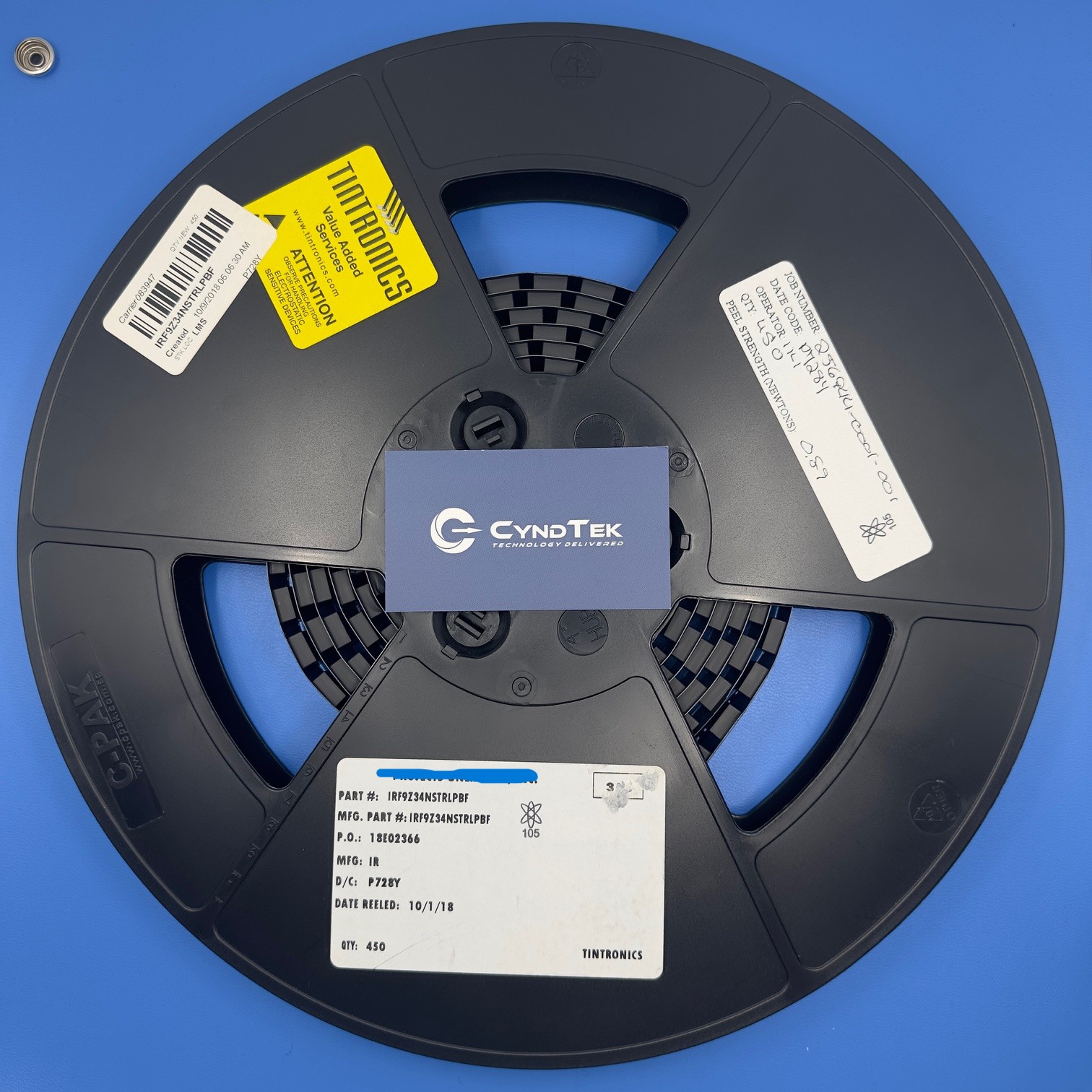

IRF9Z34NSTRLPBF Specifications
Manufacturer: Infineon Technologies
Part Number: IRF9Z34NSTRLPBF
Product Type: Power MOSFET
Transistor Type: P-Channel MOSFET
Drain Source Voltage: 55 V
Continuous Drain Current: 19 A
Gate Source Voltage: ±20 V Maximum
RDS On Resistance: Low On Resistance Design
Package Type: D2PAK
Mounting Type: Surface Mount
Power Dissipation: High Power Switching Capability
Operating Temperature Range: -55°C to +150°C
Applications Class: Power Switching and Load Control
Packaging: Factory
Key Features
The IRF9Z34NSTRLPBF is a P-channel power MOSFET designed for efficient switching and load control applications. It supports a drain source voltage rating of 55 volts and continuous current levels up to 19 amps. Additionally, the device provides low RDS on resistance which helps minimize conduction losses during switching operations. Because power MOSFETs are widely used for power management and load switching, engineers frequently select them for high efficiency electronic designs. As a result, the IRF9Z34NSTRLPBF supports reliable switching performance in power control circuits.
Applications
DC power switching circuits
Battery powered electronic systems
Embedded power management modules
Industrial control electronics
Load switching circuits
Power distribution modules
Communication equipment power control
Motor drive circuits
Product Overview
The IRF9Z34NSTRLPBF from Infineon Technologies provides a robust solution for power switching and load control applications. First, the P-channel MOSFET architecture simplifies high-side switching designs in power regulation circuits.
Additionally, the device offers low on resistance which helps reduce power loss and improve efficiency in switching applications. Because efficient power control is critical in many electronic systems, MOSFET devices remain widely used in power management designs.
Moreover, the D2PAK surface mount package supports high current handling and effective thermal performance. Engineers frequently use MOSFET devices such as the IRF9Z34N in power supply modules, industrial control systems, and embedded electronic designs.
Therefore, the IRF9Z34NSTRLPBF remains a dependable power transistor solution for switching and load control in modern electronic systems.
