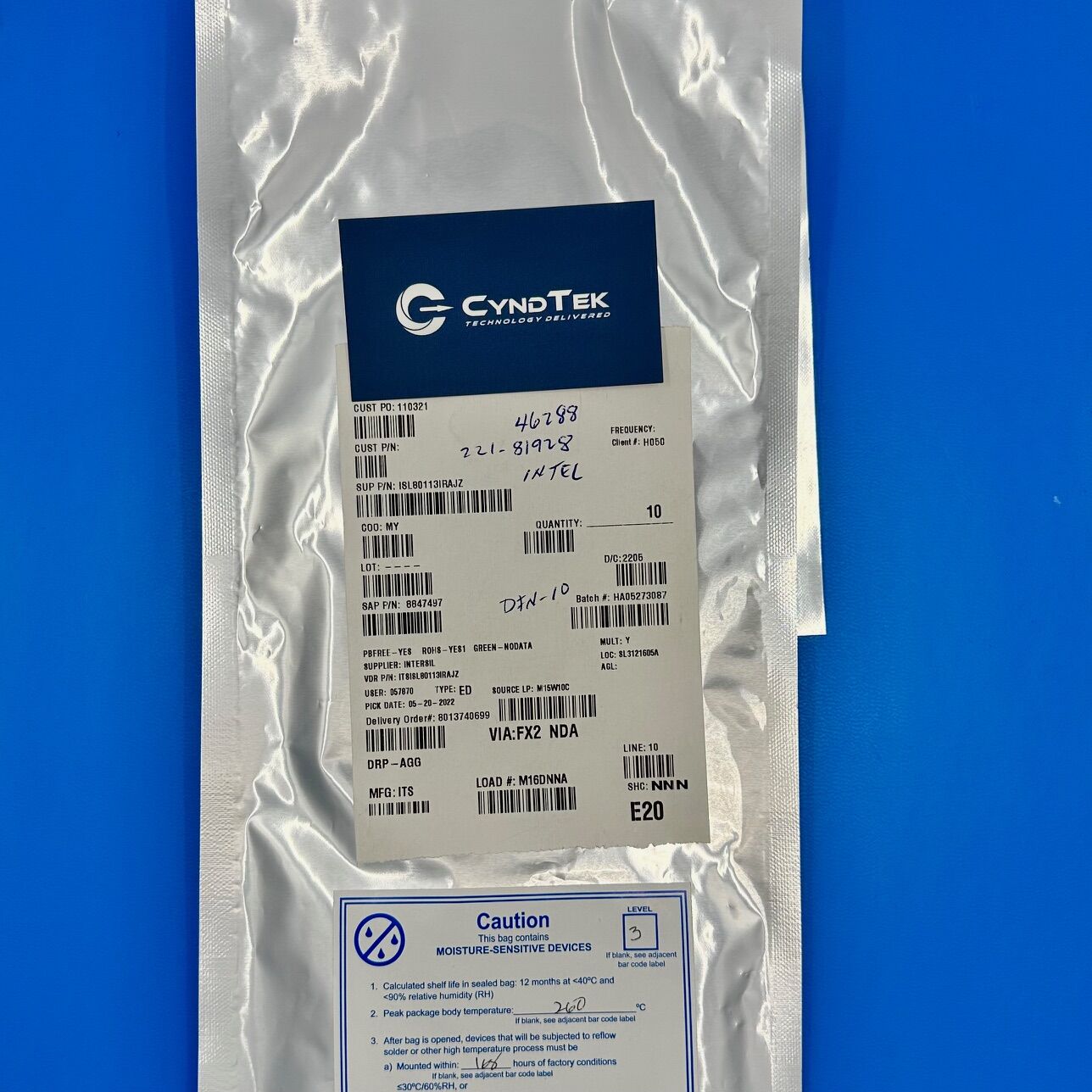

ISL80113IRAJZ Specifications
Manufacturer: Renesas Electronics
Part Number: ISL80113IRAJZ
Product Type: Synchronous buck regulator
Output Voltage: Adjustable via external resistors
Output Current: Up to 3 A
Input Voltage Range: 2.7 V to 5.5 V
Switching Frequency: High frequency operation
Control Architecture: Current mode control
Efficiency: High efficiency conversion
Package Type: DFN
Mounting Type: Surface mount
Protection Features: Overcurrent, overtemperature, undervoltage lockout
Operating Temperature Range: -40 °C to +125 °C
Key Features
The ISL80113IRAJZ delivers efficient DC to DC regulation in a compact footprint. Additionally, its synchronous architecture improves efficiency at light and heavy loads. Moreover, adjustable output voltage supports flexible power rail design. Furthermore, integrated protection features enhance system reliability.
Applications
Point of load power supplies
Microcontroller and processor power rails
FPGA and ASIC auxiliary rails
Portable and battery powered devices
Industrial control electronics
Telecommunications equipment
Embedded computing systems
Power management subsystems
Product Overview
The Renesas ISL80113IRAJZ synchronous buck regulator is designed to provide stable and efficient power conversion for low voltage systems. Specifically, it supports up to 3 A of output current from a 2.7 V to 5.5 V input range. As a result, designers can power modern digital loads with minimal external components. Moreover, the high efficiency architecture reduces power loss and heat generation. Therefore, overall system performance improves in space constrained designs.
In addition, the adjustable output voltage allows the regulator to support multiple rail requirements. Furthermore, current mode control improves transient response and stability under dynamic loads. Consequently, power integrity is maintained in demanding applications. Because of its compact DFN surface mount package, the device integrates easily into high density PCB layouts. As a result, board space is conserved without sacrificing performance.
Overall, this buck regulator offers a balance of efficiency, flexibility, and protection. Therefore, it is a practical choice for modern power management designs requiring dependable regulation.
