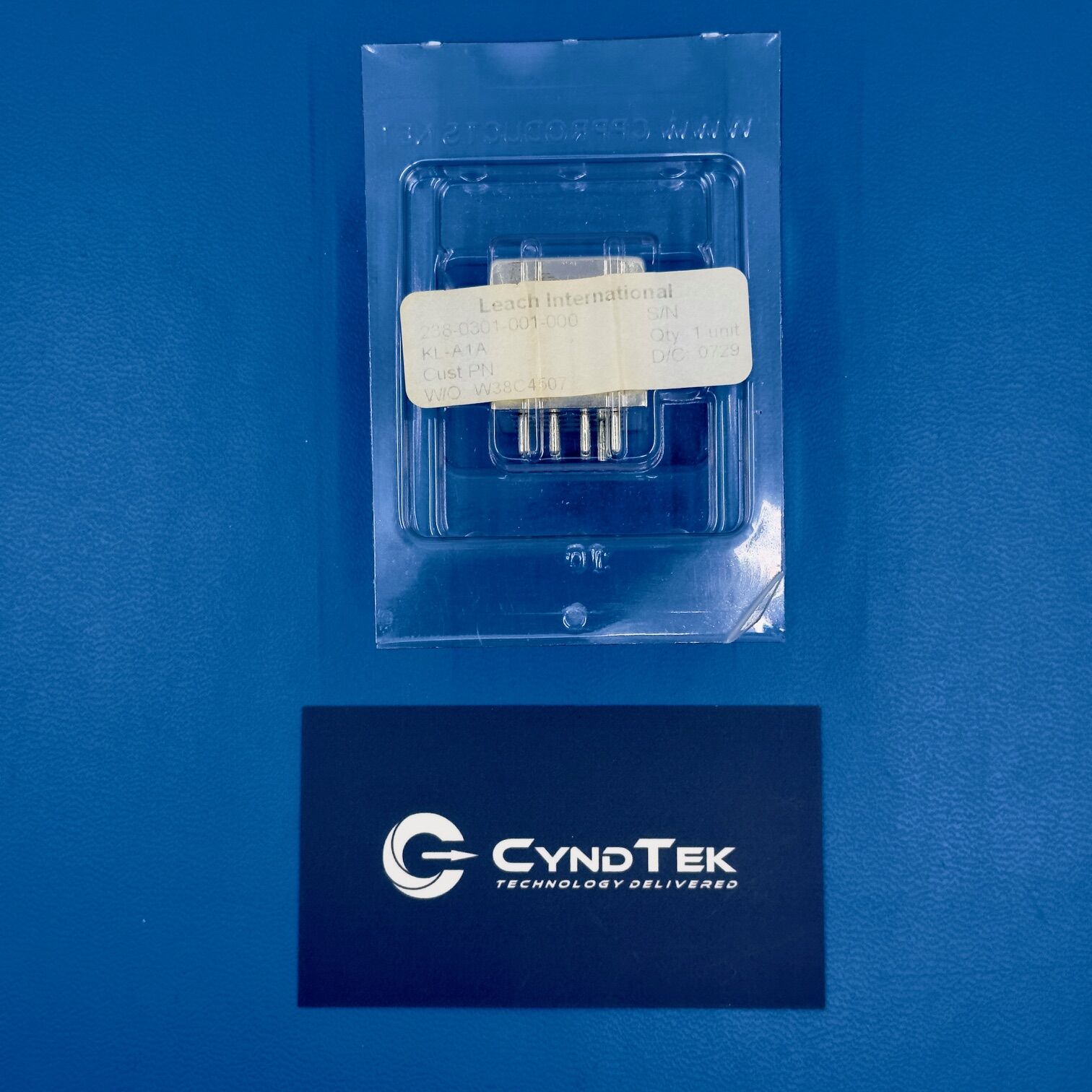

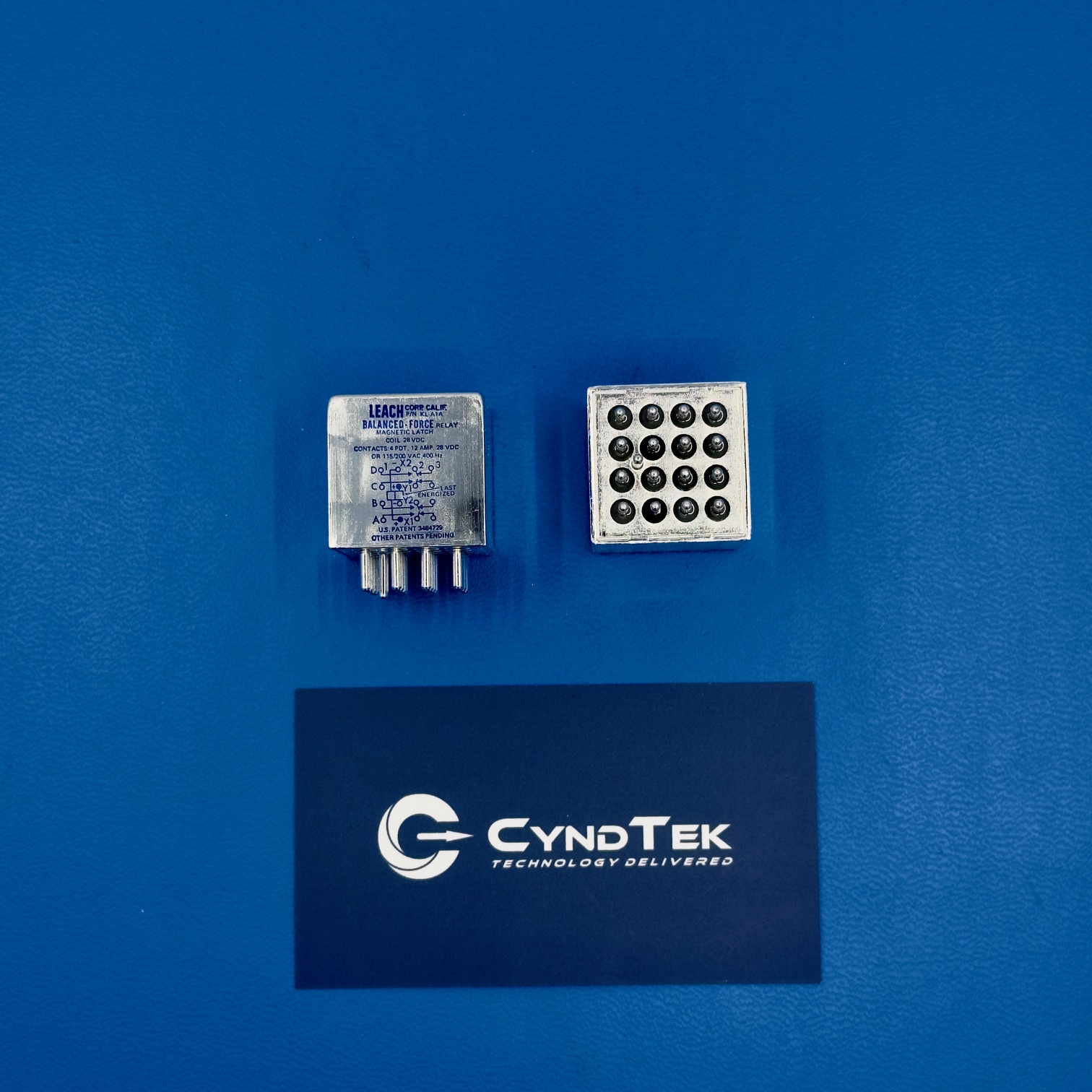

KL-A1A Specifications
Manufacturer: Leach
Product Category: Magnetic Latching Relay
Part Number: KL-A1A
Relay Type: Magnetic Latching
Contact Configuration: 4PDT
Contact Rating: 12 A
Coil Voltage: Military Configuration
Mounting Style: Panel / Chassis Mount
Termination Style: Solder or Terminal Pins
Qualification Standard: MIL-PRF-83536
Contact Material: Silver Alloy
Application Environment: Aerospace and Defense
Operating Temperature: Military Range
Product Condition: New
NSN: 5945-01-016-3614
Key Features
The KL-A1A relay provides magnetic latching operation for high-reliability aerospace systems. Because it meets MIL-PRF-83536 requirements, it supports dependable performance in regulated environments. In addition, the 4PDT contact configuration allows flexible switching across multiple circuits. The 12 amp contact rating also supports medium-power load applications. Therefore, it is well suited for aircraft and defense platforms.
Applications
Aircraft power distribution systems
Military communication equipment
Defense control panels
Avionics switching assemblies
Radar and sensor modules
Industrial high-reliability switching
Product Overview
The KL-A1A from Leach is a 4PDT magnetic latching relay qualified to MIL-PRF-83536 standards. Because magnetic latching relays maintain position without continuous coil power, they help reduce energy consumption in aerospace systems. The 12 amp contact rating supports reliable switching of power and signal circuits in regulated assemblies.
Moreover, the rugged construction is designed for vibration resistance and extended service life. This makes the relay suitable for aircraft platforms, military vehicles, and defense electronic systems. In addition, compliance with military performance standards ensures predictable operation in mission-critical applications.
As a result, engineers rely on KL-A1A relays when building or maintaining compliant aerospace switching systems. Cyndtek supplies new Leach military-grade components ready for immediate deployment.
