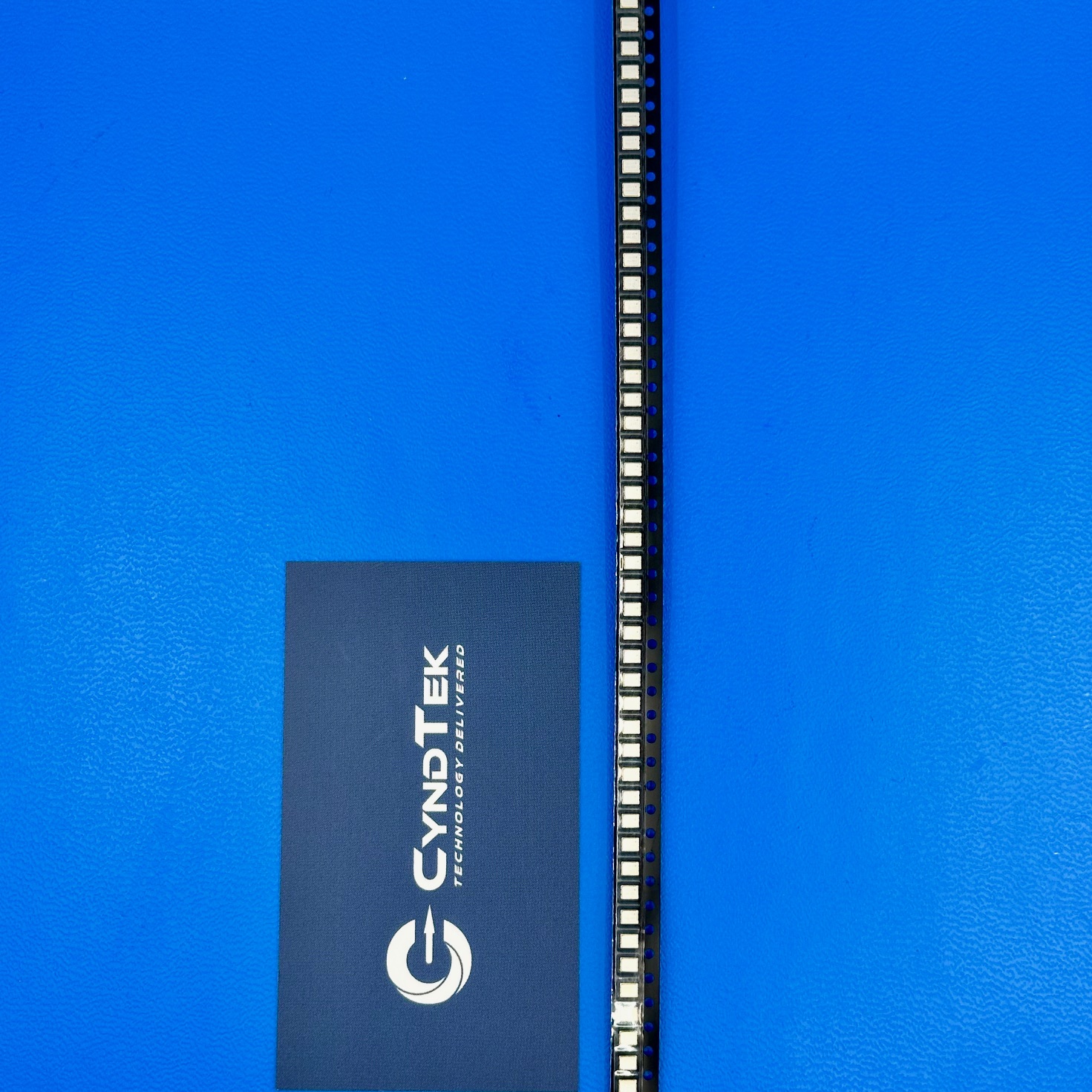

LFSPXO076709

LFSPXO076709 Specifications

Manufacturer: IQD Frequency Products
Part Number: LFSPXO076709
Product Type: Surface Mount Crystal Clock Oscillator
Frequency: 125.0 MHz
Frequency Stability: ±25 ppm
Supply Voltage: 3.3 V ±10%
Output Type: CMOS
Load Capacitance: 15 pF maximum
Operating Temperature Range: -40°C to +85°C
Start-Up Time: 10 ms max, 0.7 ms typical to 90% final amplitude
Current Consumption: 30 mA max
Standby Current: 10 µA max
Duty Cycle: 40% to 60%
Rise and Fall Time: 5.0 ns max
Package / Case: 3.2 mm × 2.5 mm × 1.2 mm
Package Style: Ceramic with metal lid, hermetically sealed
RoHS Status: RoHS Compliant

Key Features

The LFSPXO076709 is a surface mount crystal oscillator that offers reliable high-frequency performance in compact designs. It operates at 125.0 MHz and delivers CMOS-compatible output, making it suitable for digital timing applications. With frequency stability rated at ±25 ppm, it ensures consistent performance even in wide temperature environments. The oscillator supports a supply voltage of 3.3 V with a 10% tolerance and draws just 30 mA during active operation. In standby mode, the current drops to as little as 10 µA, helping reduce system power. Its compact, hermetically sealed ceramic package measures just 3.2 mm × 2.5 mm × 1.2 mm, offering robust protection. The device also features fast start-up performance, typically reaching 90% of amplitude in just 0.7 ms.

Applications

Timing control for Ethernet communication systems
Clock synchronization in physical layer interface devices
Precision timing in network routers and switches
Frequency generation in industrial control modules
Clock reference in telecom and infrastructure circuits

Product Overview

IQD’s LFSPXO076709 is built for systems that demand stable and precise clock signals. It is especially useful in environments that operate across a broad temperature range. Because of its small size and sealed ceramic package, it integrates easily into compact, high-performance PCBs. Furthermore, its CMOS output and rapid start-up enhance responsiveness in time-sensitive circuits. The oscillator is engineered to deliver reliable timing with minimal noise or distortion. Its low power standby mode adds to its versatility in applications where energy savings are crucial. Designed for Ethernet, industrial, and telecom timing, the LFSPXO076709 stands out for both performance and efficiency.
