LLL153C70E105ME21DTR

LLL153C70E105ME21DTR

$0.01

Multilayer Ceramic Capacitors MLCC – SMD JR
  • Manufacturer: Murata
  • Part Number: LLL153C70E105ME21DTR

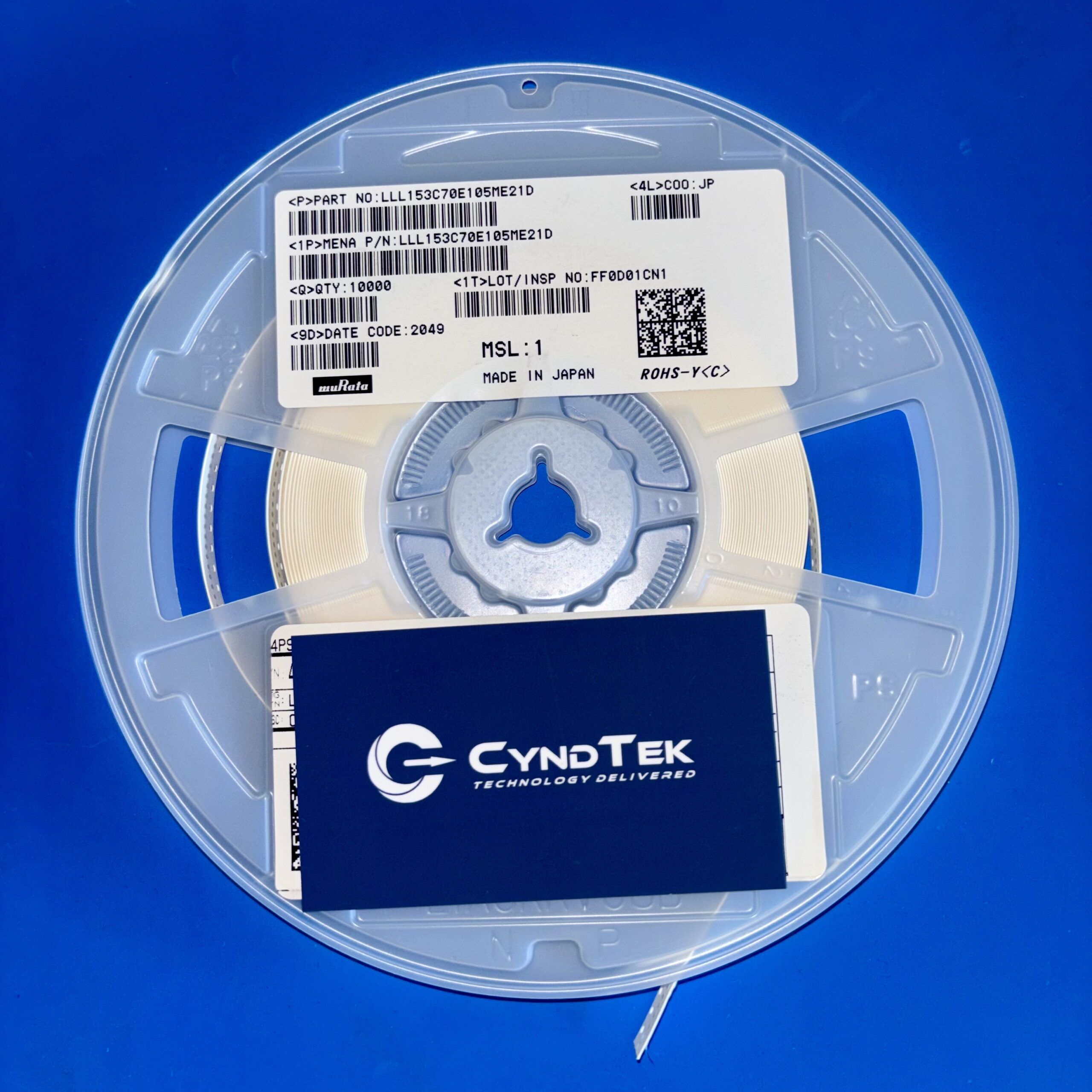

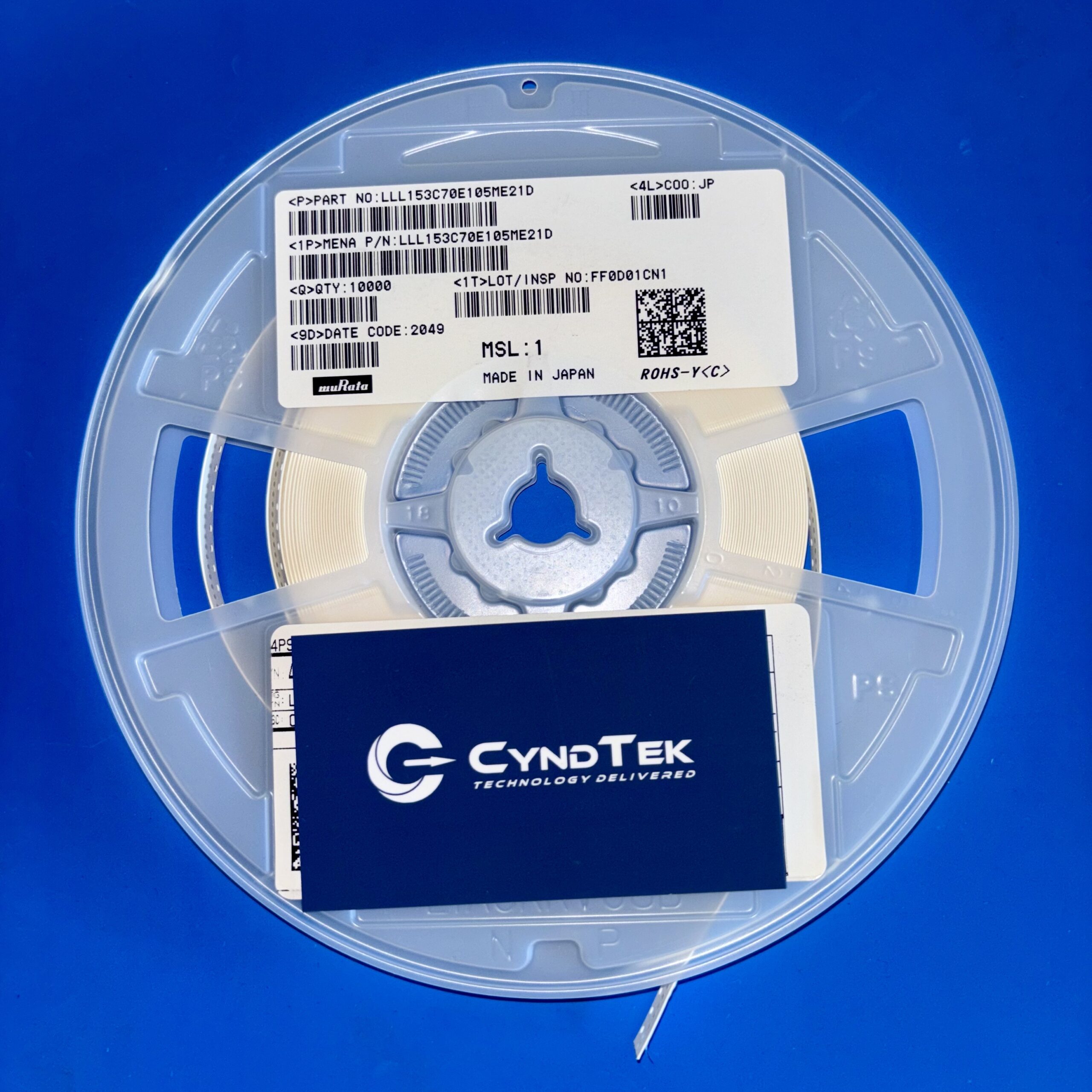

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2049

Availability: 300 in stock

SKU PAC004C-18 Category Brand:

LLL153C70E105ME21DTR Specifications

Manufacturer: Murata Electronics
Part Number: LLL153C70E105ME21DTR
Product Type: Multilayer Ceramic Capacitor (MLCC)
Capacitance: 1.0 µF ±20%
Voltage Rating: 2.5 V DC
Dielectric Material: X7S
Temperature Coefficient: ±22% from -55°C to +125°C
Package / Case: 0402 (1005 Metric)
Dimensions: 1.0 mm (L) x 0.5 mm (W) x 0.3 mm (H)
Operating Temperature Range: -55°C to +125°C
Mounting Type: Surface Mount
Equivalent Series Inductance (ESL): Low ESL design
RoHS Status: RoHS Compliant

Key Features

The LLL153C70E105ME21DTR from Murata Electronics is a compact, surface-mount multilayer ceramic capacitor designed for applications requiring stable capacitance and low equivalent series inductance (ESL). With a capacitance of 1.0 µF and a voltage rating of 2.5 V DC, it is suitable for decoupling and smoothing applications in high-speed electronic circuits. The X7S dielectric material ensures consistent performance over a wide temperature range, maintaining capacitance within ±22% from -55°C to +125°C. Its 0402 package size allows for efficient use of PCB space, making it ideal for modern, compact electronic devices. The low ESL design enhances its effectiveness in high-frequency applications.

Applications

Decoupling and bypassing in high-speed microprocessors to ensure stable operation.
Smoothing and filtering in power supply lines of compact electronic circuits.
Noise suppression in high-frequency signal lines for improved signal integrity.
Coupling and decoupling in RF modules to maintain performance.
Integration into wearable technology requiring miniature components.

Product Overview

Murata’s LLL153C70E105ME21DTR MLCC offers designers a reliable solution for capacitance needs in space-constrained applications. Its stable X7S dielectric material provides consistent capacitance across a broad temperature range, ensuring reliable performance in various environmental conditions. The capacitor’s miniature 0402 package supports high-density PCB layouts, making it suitable for modern electronic devices where space is at a premium. The low ESL design further enhances its suitability for high-frequency applications, contributing to improved overall circuit performance. Compliance with RoHS standards reflects Murata’s commitment to environmental responsibility.
