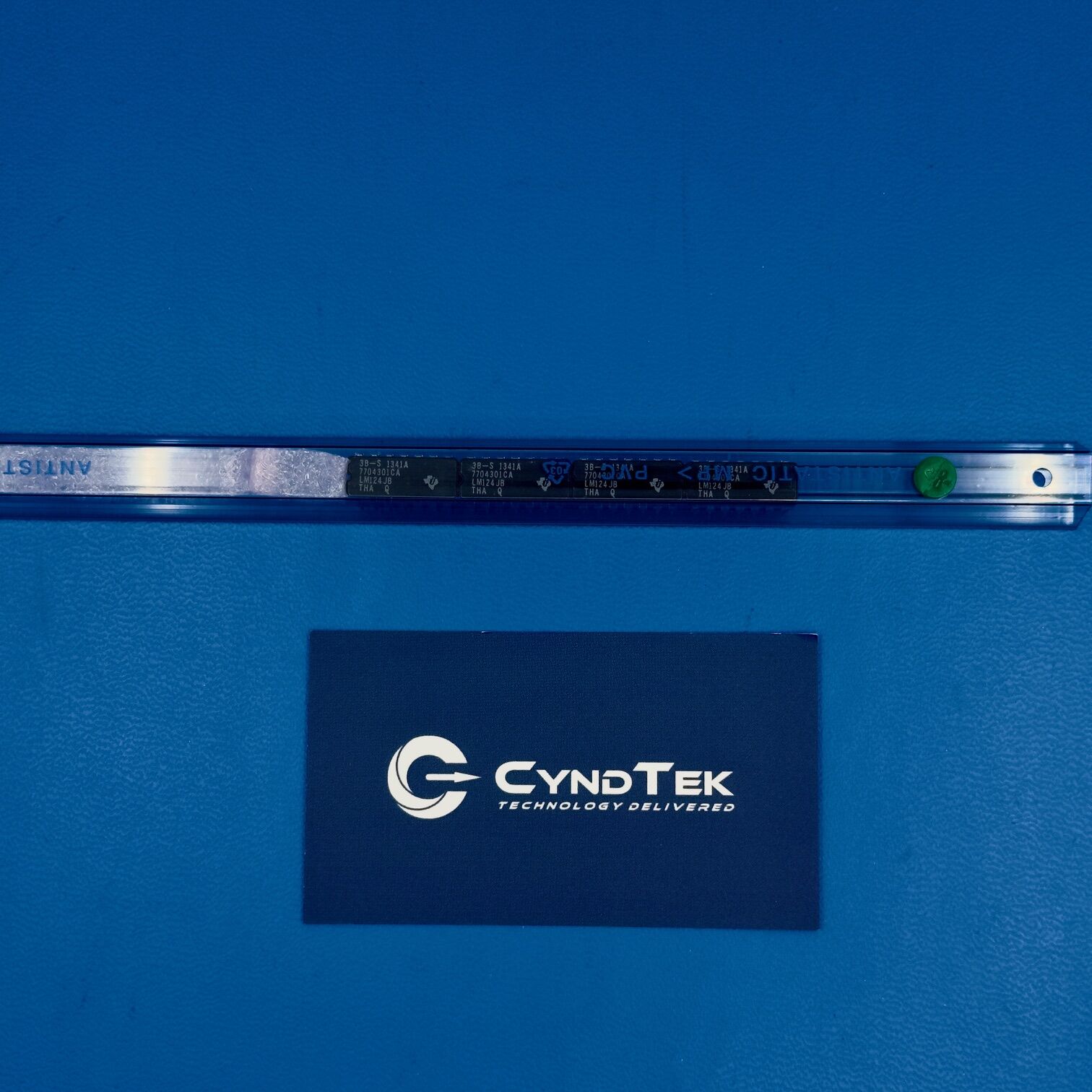

LM124JB Specifications
Manufacturer: Texas Instruments
Part Number: LM124JB
NSN: 5962-00-113-9459
Device Type: Operational Amplifier
Number of Amplifiers: 4
Amplifier Configuration: Quad
Supply Voltage Range: 3 V to 32 V Single Supply
Input Offset Voltage: Low Offset
Input Bias Current: Low
Output Type: Linear
Package Type: 14-Lead Ceramic DIP
Mounting Type: Through Hole
Operating Temperature Range: -55°C to +125°C
Compliance: Military Temperature Range
Packaging: Factory
Key Features
The LM124JB is a quad operational amplifier designed for reliable analog signal processing in high-reliability systems. It integrates four independent amplifiers within a single 14-lead ceramic DIP package. Additionally, the wide supply voltage range supports flexible single-supply or dual-supply configurations. The low input offset characteristics improve accuracy in precision circuits. Because it operates across the full military temperature range, it integrates into aerospace and defense platforms. As a result, it delivers dependable linear amplification in demanding environments.
Applications
Military avionics analog systems
Ground vehicle control electronics
Naval signal conditioning modules
Aerospace instrumentation circuits
Defense power regulation boards
Industrial automation systems
Sensor interface modules
General purpose amplification circuits
Product Overview
The LM124JB from Texas Instruments delivers stable quad amplification for rugged electronic systems. First, its ceramic DIP construction enhances environmental durability. Furthermore, the quad architecture reduces component count in multi-channel designs. Because it supports a wide operating voltage range, it integrates into both legacy and modern analog platforms.
Moreover, the device maintains reliable performance across extended temperature conditions. In addition, through-hole mounting supports serviceability and compatibility with existing board layouts. Therefore, it is suitable for both new system builds and maintenance replacements. Overall, this operational amplifier provides dependable analog performance, flexible configuration, and long-term operational stability.
