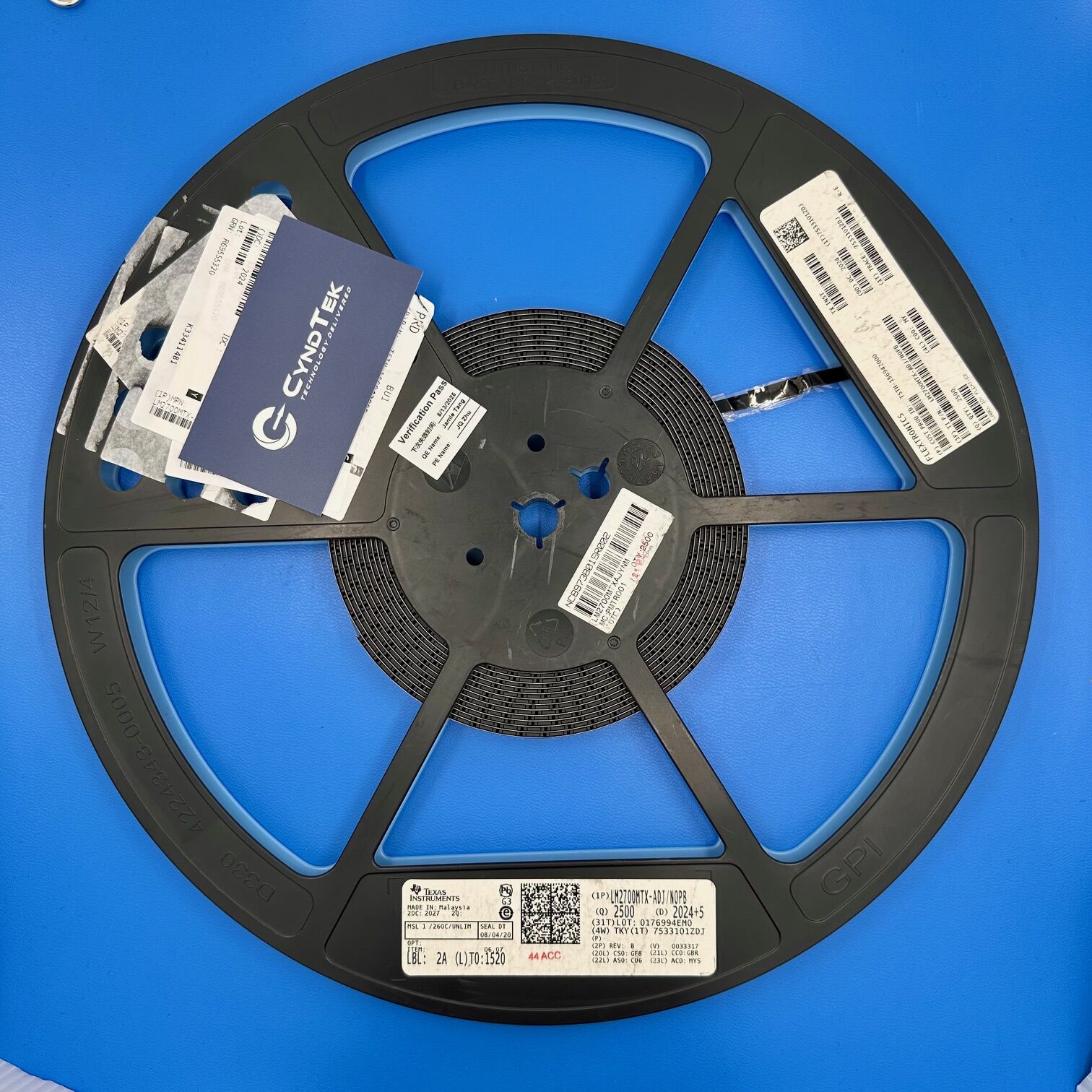

LM2700MTX-ADJ/NOPB

LM2700MTX-ADJ/NOPB Specifications

Manufacturer: Texas Instruments
Part Number: LM2700MTX-ADJ/NOPB
Product Type: Step-Up PWM DC-DC Converter
Input Voltage Range: 2.2 V to 12 V
Output Voltage Range: 1.26 V to 17.5 V
Switch Current Limit: 3.6 A
Switching Frequency: Selectable between 600 kHz and 1.25 MHz
Efficiency: High efficiency with low output capacitance
Operating Temperature Range: -40°C to +125°C
Package / Case: 14-TSSOP (Thin Shrink Small Outline Package)
RoHS Status: RoHS Compliant

Key Features

The LM2700MTX-ADJ/NOPB from Texas Instruments is a versatile step-up PWM DC-DC converter designed to provide efficient voltage boosting with a high switch current limit of 3.6 A. It offers a wide input voltage range from 2.2 V to 12 V and an adjustable output voltage range between 1.26 V and 17.5 V, accommodating various power supply requirements. The device features selectable switching frequencies of 600 kHz or 1.25 MHz. Thus allowing designers to optimize for efficiency or component size. Its high efficiency operation minimizes heat dissipation, making it suitable for compact and thermally sensitive applications. The LM2700MTX-ADJ/NOPB includes built-in protection features such as input undervoltage protection and over-temperature protection.

Applications

Powering LCD bias supplies in portable devices
Boosting voltage in battery-operated handheld electronics
Providing stable power in GSM/CDMA mobile phones
Driving LEDs in digital cameras
Supplying power in portable medical instruments

Product Overview

Texas Instruments’ LM2700MTX-ADJ/NOPB is engineered to deliver efficient and reliable step-up voltage conversion for a wide range of applications. Its adjustable output voltage and selectable switching frequencies provide flexibility in design, allowing optimization for efficiency or component size constraints. The high switch current limit of 3.6 A enables the support of higher load currents, making it suitable for applications requiring substantial power delivery. The device’s compact 14-TSSOP package facilitates integration into space-constrained designs. Its robust protection features ensure dependable operation across a broad temperature range. Compliance with RoHS standards reflects Texas Instruments’ commitment to environmentally responsible manufacturing practices.
