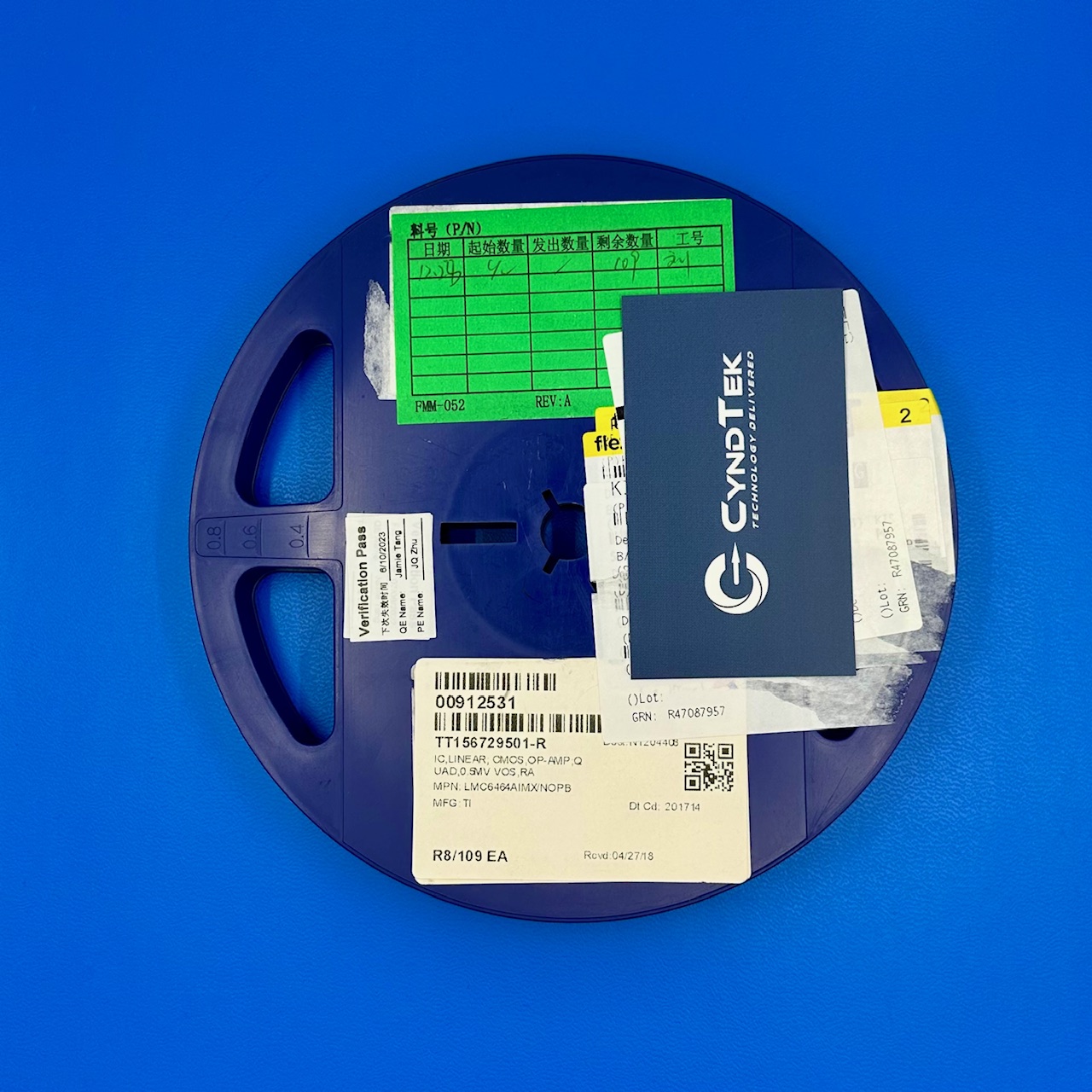

LMC6464AIMX/NOPB

LMC6464AIMX/NOPB

$3.00

IC CMOS 4 CIRCUIT 14SOIC
  • Manufacturer: Texas Instruments
  • Part Number:  LMC6464AIMX/NOPB
  • Packaging: Cut Tape
  • Quantity: Each
  • Datecode: 1714

Availability: 133 in stock

SKU TSX050H Category Brand:

LMC6464AIMX/NOPB Specifications

Manufacturer: Texas Instruments
Part Number: LMC6464AIMX/NOPB
Product Type: Quad CMOS Operational Amplifier
Supply Voltage Range: 3 V to 15 V
Input Common-Mode Voltage Range: Includes both supply rails
Output Voltage Swing: Rail-to-rail
Supply Current: 20 µA per amplifier (typical)
Gain Bandwidth Product: 50 kHz
Slew Rate: 0.023 V/µs
Package / Case: 14-SOIC
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The LMC6464AIMX/NOPB is a quad CMOS operational amplifier designed for applications requiring low power consumption and rail-to-rail input and output voltage ranges. With a typical supply current of 20 µA per amplifier, it is well-suited for battery-operated devices. The amplifier’s input common-mode voltage range includes both supply rails, enhancing its versatility in single-supply operations. Additionally, the rail-to-rail output swing ensures maximum dynamic signal range. Its low input bias current and offset voltage contribute to high accuracy in signal processing applications.

Applications

Battery-powered instruments
Portable communication devices
Medical instrumentation
Sensor interfaces
Low-power signal processing

Product Overview

The LMC6464AIMX/NOPB from Texas Instruments integrates four independent CMOS operational amplifiers, each featuring low power consumption and rail-to-rail input/output capabilities. Operating within a supply voltage range of 3 V to 15 V, this amplifier adapts to various power supply configurations. Its low supply current extends battery life in portable applications, while the rail-to-rail input and output facilitate full-range signal processing. The device’s low input bias current and offset voltage ensure precise signal amplification, making it suitable for applications requiring high accuracy. Packaged in a 14-SOIC case, it supports surface-mount technology, allowing for compact and efficient PCB layouts. The LMC6464AIMX/NOPB operates reliably across a temperature range of -40°C to +85°C and complies with RoHS standards, aligning with environmental safety requirements.
