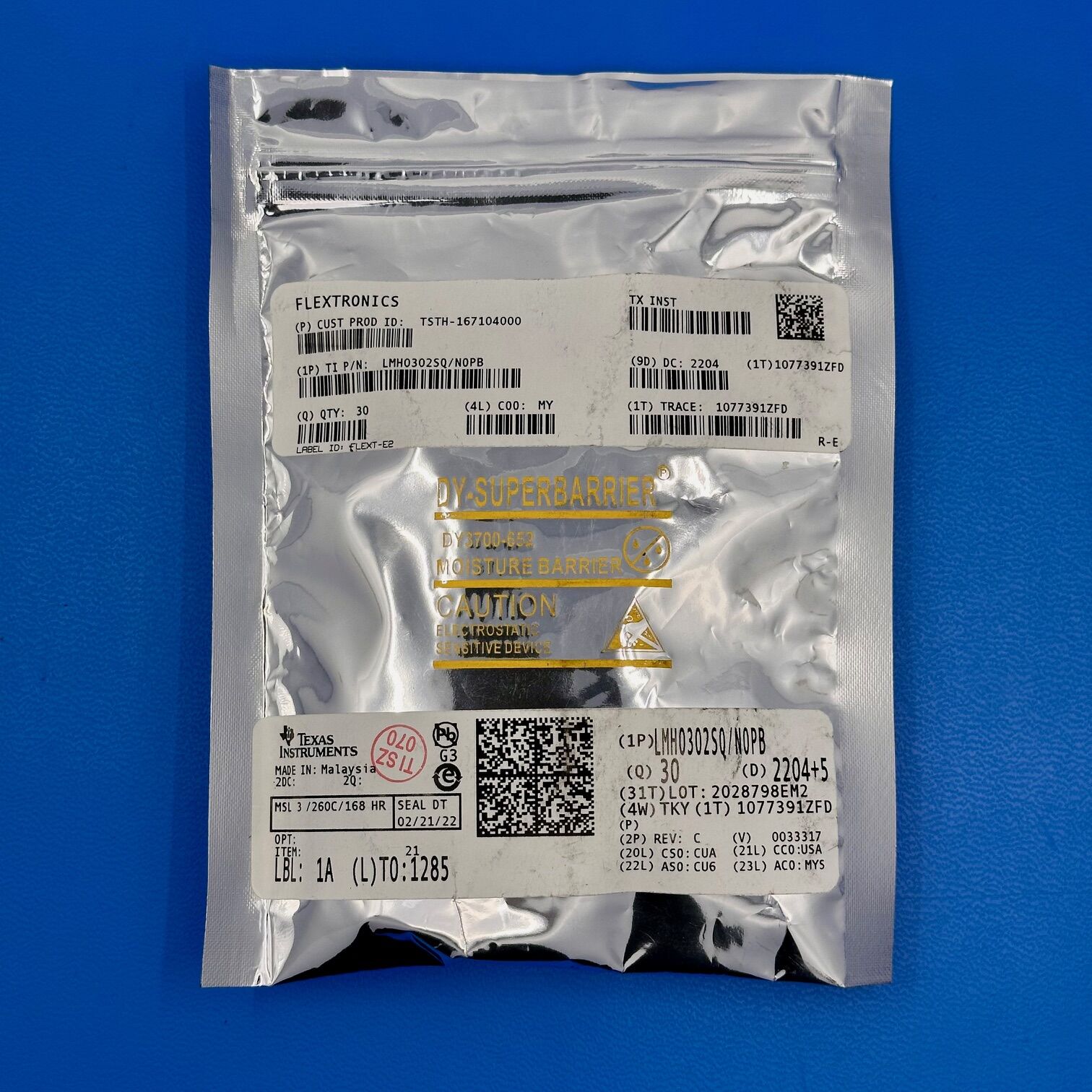

LMH0302SQ/NOPB

LMH0302SQ/NOPB Specifications

Manufacturer: Texas Instruments
Part Number: LMH0302SQ/NOPB
Product Type: 3-Gbps HD/SD SDI Cable Driver
Data Rate: Up to 2.97 Gbps
Input Impedance: 100 Ω Differential
Output Impedance: 75 Ω Single-Ended
Output Voltage Swing: 800 mVp-p into 75 Ω
Slew Rate Control: Selectable for SD and HD modes
Supported Standards: ST 424, ST 292, ST 259, DVB-ASI
Power Supply Voltage: 3.3 V
Power Consumption: 125 mW (SD Mode), 165 mW (HD Mode)
Package / Case: 16-Pin WQFN (4.00 mm × 4.00 mm)
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The LMH0302SQ/NOPB is a high-speed serial digital interface cable driver developed by Texas Instruments for professional broadcast video systems. Designed to support data rates up to 2.97 Gbps, this device is ideal for standards such as SMPTE ST 424, ST 292, ST 344, and ST 259. It also supports DVB-ASI transmission at 270 Mbps. The 100 Ω differential input ensures excellent signal integrity, while the 75 Ω single-ended output is optimized for standard video transmission lines. With a selectable slew rate function, designers can adapt the signal shape to suit either SD or HD requirements, improving compatibility and minimizing jitter. Operating from a single 3.3 V supply and consuming minimal power, the LMH0302SQ/NOPB balances high performance with energy efficiency. Its compact 16-pin WQFN package allows it to integrate easily into dense PCB layouts.

Applications

Serial digital video interfaces in HD and SD broadcast systems
Digital video routers requiring high-speed, low-jitter output
Broadcast-grade distribution amplifiers with extended cable reach
High-definition video processors in professional editing consoles
Studio-grade signal transmission equipment using coaxial interfaces

Product Overview

Texas Instruments’ LMH0302SQ/NOPB cable driver provides a robust and flexible solution for delivering broadcast-quality video across 75 Ω coaxial lines. With support for 3-Gbps serial data rates, it is fully compliant with major industry standards used in professional media applications. The built-in slew rate control makes it easy to fine-tune output transitions to match the requirements of different operating modes. This ensures clean signal integrity across long distances. This device’s low power draw makes it suitable for systems where thermal efficiency is critical. Furthermore, it operates reliably across a wide industrial temperature range and offers footprint compatibility with previous-generation devices. Whether deployed in routers, amplifiers, or digital video systems, the LMH0302SQ/NOPB offers exceptional reliability and performance in demanding environments.
