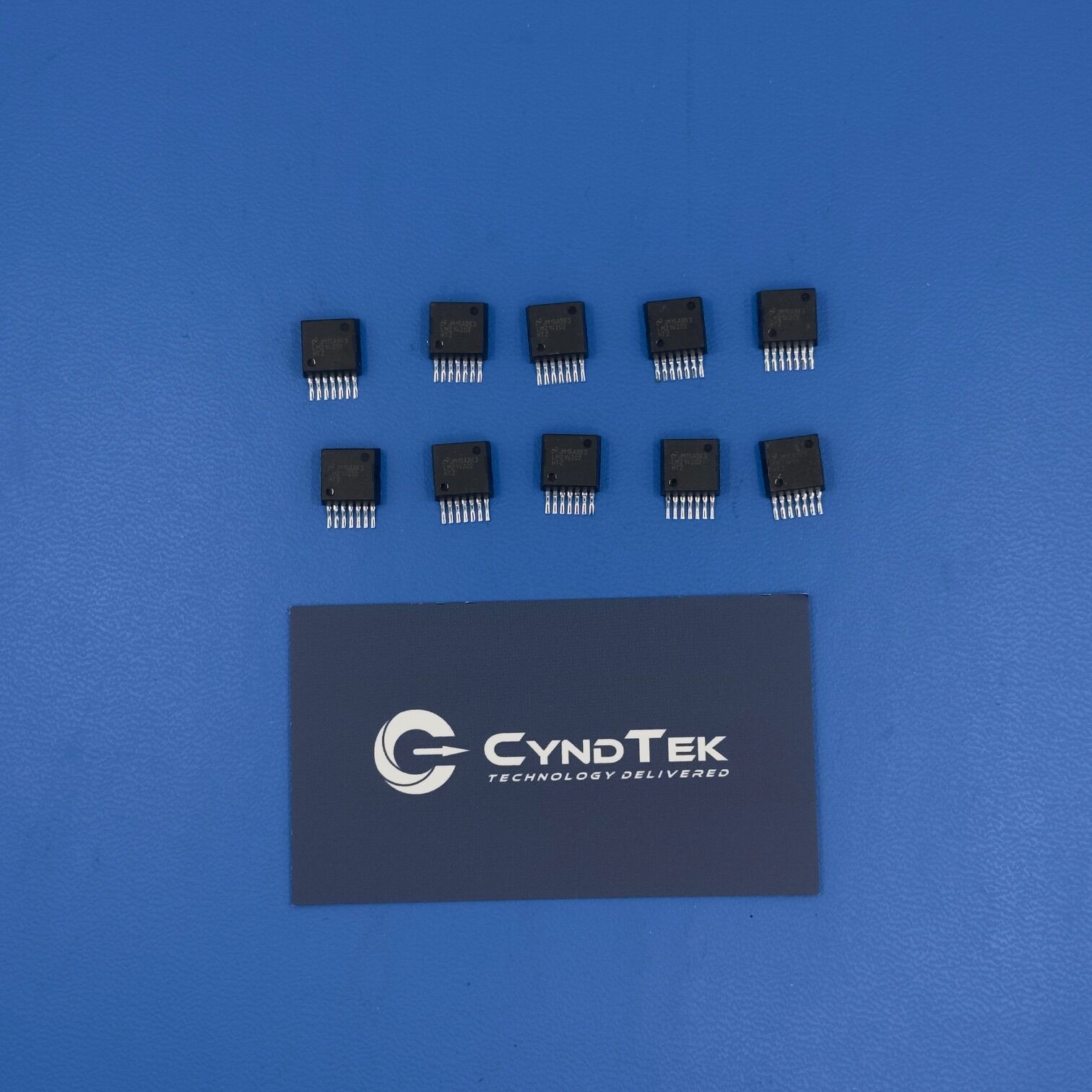

LMZ14202HTZ/NOPB Specifications
Manufacturer: Texas Instruments
Part Number: LMZ14202HTZ/NOPB
Product Type: DC-DC Step-Down Power Module
Input Voltage Range: 6 V to 42 V
Output Voltage Range: 0.8 V to 6 V Adjustable
Output Current: 2 A Maximum
Conversion Type: Buck Switching Regulator Module
Efficiency: High Efficiency Integrated Switching Design
Switching Frequency: Fixed Frequency Operation
Package Type: TO-PMOD Power Module
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +125°C
Application Class: Industrial Power Management
Packaging: Factory
Key Features
The LMZ14202HTZ/NOPB is an integrated DC-DC buck converter power module designed for efficient step-down voltage regulation. It accepts input voltages from 6 V to 42 V and delivers adjustable output voltages from 0.8 V to 6 V. Additionally, the module integrates the power switch, controller, inductor, and compensation network within a single compact package. This integration simplifies PCB layout and reduces external component requirements. Because the design uses a high-efficiency switching architecture, it minimizes power loss and thermal generation. As a result, the module supports reliable power conversion in compact embedded electronics.
Applications
Industrial automation power systems
Embedded computing platforms
Telecommunication equipment
Distributed power architectures
Networking hardware power regulation
Instrumentation electronics
Factory control modules
High-efficiency power supply systems
Product Overview
The LMZ14202HTZ/NOPB from Texas Instruments provides a compact and reliable power conversion solution for modern electronic systems. First, the integrated power module architecture reduces design complexity and shortens development cycles. Furthermore, the wide input voltage range allows operation from common industrial power rails such as 12 V, 24 V, and 36 V systems. Because the converter integrates the inductor and switching components internally, it simplifies PCB layout and improves reliability.
Moreover, the adjustable output voltage supports a wide range of digital and analog electronics requiring regulated supply rails. In addition, the efficient switching design reduces heat generation and improves overall system efficiency. Therefore, the LMZ14202HTZ/NOPB is commonly used in embedded processors, industrial controllers, and communication equipment. Overall, this DC-DC converter module delivers reliable voltage regulation, simplified power design, and efficient operation in compact electronic assemblies.
