LMZ31710RVQR

LMZ31710RVQR

$13.00

DC DC CONVERTER 0.6-5.5V 55W
  • Manufacturer: Texas Instruments
  • Part Number: LMZ31710RVQR

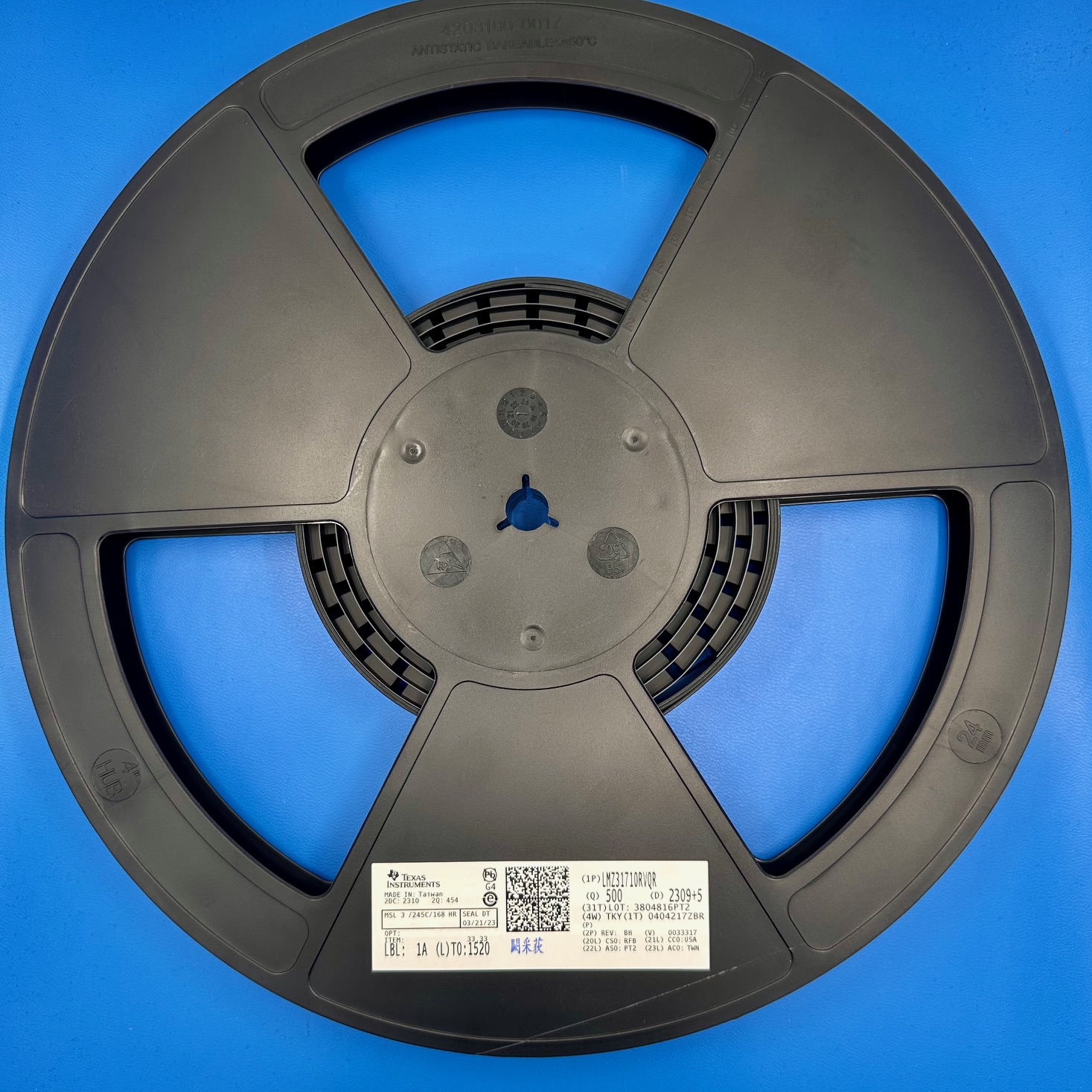

  • Packaging: Tape and Reel
  • Quantity: Each
  • Datecode: 2309

Availability: 83 in stock

SKU TSX056B Category Brand:

LMZ31710RVQR Specifications

Manufacturer: Texas Instruments
Part Number: LMZ31710RVQR
Product Type: Non-Isolated Step-Down Power Module
Input Voltage Range: 2.95 V to 17 V
Output Voltage Range: 0.6 V to 5.5 V
Maximum Output Current: 10 A
Efficiency: Up to 95%
Switching Frequency: 200 kHz to 1.2 MHz (adjustable)
Control Features: Enable, Power Good, Soft Start, Frequency Synchronization
Protection Features: Overcurrent, Overtemperature, Undervoltage Lockout
Package / Case: 42-pin QFN (10 × 10 × 4.3 mm)
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +85°C
RoHS Status: RoHS Compliant

Key Features

The LMZ31710RVQR is a 10-A power module from Texas Instruments designed for space-constrained, high-performance systems. It integrates a DC/DC controller, power FETs, inductor, and passives into a single QFN package. Because it offers up to 95% efficiency, this module reduces heat output and enhances system reliability. Its wide input voltage range from 2.95 V to 17 V provides flexibility across varied power rails. Designers can fine-tune performance using features like adjustable soft start, programmable switching frequency, and synchronization capability. Robust protections such as overcurrent, overtemperature, and undervoltage ensure long-term durability in rugged applications.

Applications

Power delivery for telecom baseband and RF cards
High-current FPGA cores in industrial control units
Medical imaging devices such as ultrasound or CT scanners
Precision instrumentation in automated test equipment
Blade servers and high-efficiency computing power stages

Product Overview

The LMZ31710RVQR from Texas Instruments is a fully integrated power module aimed at delivering high current with minimal external components. Its 10-A capacity supports demanding processors and digital logic. The adjustable switching frequency and small footprint make it ideal for high-density PCBs. It offers simple implementation for point-of-load designs and includes useful telemetry such as power good indication and fault protection. Additionally, its surface-mountable QFN form factor allows tight layout placement with excellent thermal performance. As a result, this device helps engineers optimize board space while maintaining power integrity and system reliability.
