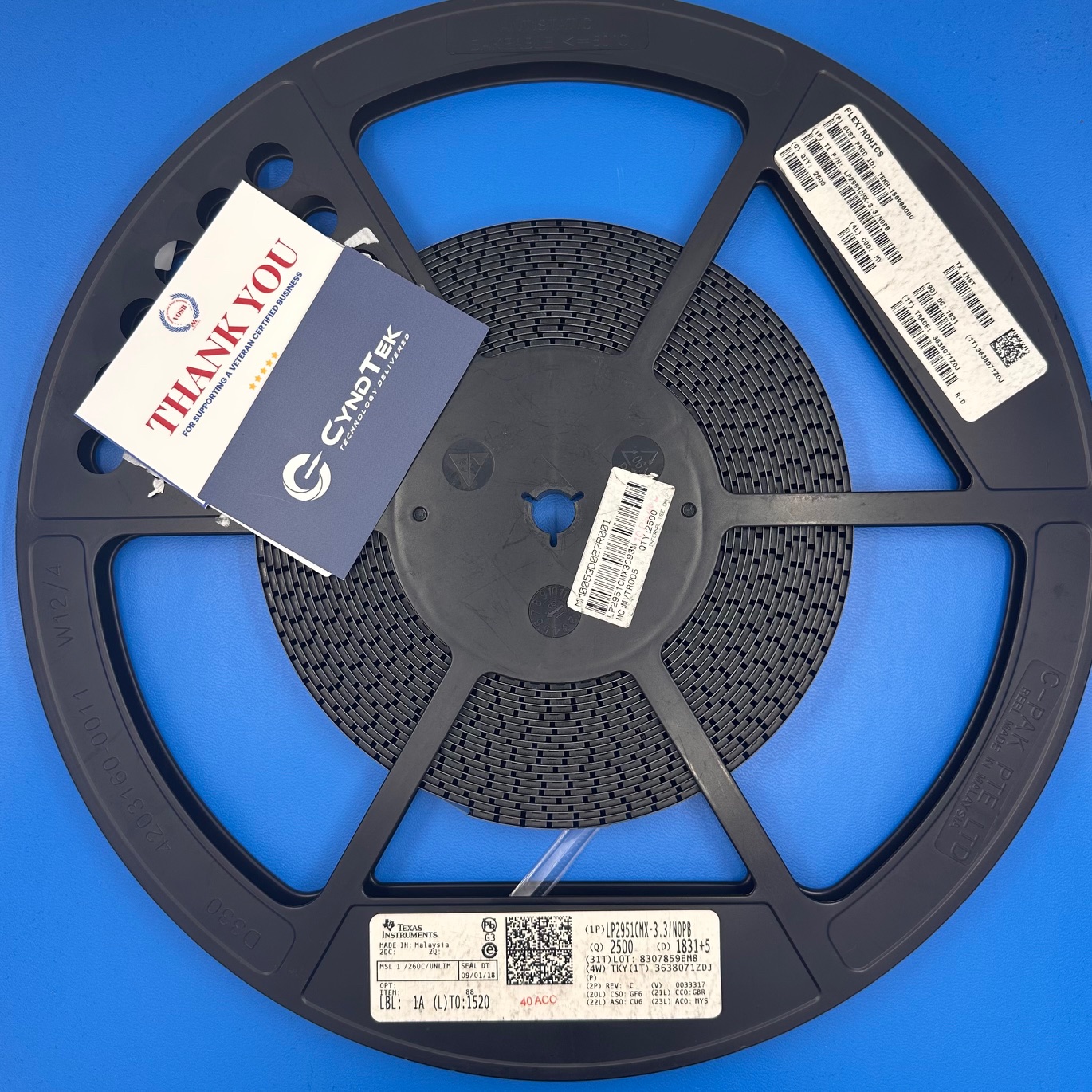

LP2951CMX-3.3/NOPB Specifications
Manufacturer: Texas Instruments
Part Number: LP2951CMX-3.3/NOPB
Product Type: Low-Dropout Voltage Regulator
Output Voltage: 3.3 V
Output Current: Up to 100 mA
Input Voltage Range: 2.3 V to 30 V
Dropout Voltage: Typically 40 mV at light loads; 380 mV at 100 mA
Quiescent Current: Typically 75 µA
Package / Case: 8-SOIC
Mounting Type: Surface Mount
Operating Temperature Range: -40°C to +125°C
RoHS Status: RoHS Compliant
Key Features
The LP2951CMX-3.3/NOPB is a micropower low-dropout voltage regulator designed to provide a stable 3.3 V output with high accuracy. It supports output currents up to 100 mA while maintaining a low quiescent current of typically 75 µA, making it ideal for battery-powered applications. The device exhibits a low dropout voltage, typically 40 mV at light loads and 380 mV at 100 mA, enhancing efficiency in low-voltage systems. Its wide input voltage range from 2.3 V to 30 V offers flexibility in various applications. Additionally, the regulator features excellent line and load regulation, ensuring consistent performance across varying conditions. The inclusion of current and thermal limiting mechanisms enhances its reliability and safety in operation.
Applications
Battery-powered devices
Portable instrumentation
Microprocessor power supplies
Consumer electronics
Industrial control systems
Product Overview
The LP2951CMX-3.3/NOPB from Texas Instruments is engineered to deliver precise and efficient voltage regulation in compact, low-power applications. Its low quiescent current and low dropout voltage make it particularly suitable for battery-operated devices, extending battery life while maintaining reliable performance. The regulator’s wide input voltage range accommodates diverse power sources, and its robust design includes current and thermal limiting features to protect against adverse operating conditions. Packaged in an 8-SOIC case, the LP2951CMX-3.3/NOPB supports surface-mount assembly, facilitating integration into space-constrained designs. Its operating temperature range of -40°C to +125°C ensures dependable operation in both consumer and industrial environments. Overall, this voltage regulator combines precision, efficiency, and versatility, making it a valuable component in various electronic systems.
