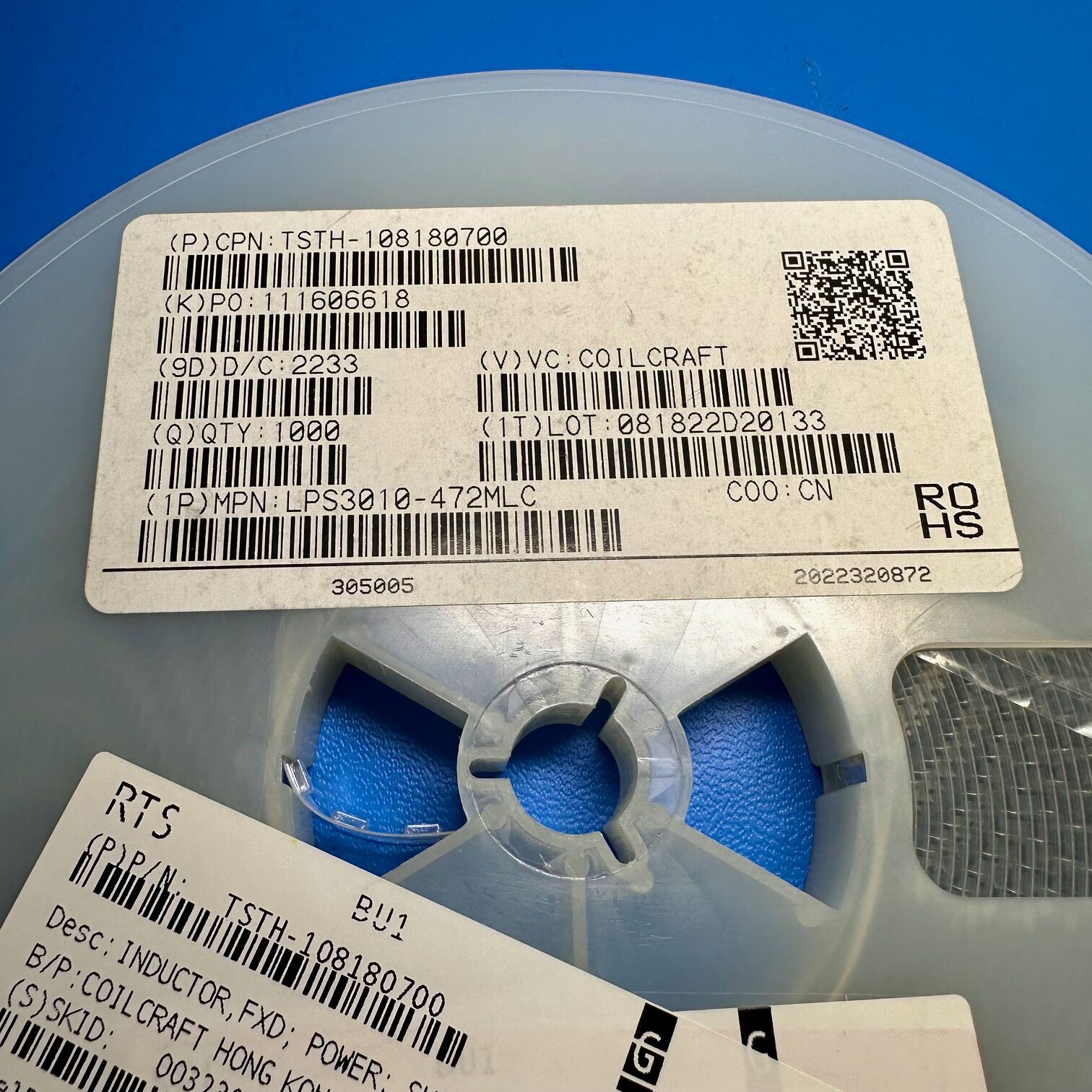

LPS3010-472MLC

LPS3010-472MLC Specifications

Manufacturer: Coilcraft
Part Number: LPS3010-472MLC
Inductance: 4.7 µH
Tolerance: ±20%
DC Resistance (DCR): 0.17 Ohms Max
Saturation Current: 1.3 A
Rated Current: 1.1 A
Shielding: Shielded
Mounting Type: Surface Mount (SMD)
Package / Case: 3.0mm x 3.0mm x 1.0mm
Operating Temperature Range: -40°C to +125°C
Termination: Solder

Key Features

• Compact and low-profile design for space-constrained applications.
• Shielded construction to minimize electromagnetic interference (EMI).
• High saturation current for improved performance in power applications.
• Low DC resistance (DCR) for efficient power conversion.
• Reliable surface mount design compatible with automated assembly processes.

Applications

• DC-DC converters in power management circuits.
• Consumer electronics such as smartphones, tablets, and wearables.
• Industrial control systems requiring efficient power regulation.
• LED lighting solutions for energy-efficient operation.
• Automotive electronics, including infotainment and ADAS systems.

Product Overview

The LPS3010-472MLC is a compact, high-performance power inductor designed for efficient energy storage and conversion in DC-DC converter applications. With a low-profile design measuring just 3.0mm x 3.0mm x 1.0mm, this inductor is ideal for applications where space is limited. Its shielded construction helps reduce EMI, ensuring stable operation in high-frequency environments. Additionally, the LPS3010-472MLC features a low DC resistance of 0.17 Ohms max, which enhances efficiency and minimizes power loss. Designed to operate reliably across a wide temperature range of -40°C to +125°C, this inductor is well-suited for use in industrial, automotive, and consumer electronics applications.
