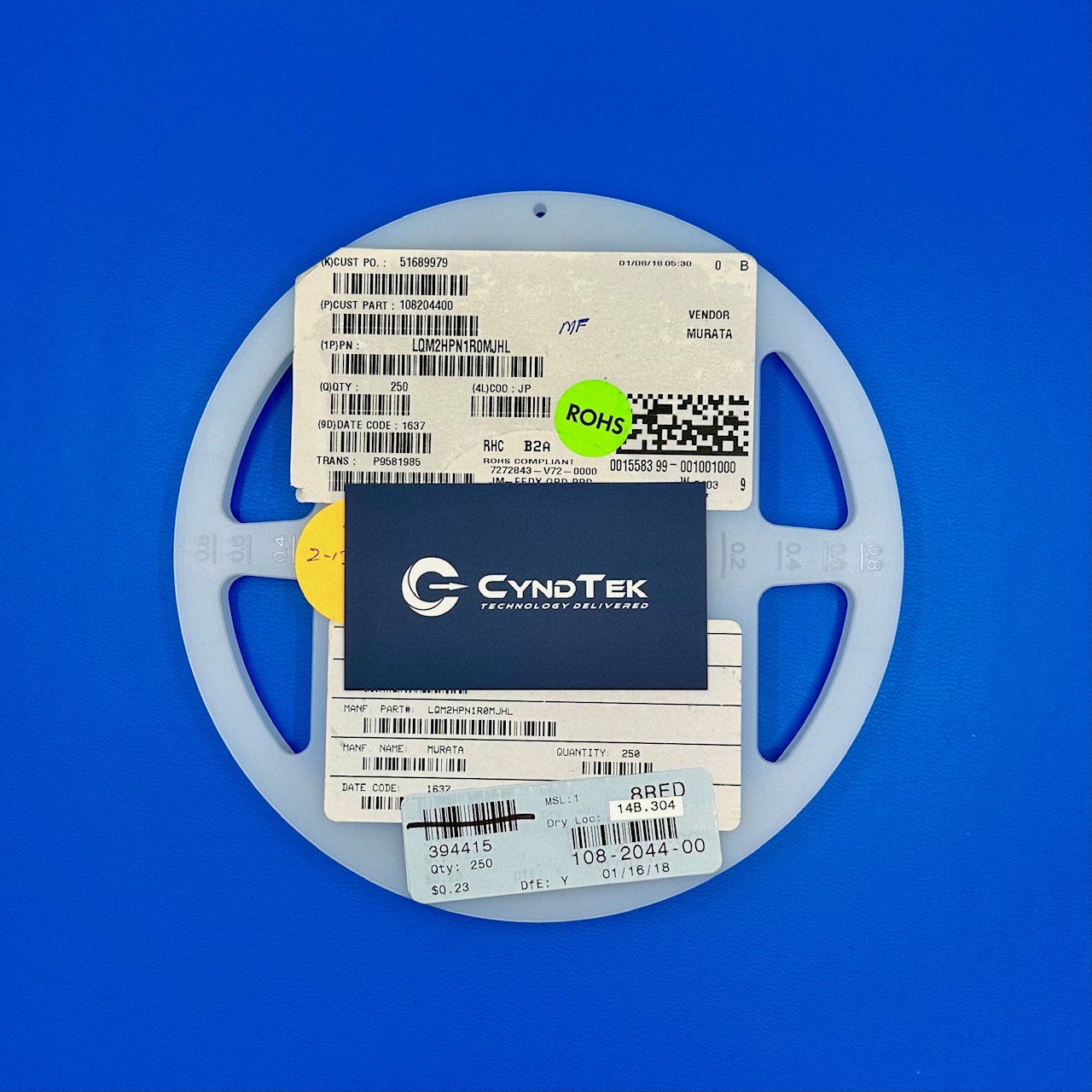

LQM2HPN1R0MJHL

LQM2HPN1R0MJHL

$0.15

IND PWR CHIP MULTI 1uH 20% 2.3A 63 MOHM SMD

  • Manufacturer: Murata
  • Part Number: LQM2HPN1R0MJHL
  • Packaging: Cut Tape
  • Quantity: Each
  • Datecode: 1632

Availability: 79 in stock

SKU TSX005D Category Brand:

LQM2HPN1R0MJHL – Specifications

  • Manufacturer: Murata
  • Inductance: 1.0 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 0.06 Ω (Max)
  • Saturation Current: 1.9 A
  • Rated Current: 1.4 A
  • Shielding: Unshielded
  • Mounting Type: Surface Mount (SMD)
  • Package Dimensions: 2.5 mm x 2.0 mm x 0.9 mm
  • Operating Temperature Range: -40°C to +85°C
  • Termination: Solder
Key Features

The Murata LQM2HPN1R0MJHL is a compact and efficient surface-mount inductor designed for modern power management applications. With its low-profile design, it fits seamlessly into space-constrained circuits while maintaining high performance. The inductor features low DC resistance, improving energy efficiency by reducing power loss. Additionally, its high saturation current capability ensures stable operation even under fluctuating loads. Designed for automated assembly, this component is easy to integrate into various manufacturing processes. With its broad operating temperature range of -40°C to +85°C, it remains reliable in both standard and demanding environments.

Applications

The LQM2HPN1R0MJHL is an excellent choice for a variety of power management applications, including:

  • DC-DC Converters – Provides efficient energy conversion in voltage regulation circuits.
  • Consumer Electronics – Used in smartphones, tablets, and wearable devices for compact power management.
  • Industrial Control Systems – Ensures reliable performance in factory automation and embedded systems.
  • Automotive Electronics – Supports advanced driver-assistance systems (ADAS) and infotainment applications.
  • LED Lighting – Enhances efficiency in power supplies for high-performance LED applications.
Product Overview

The Murata LQM2HPN1R0MJHL is a high-performance inductor designed to meet the needs of power management systems. Its 1.0 µH inductance and low DC resistance contribute to improved efficiency and reduced heat generation. The compact size allows for seamless integration into small electronic devices, while the high saturation current ensures stability in dynamic load conditions. Whether used in consumer electronics, industrial applications, or automotive systems, this inductor delivers reliability and efficiency across a wide temperature range.

Contact Us

For inquiries or to check availability, please contact us at 770-870-1760 or email Sales@Cyndtek.com. We look forward to assisting you and ensuring your satisfaction with all of our Cyndtek products.
